Speed Control Actuator: Notes

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

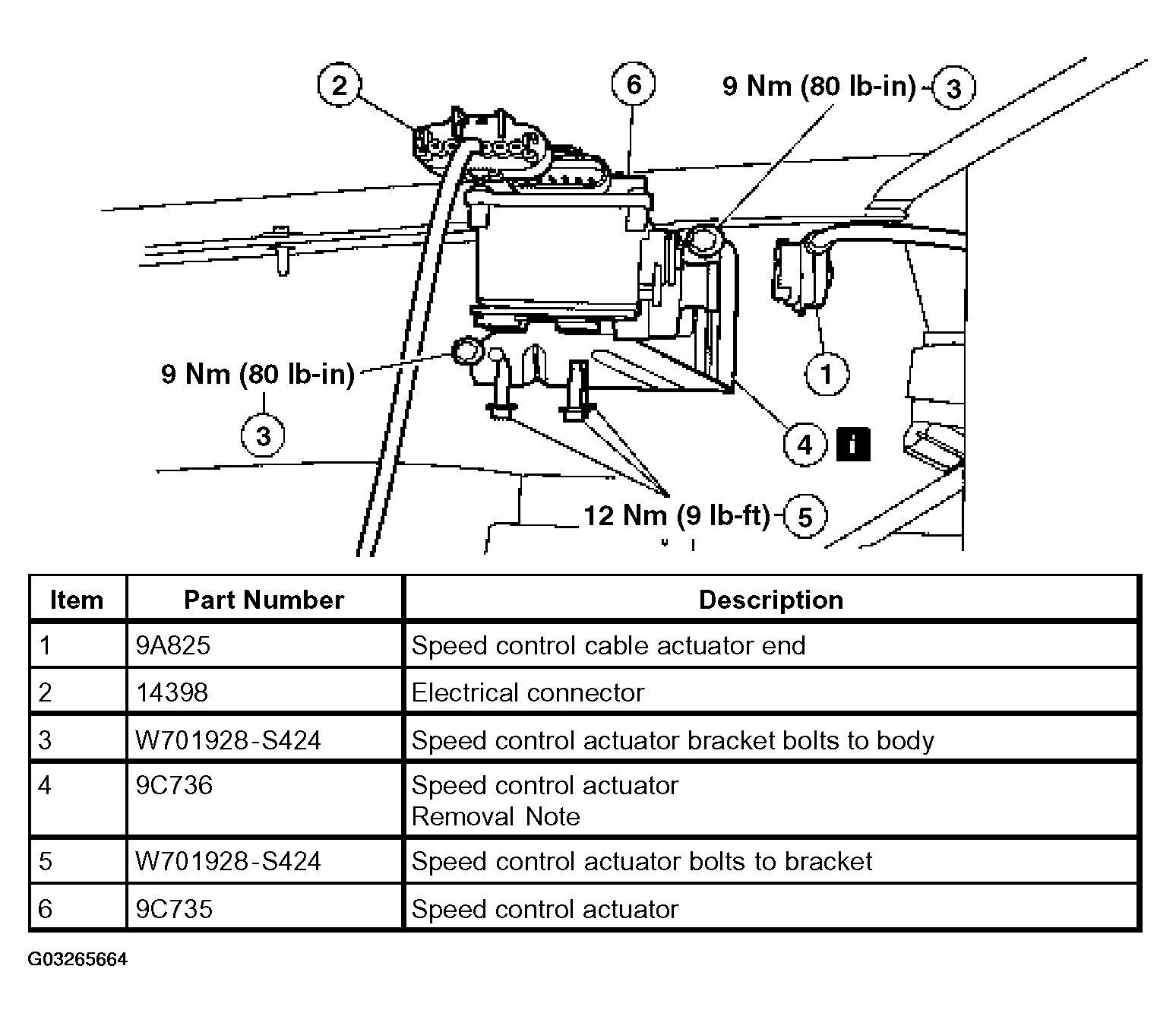

    Fig 1: Removing Speed Control Actuator Components (Items 1-6)
    G03265664Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
