Speed Control Actuator C122

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

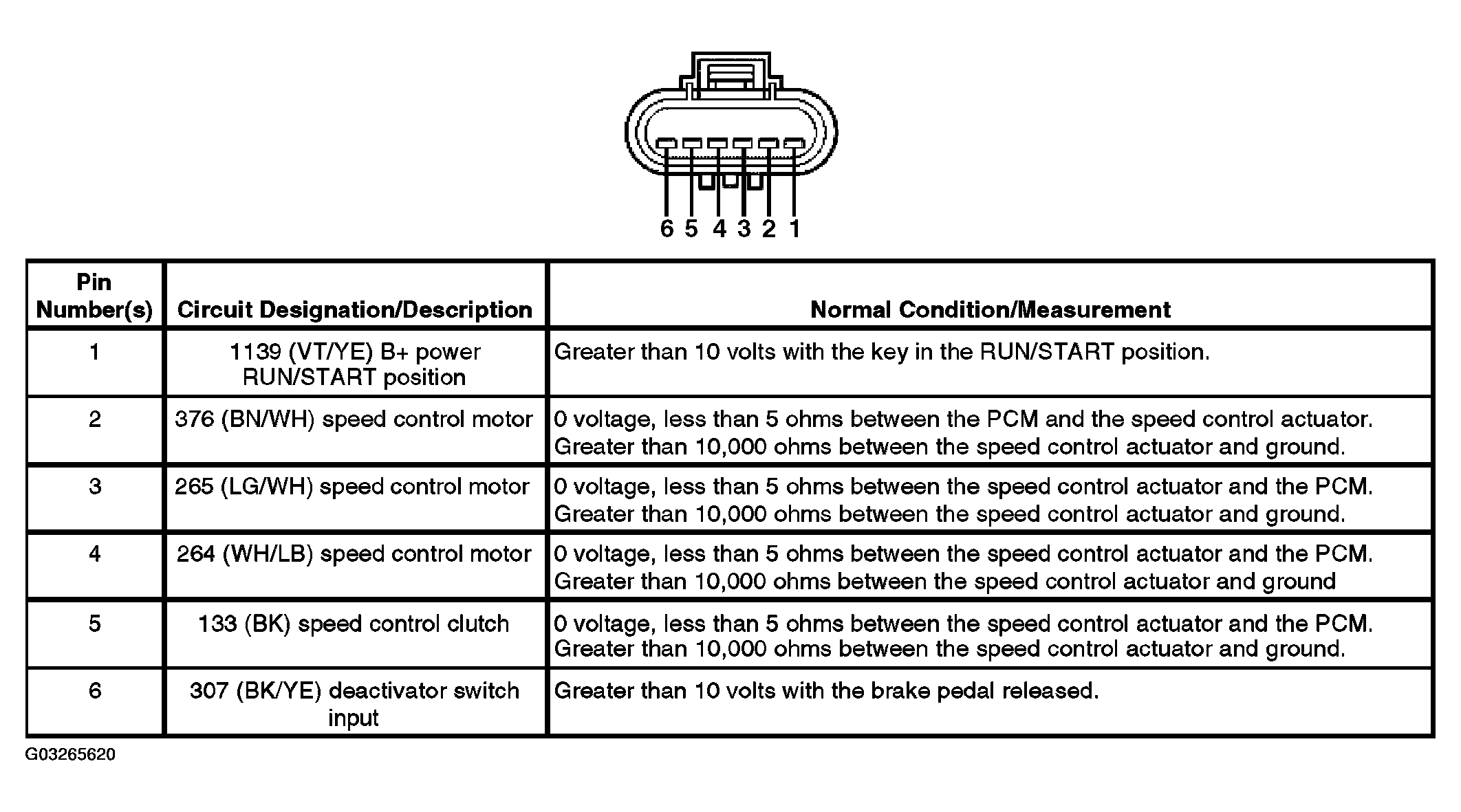

Fig 1: Identifying Speed Control Actuator C122 Connector Pins
G03265620Courtesy of FORD MOTOR CO.
