Accelerator Cable and Bracket: Notes

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine appearance cover.
  2. Remove the parts in the order indicated in the following illustration and table.

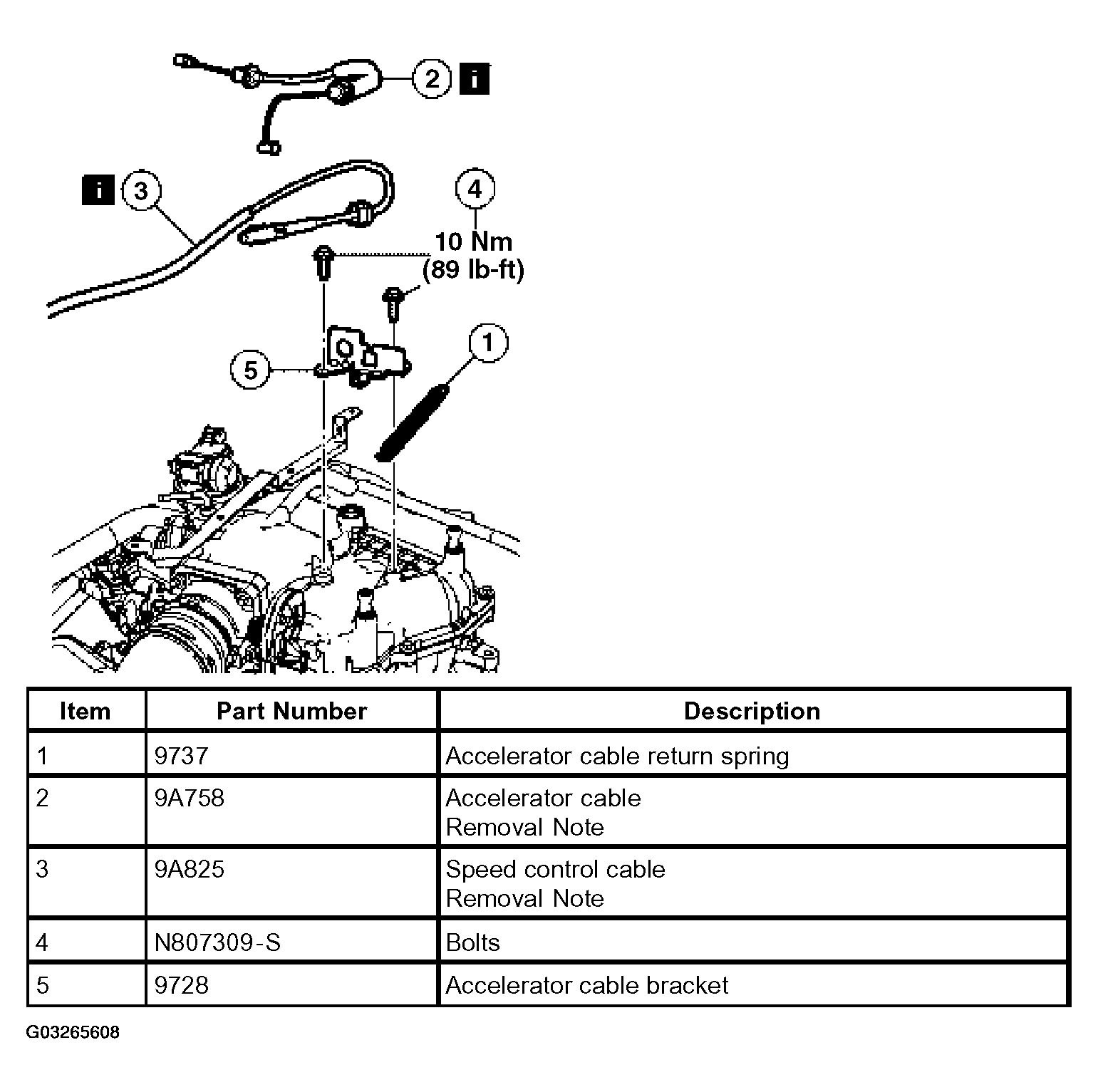

    Fig 1: Removing Accelerator Cable And Bracket
    G03265608Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
