Speed Control Deactivator Switch: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the figure below.

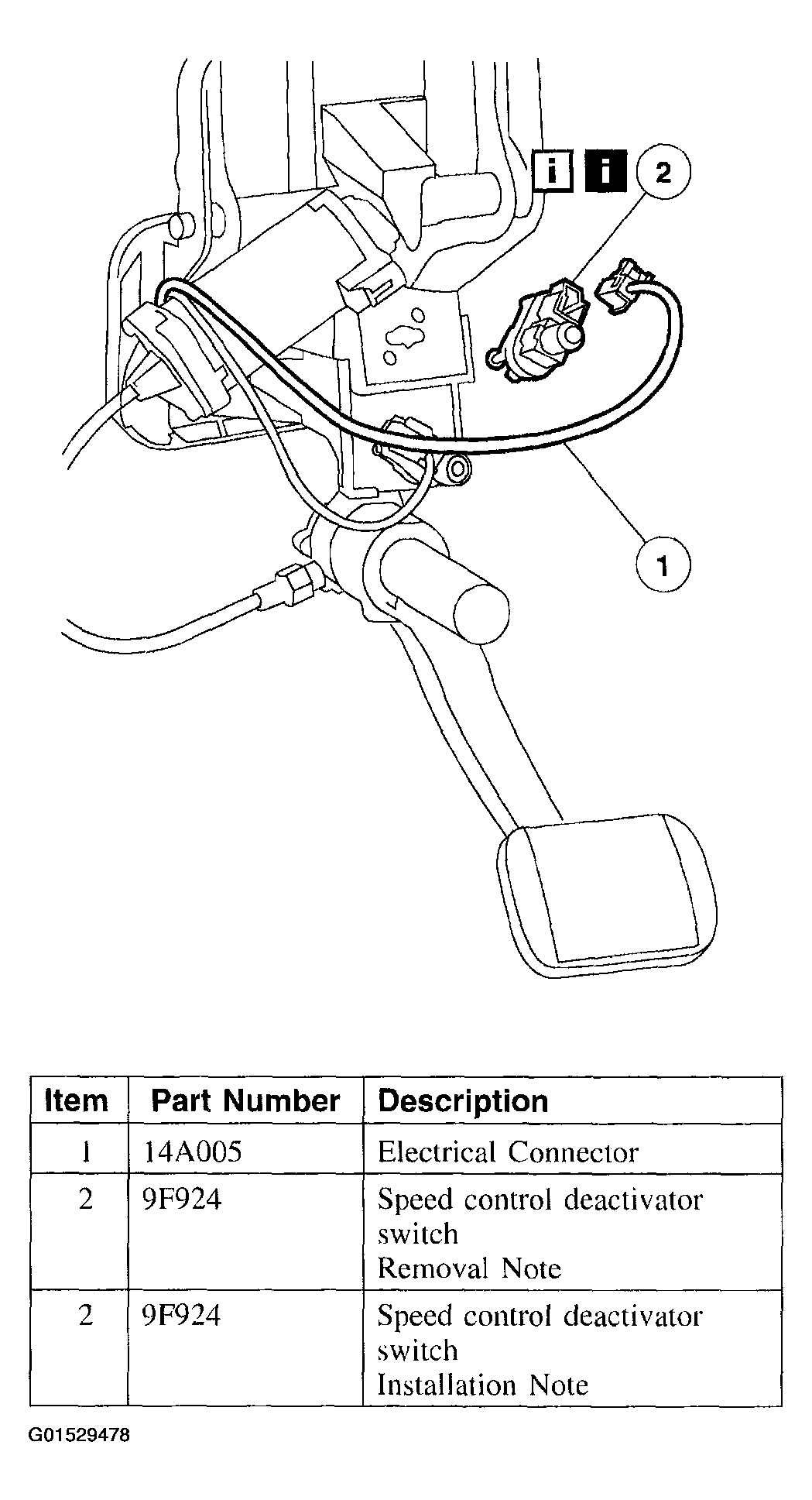

    Fig 1: Speed Control Deactivator Switch Component Removal Sequence
    G01529478Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
