Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool(s)
G01527581Courtesy of FORD MOTOR CO.
  1. Remove the components in the order indicated in the figure below.

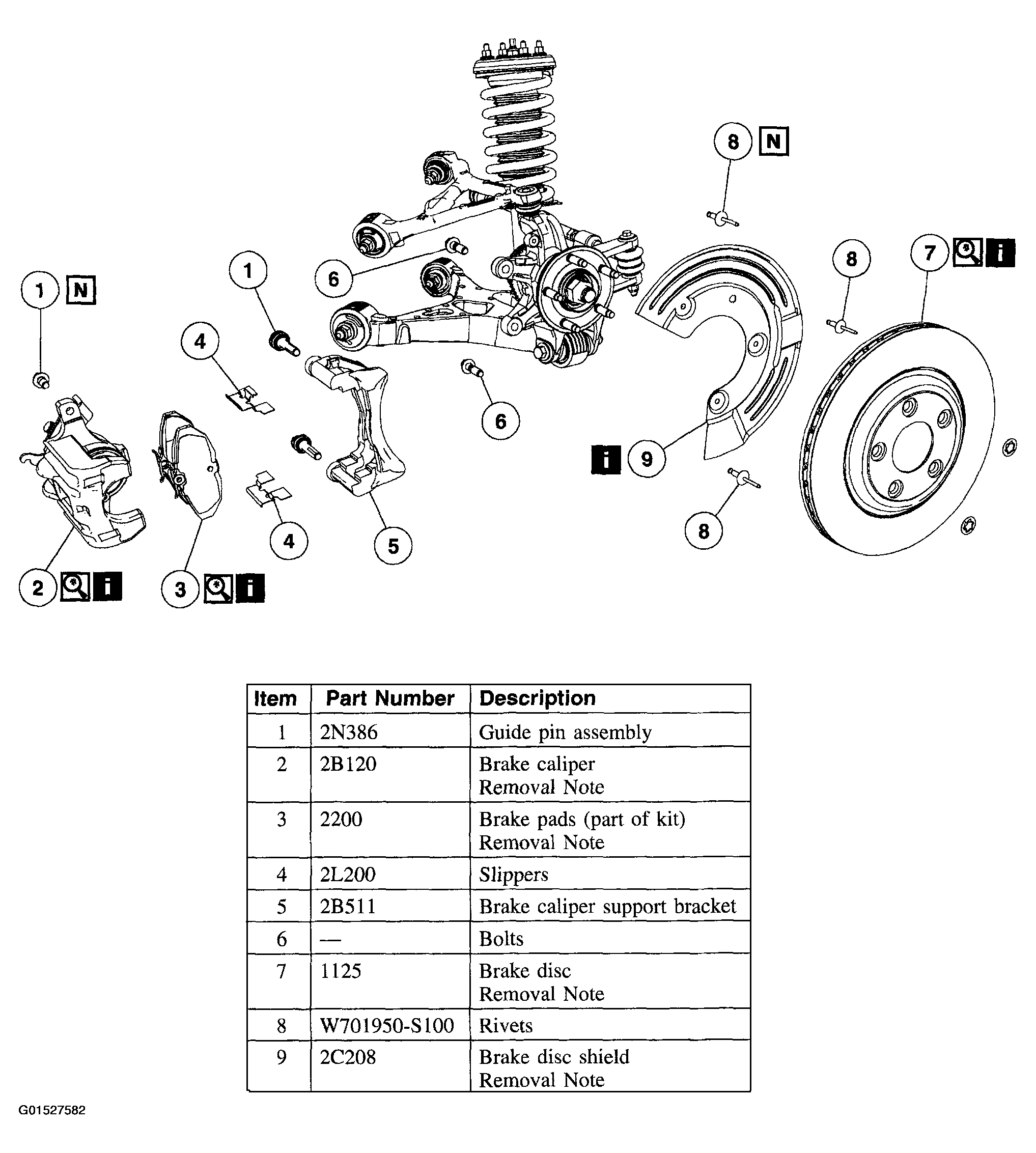

    Fig 2: Exploded View Of Rear Disc Brake
    G01527582Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
