Disassembly and Assembly: Notes
WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the disc brake caliper. For additional information, refer to FRONT DISC BRAKE .
- Secure the disc brake caliper in a vise.

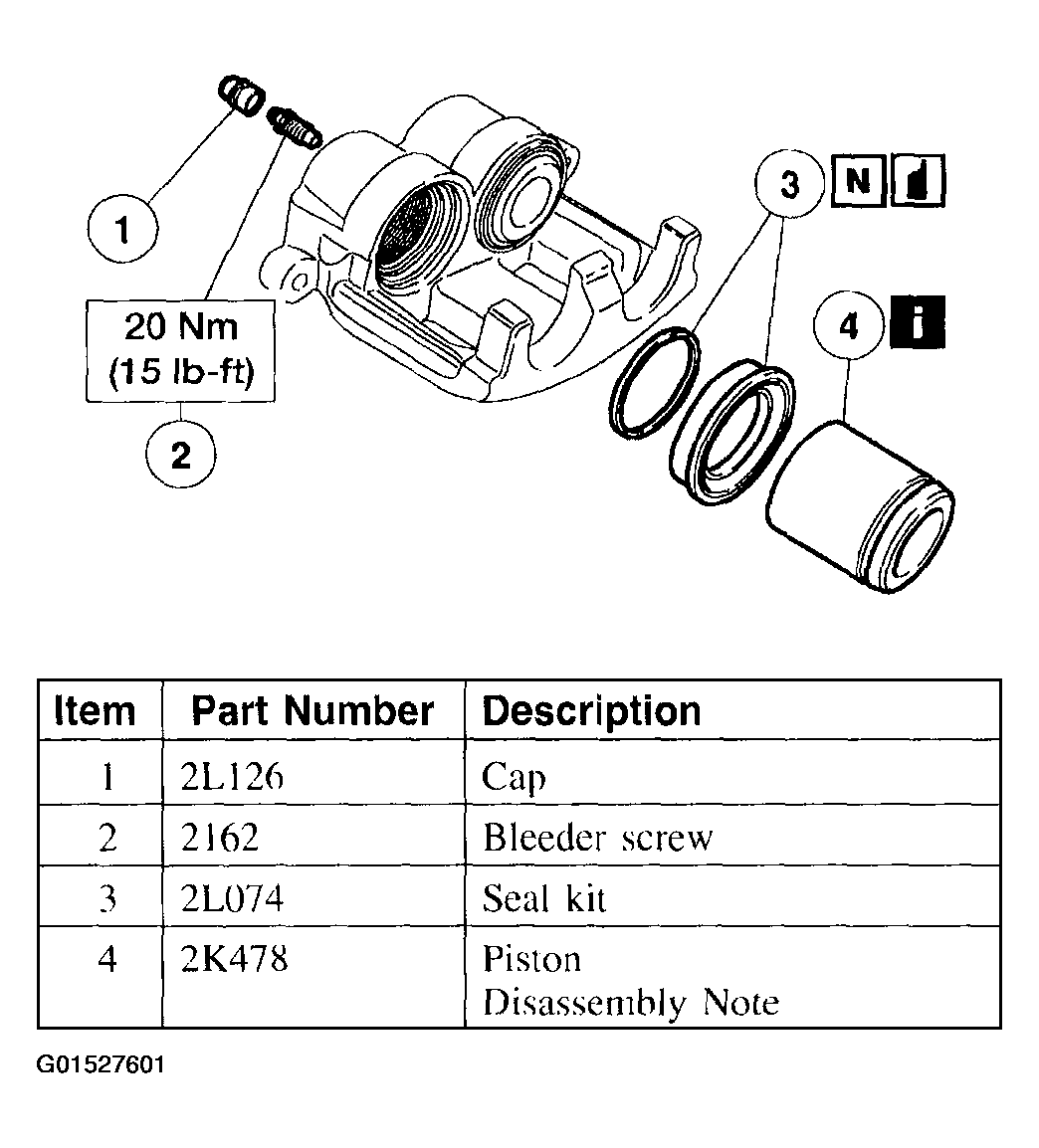

- Disassemble the components in the order indicated in the figure below.
- To assemble, reverse the disassembly procedure.
NOTE:
Do not hone the piston bores. If the bores are excessively scored or corroded, install a new brake disc caliper.
