Air Cleaner Assembly: Notes

Remove the components in the order indicated in the following illustration and table. To remove individual components, carry out only the listed steps

AIR CLEANER COMPONENT REMOVAL STEPS

Component	Steps
Air cleaner outlet pipe	1-6
Air cleaner element	1-4, 6-7 and 10
Air cleaner outlet tube and cover assembly	1-4, 6-7 and 10
Air cleaner	1-4, 6-7 and 10

To install, reverse the removal procedure.

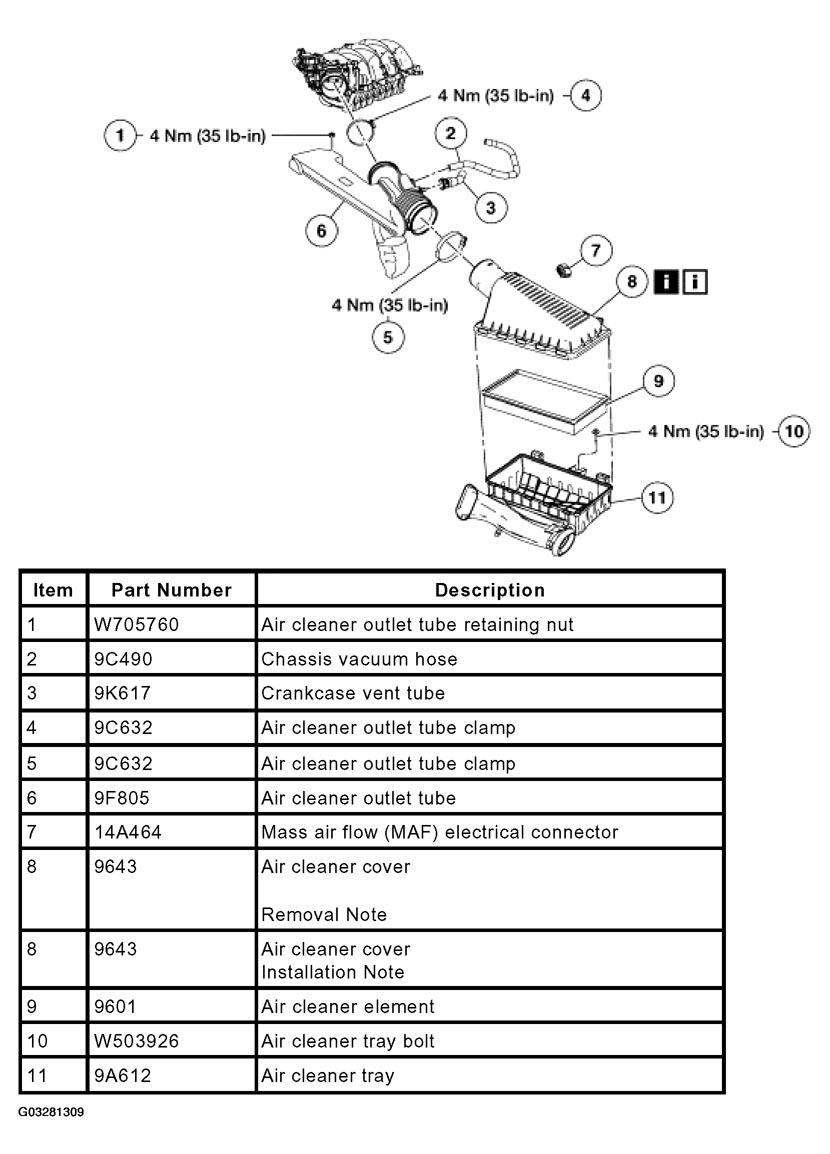

Fig 1: Identifying Air Cleaner Assembly
Courtesy of FORD MOTOR CO.
