Valve Stem Diameter

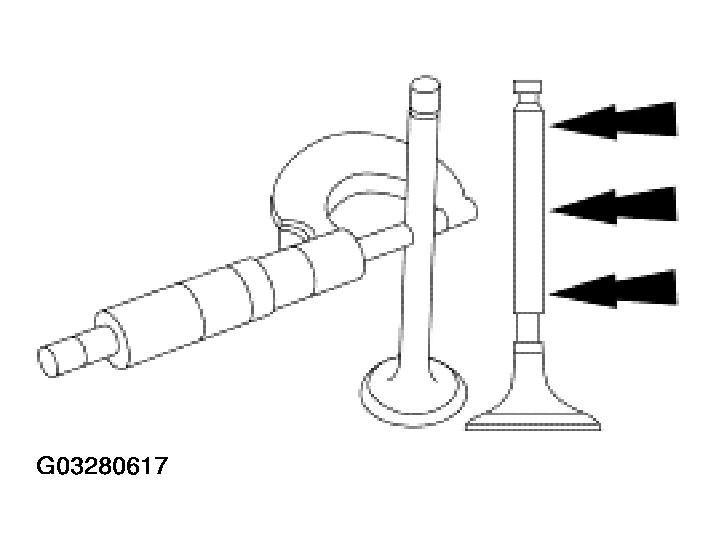

- Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
- Refer to GENERAL SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to ENGINE - 3.9L article.
