Rear Window Glass: Notes

Special Tool(s)

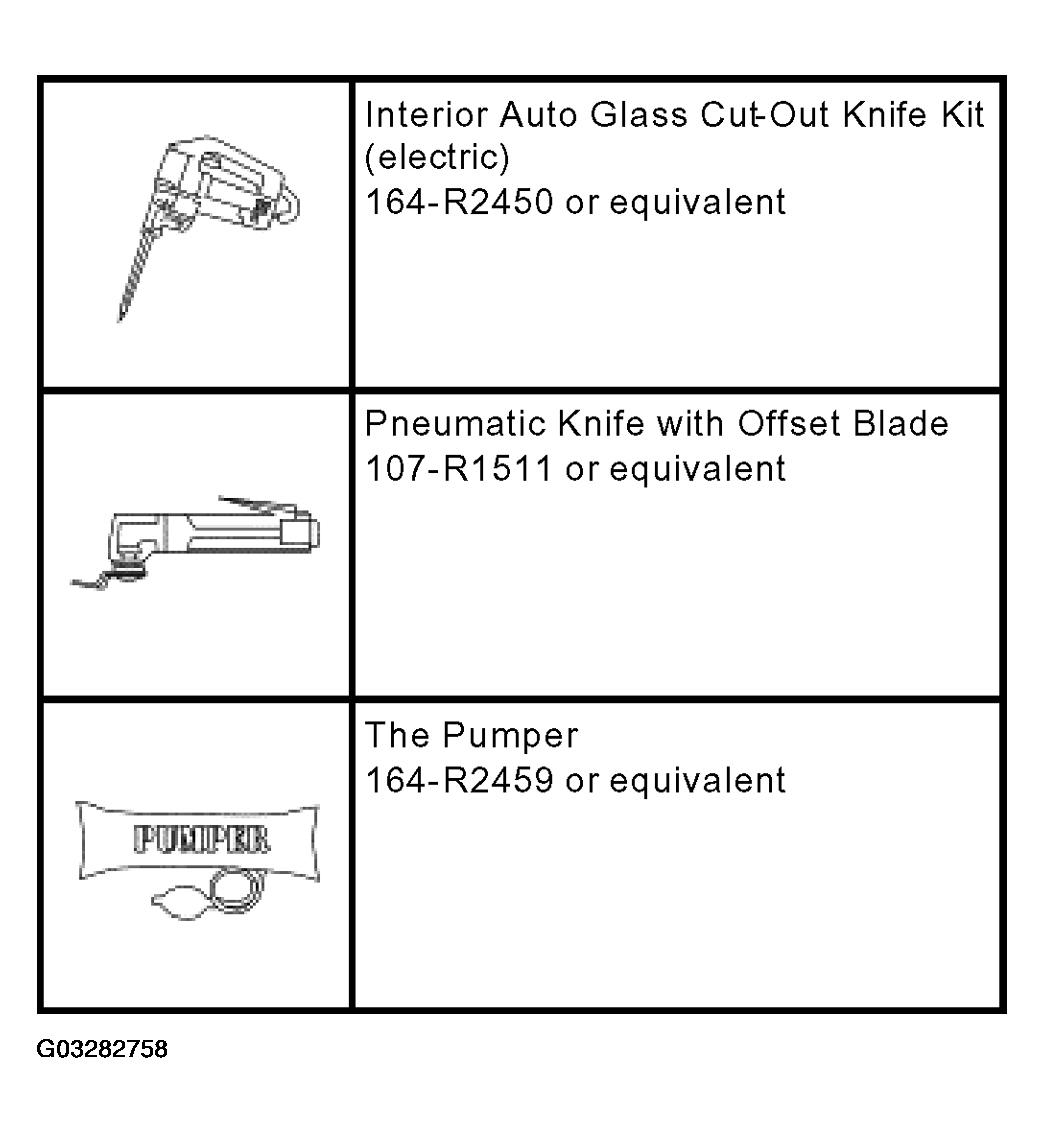

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
Urethane Adhesive Primer Essex U-413	WSB-M2G234-C
Urethane Glass Prep Essex U-401	WSB-M5B280-C
Urethane Glass Primer Essex U-402	WSB-M2G314-B
Urethane Adhesive Essex 400-HV	WSB-M2G316-B

NOTE: For removal and installation of the convertible top rear window glass, refer to CONVERTIBLE TOP ASSEMBLY .

Remove the removable top from the vehicle.
Remove the parts in the order indicated in the following illustration and table.

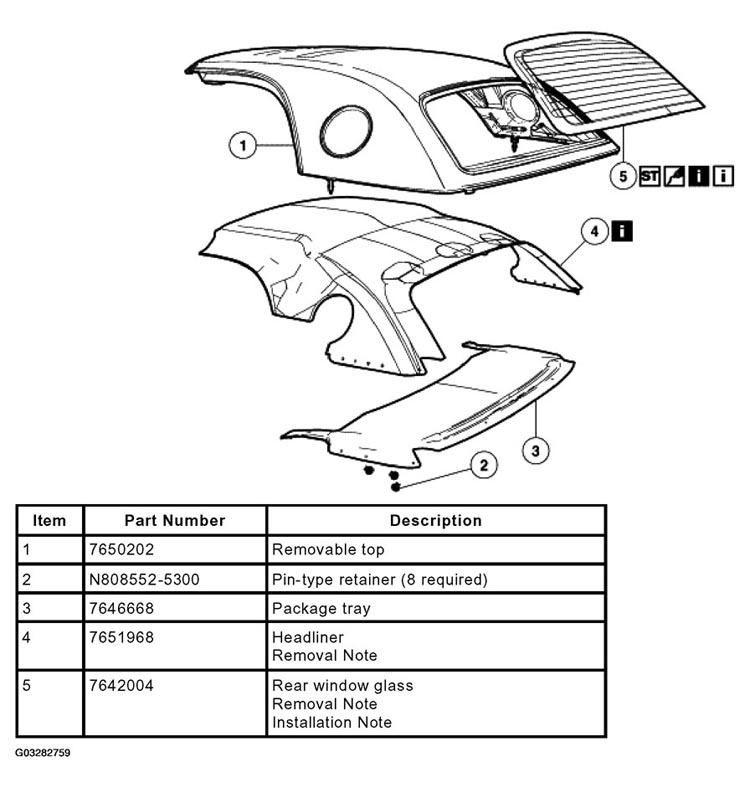

Fig 2: Rear Window Glass Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
