Front Electronic Module (FEM) C201e

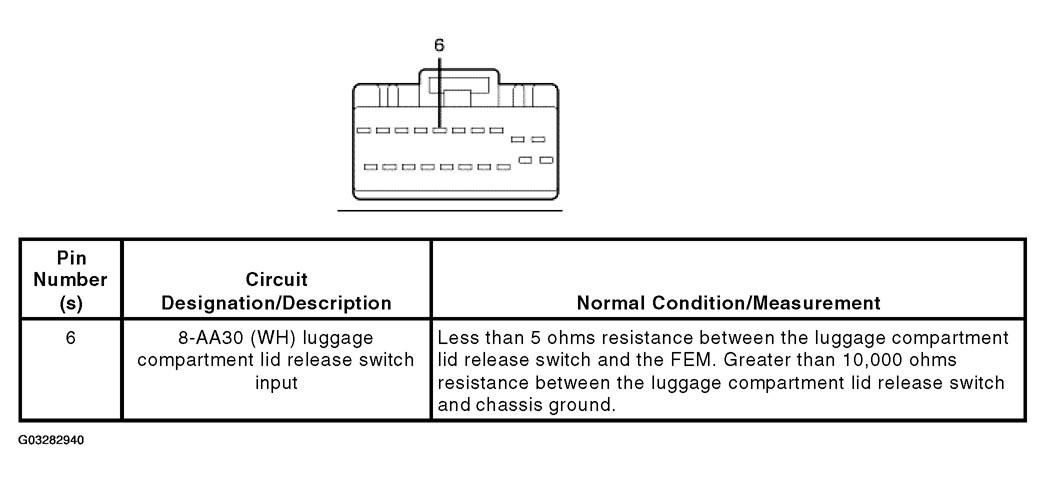

Fig 1: Identifying Front Electronic Module (FEM) C201E
G03282940Courtesy of FORD MOTOR CO.
PIN NUMBERS CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
6 8-AA30 (WH) luggage compartment lid release switch input Less than 5 ohms resistance between the luggage compartment lid release switch and the FEM. Greater than 10,000 ohms resistance between the luggage compartment lid release switch and chassis ground.
