Pinpoint Test A: Accelerator Pedal Is Hard To Push Down

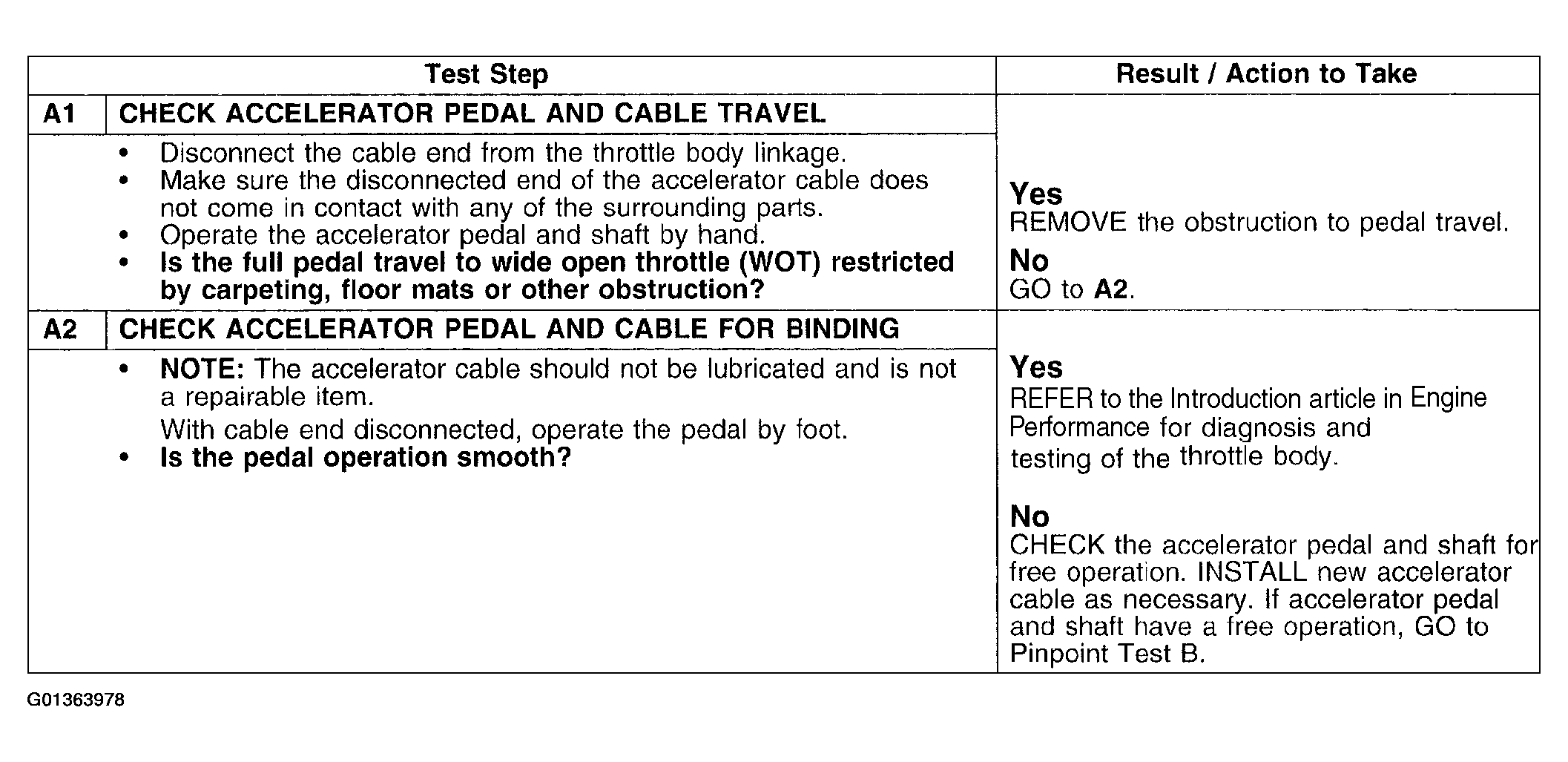

Fig 1: Pinpoint Test A: Accelerator Pedal Is Hard To Push Down (Step A1-A3)

G01363978

Courtesy of FORD MOTOR CO.
