Module Communications Network System
>>
Diagnosis And Testing
>>
Communications Network
>>
Symptom Chart
Symptom Chart

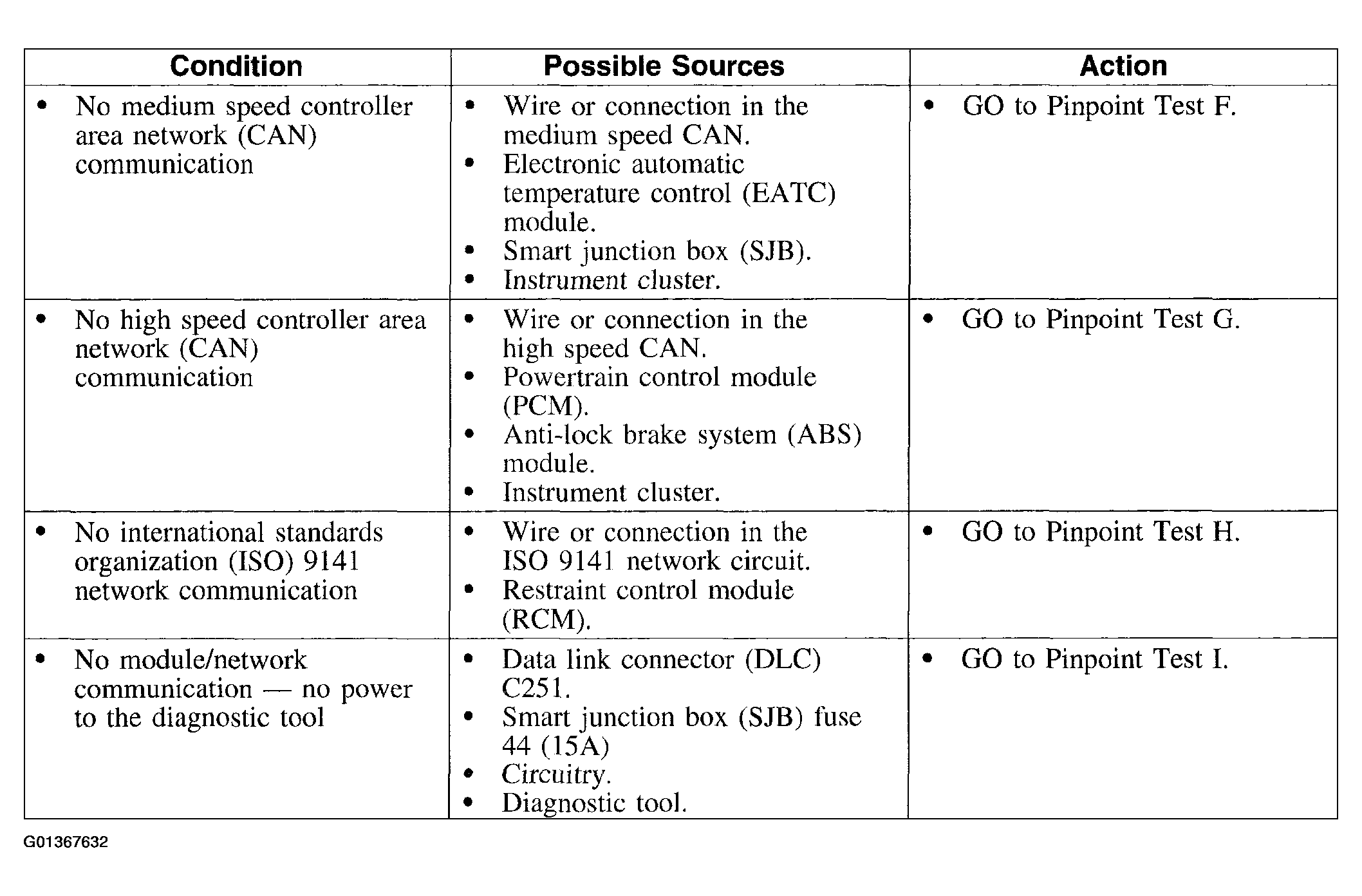

Fig 1: Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

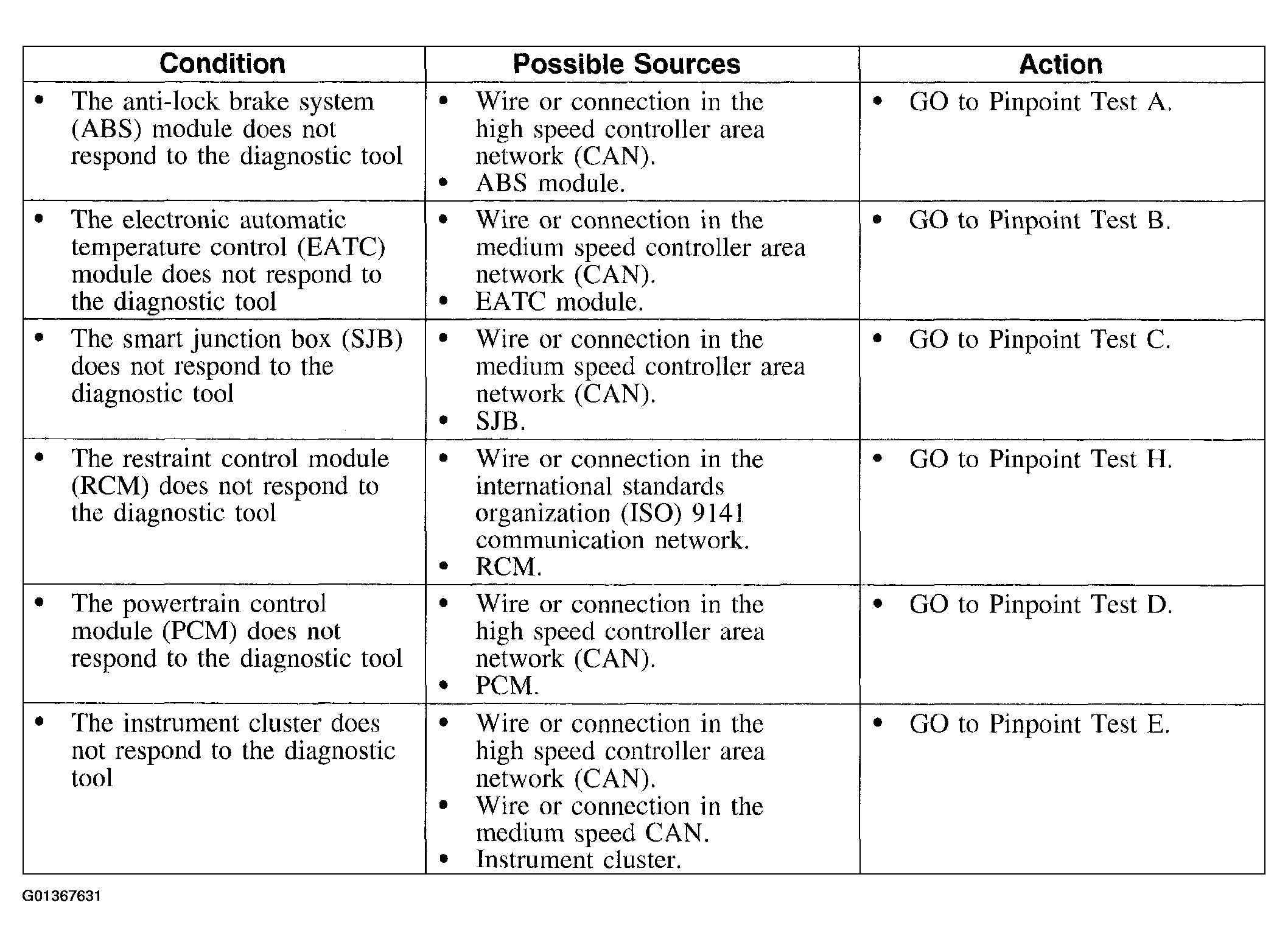

Fig 2: Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
