Multifunction Switch, Wiper/Washer Portion

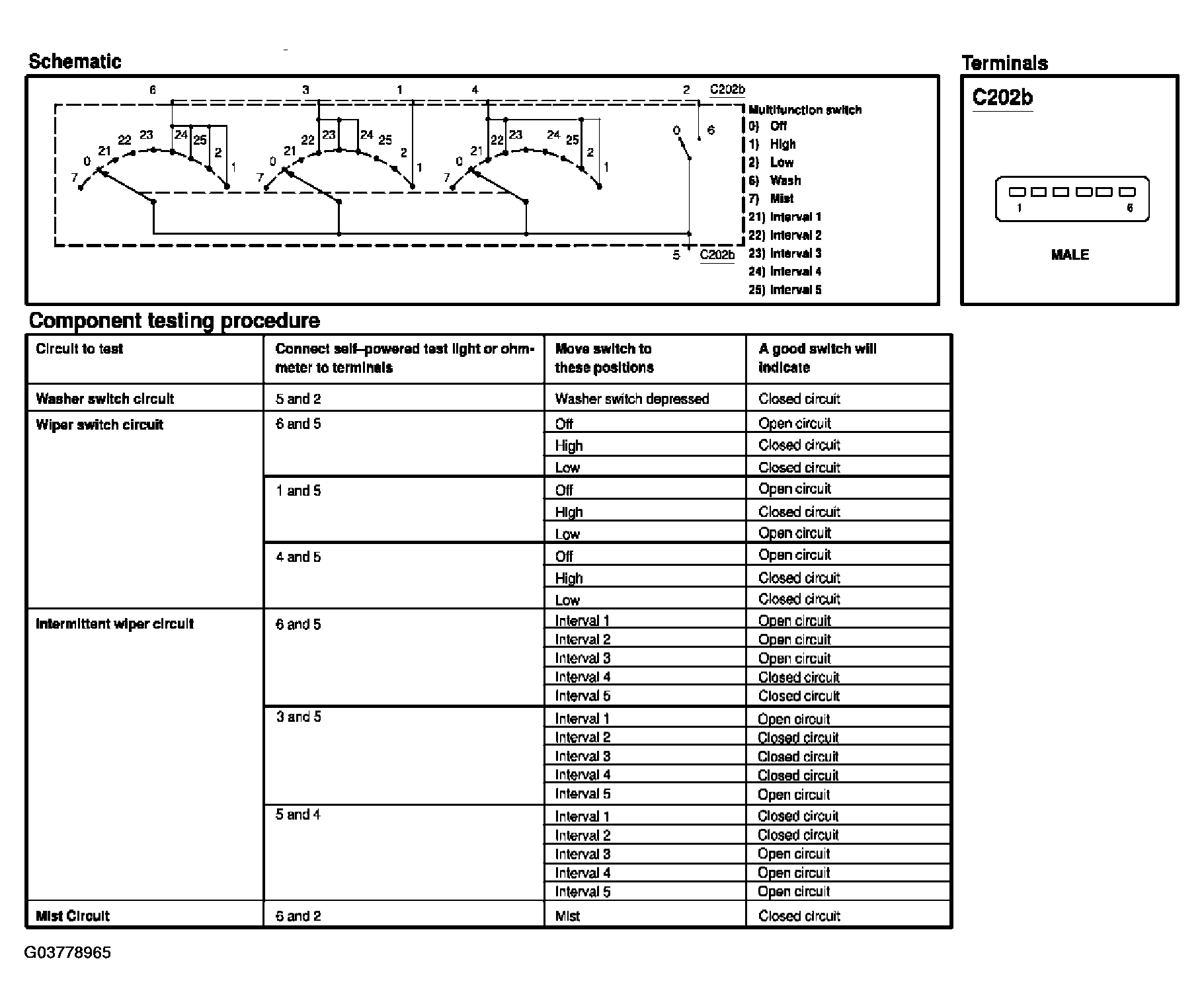

Fig 1: Testing Multifunction Switch, Wiper/Washer Portion

G03778965

Courtesy of FORD MOTOR CO.
