Digital Transmission Range (TR) Sensor: Removal

Place the transaxle range selector lever in NEUTRAL.

Fig 1: Placing Transaxle Range Selector Lever In Neutral
Courtesy of FORD MOTOR CO.
Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .

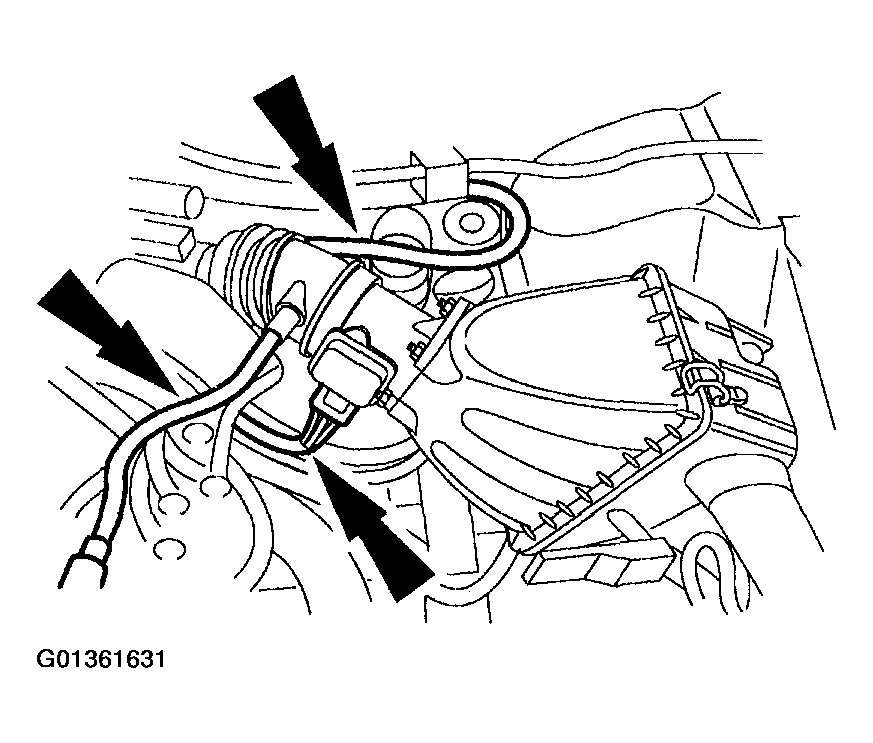

Disconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 2: Disconnecting Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.

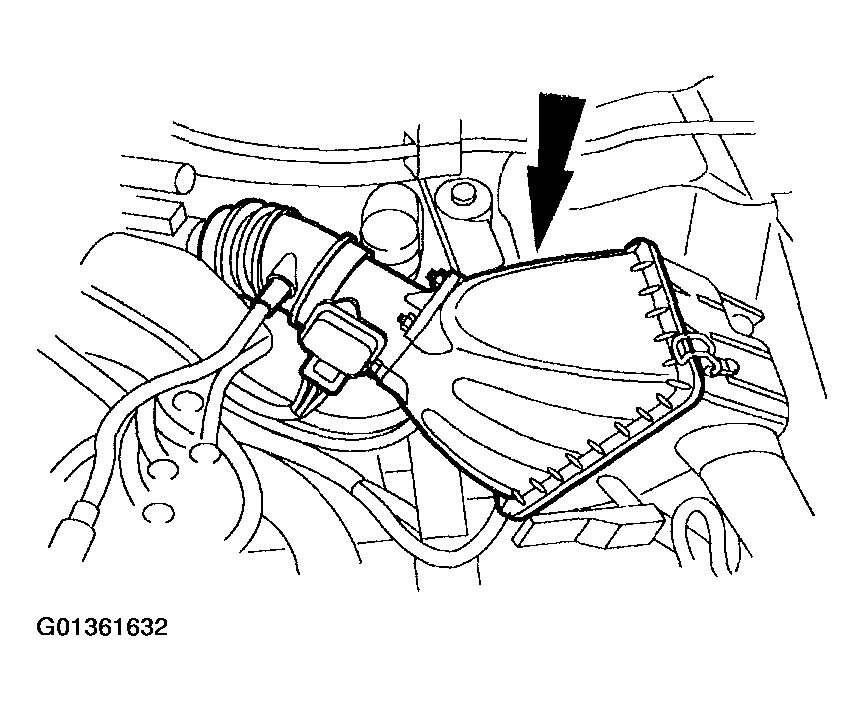

Remove the engine air cleaner.

Fig 3: Removing Engine Air Cleaner
Courtesy of FORD MOTOR CO.

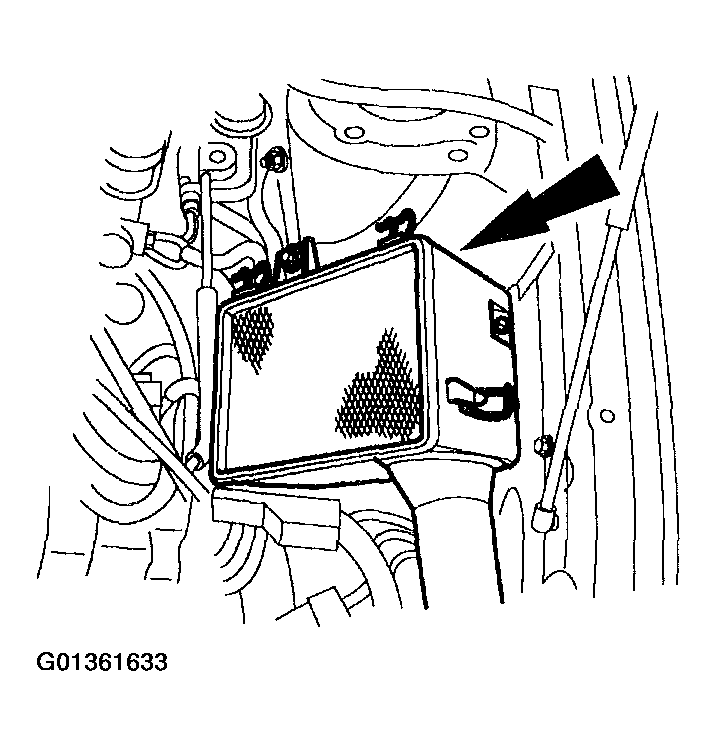

Remove the air filter assembly.

Fig 4: Removing Air Filter Assembly
Courtesy of FORD MOTOR CO.

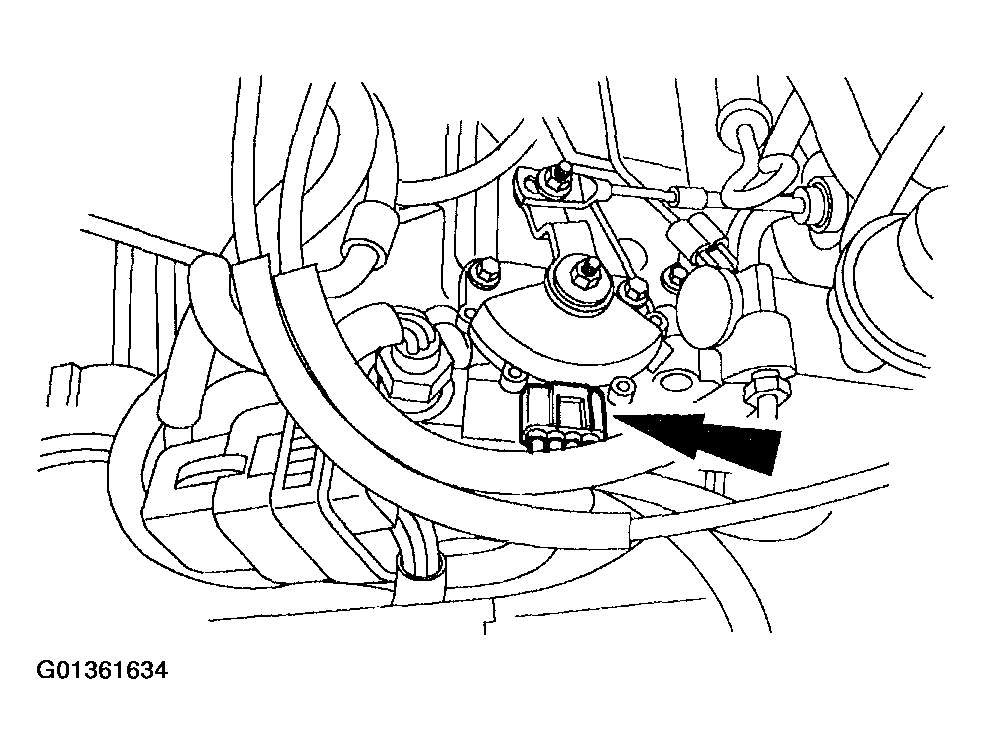

Disconnect the connector.

Fig 5: Disconnecting Connector
Courtesy of FORD MOTOR CO.

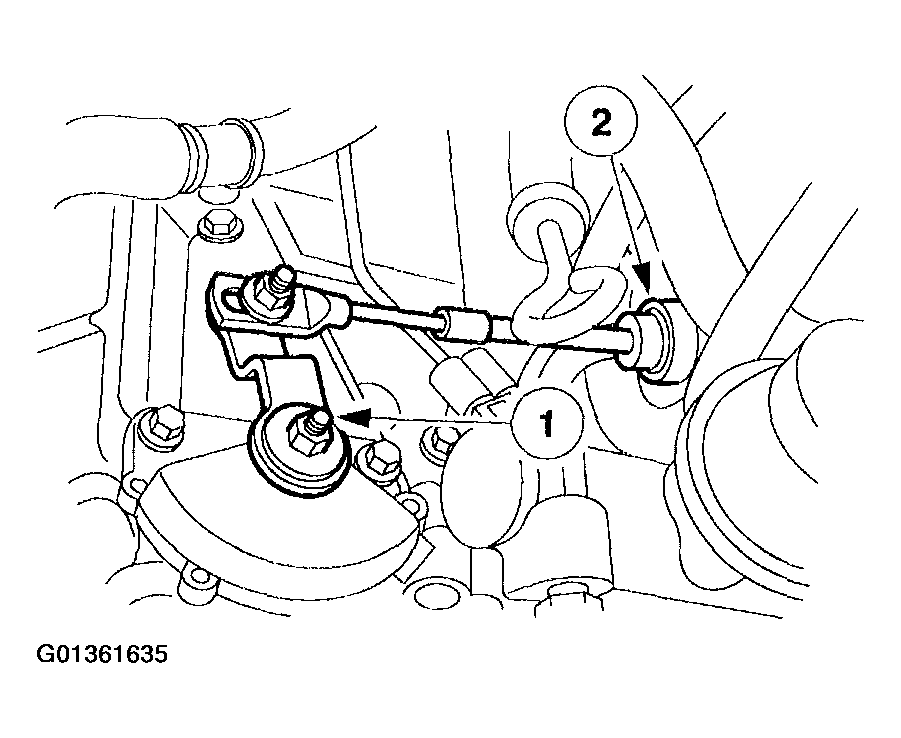

Remove the manual control lever and cable.
1. Remove the nut.
2. Remove the manual control lever and cable.

  Fig 6: Removing Manual Control Lever And Cable
  Courtesy of FORD MOTOR CO.

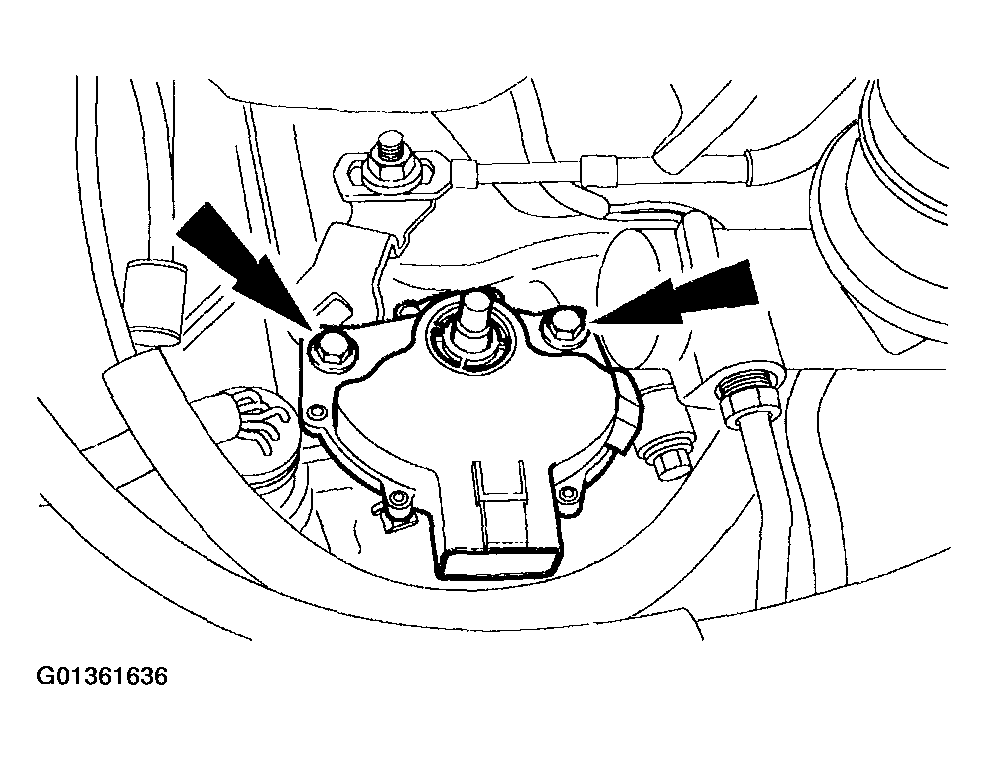

Remove the digital TR sensor.

Fig 7: Removing Digital TR Sensor
Courtesy of FORD MOTOR CO.
