Pinpoint Tests - Non OSC Equipped Vehicles: Notes

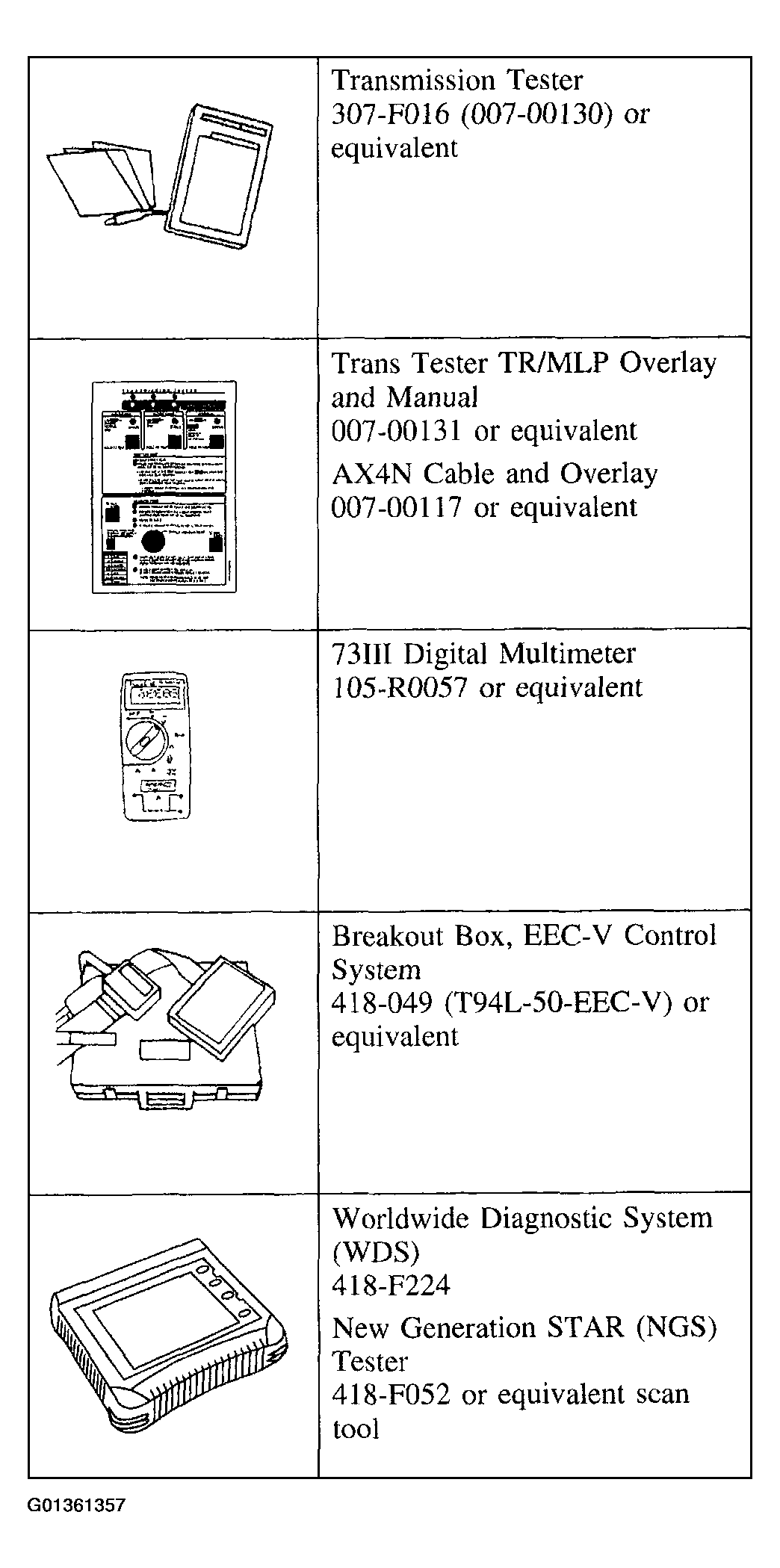

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Any time an electrical connector or solenoid body is disconnected, inspect the connector for terminal condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install new components as required.
