Selector Lever Bezel: Removal

  1. Remove the console bezel.
    • Carefully pry the bezel from the rear and lift.

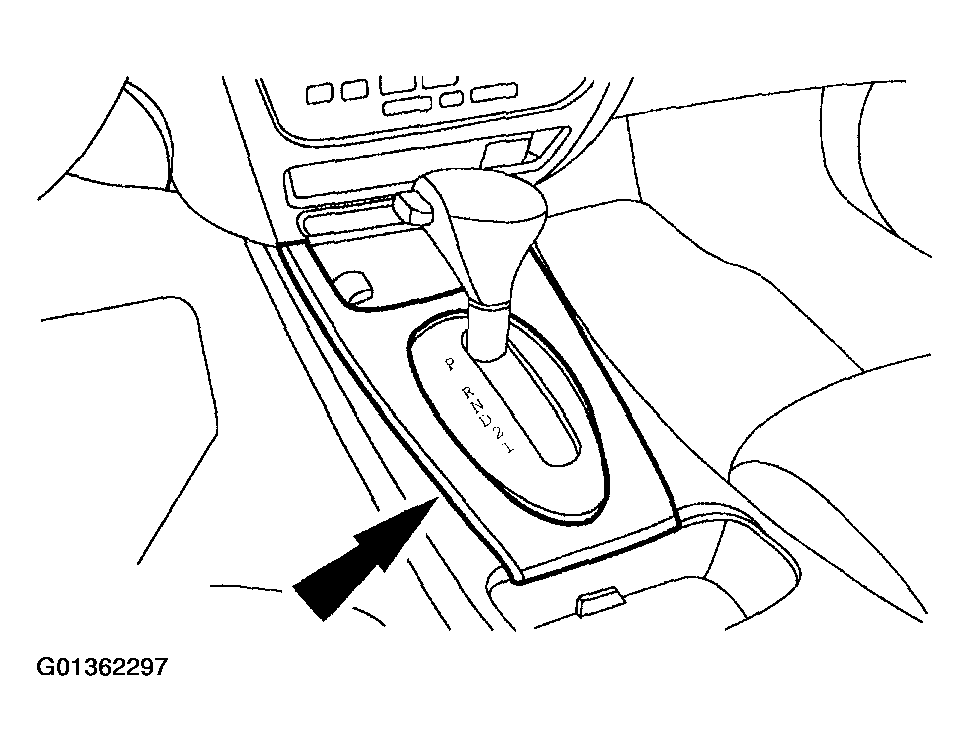

      Fig 1: Prying Bezel From Rear And Lift
      G01362297Courtesy of FORD MOTOR CO.
  2. Remove the shift knob. For additional information, refer to TRANSMISSION SELECTOR LEVER KNOB .
  3. Remove the retaining clips, then, pinching the retaining fingers, lift upward on the selector lever bezel slightly.
    Fig 2: Removing Retaining Clips
    G01362298Courtesy of FORD MOTOR CO.
  4. Disconnect the selector lever bezel light bulbs and sockets.

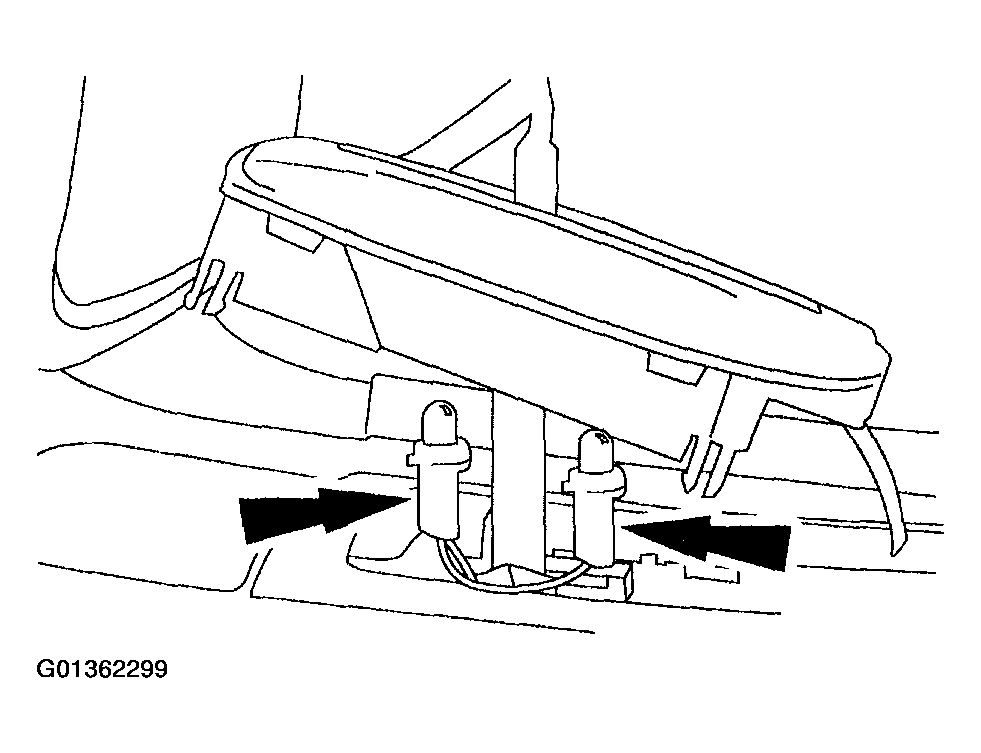

    Fig 3: Disconnecting Selector Lever Bezel Light Bulbs And Sockets
    G01362299Courtesy of FORD MOTOR CO.
  5. Remove the selector lever bezel.
