Automatic Transmission Cooling
>>
Diagnosis And Testing
>>
Transaxle Cooling
>>
Symptom Chart
Symptom Chart

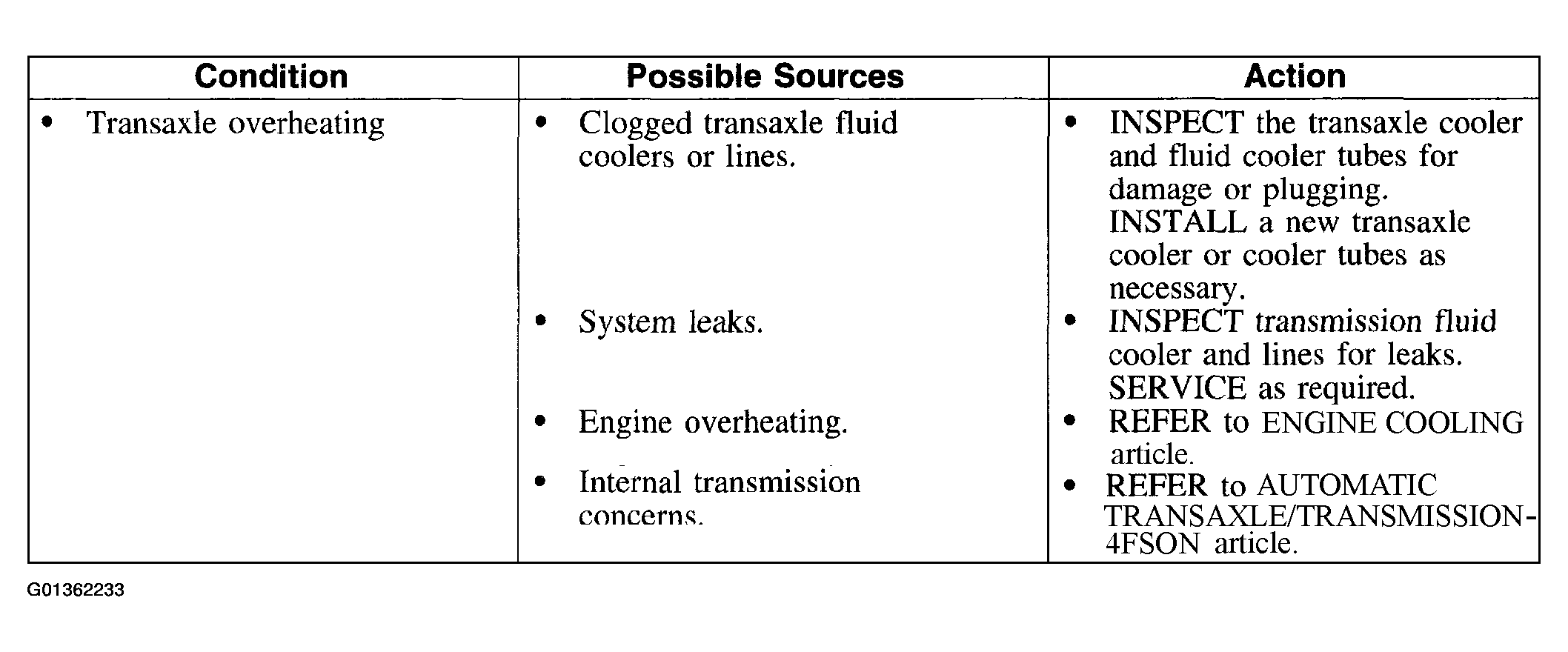

Fig 1: Problem Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Problem Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
