Smart Junction Box
NOTE:

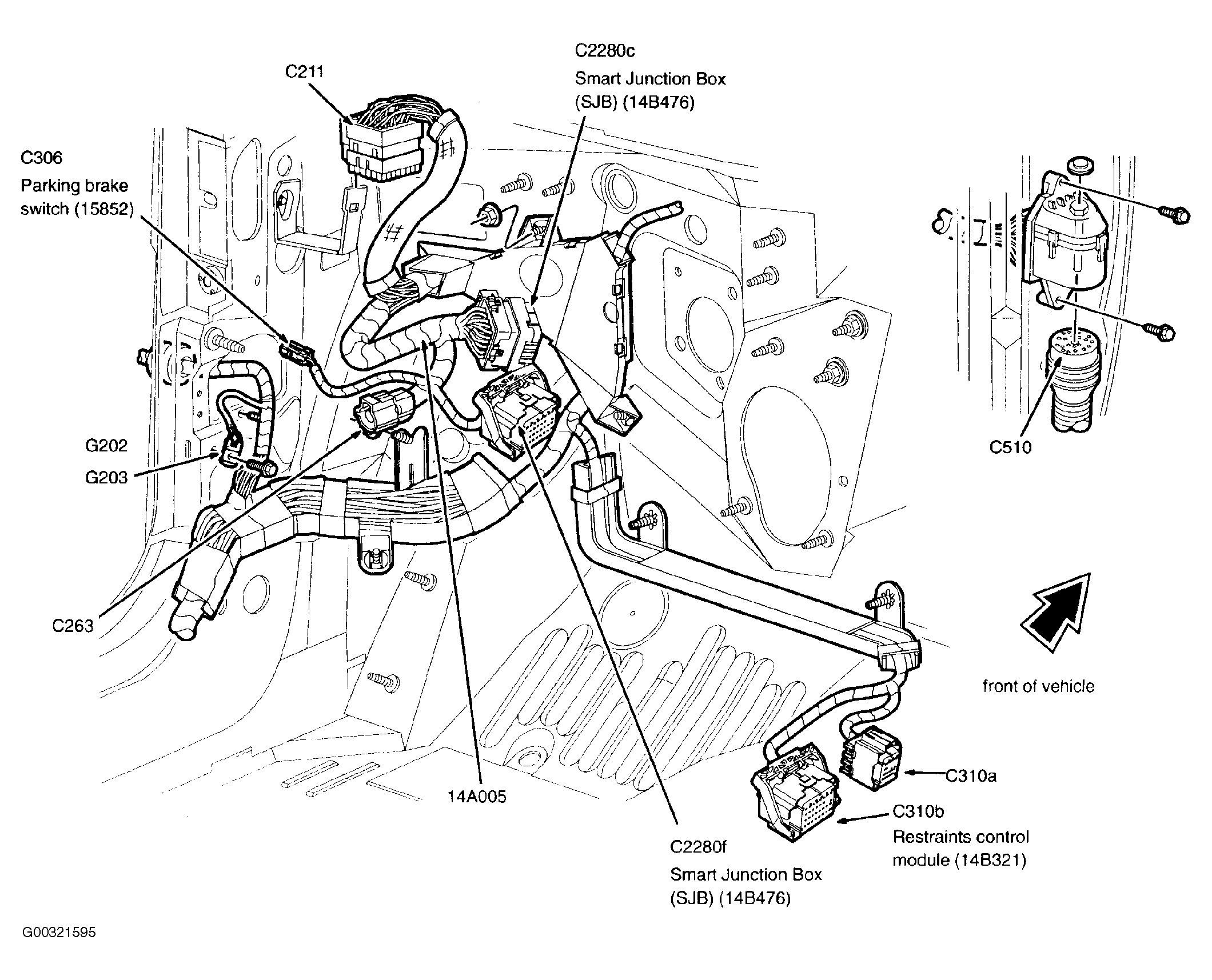

Smart junction box is located under driver's side of instrument panel. See Fig 1.

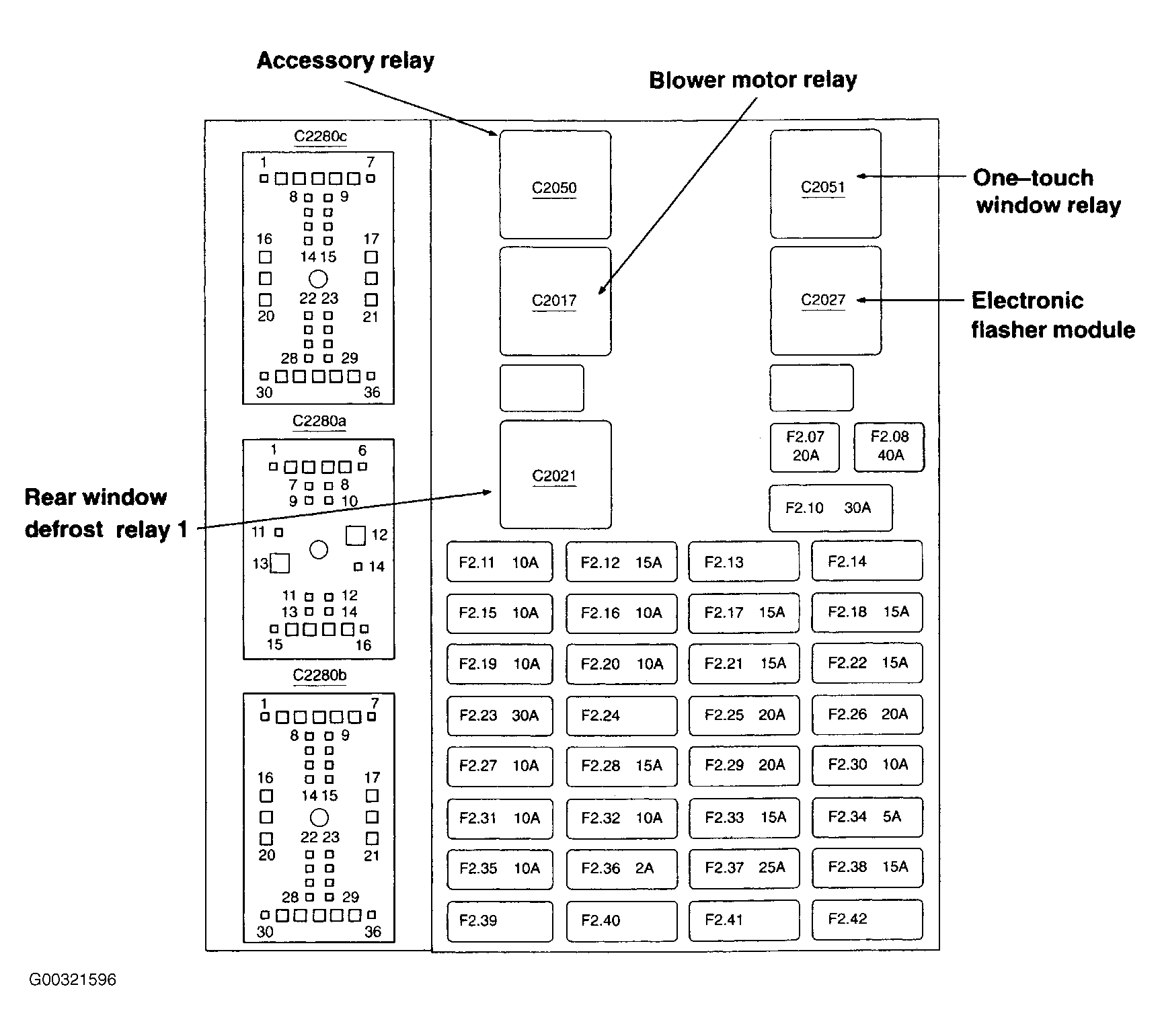

SMART JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C2021 | Rear window defrost relay 1 |
| C2050 | Accessory Relay |
| C2017 | Blower motor relay |
| C2051 | One-touch window relay |
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F2.07 | 20 | Rear window defrost relay |
| F2.08 | 40 | Blower motor relay |
| F2.10 | 30 c.b. | Accessory relay, Adjustable pedal switch (9G604), Seat adjust switch |
| F2.11 | 10 | Headlamp, left (13008), Low beam |
| F2.12 | 15 | Headlamp, right (13008), Headlamp, left (13008), High beams |
| F2.13 | - | not used |
| F2.14 | - | not used |
| F2.15 | 10 | Headlamp, right (13008), Low beam |
| F2.16 | 10 | Fog lamp relay |
| F2.17 | 15 | Deactivator switch (9F924), Brake pedal position switch (13480) |
| F2.18 | 15 | Autolamp park relay, Main light switch (11654) |
| F2.19 | 10 | Integrated control panel (18C858), Heated mirrors |
| F2.20 | 10 | Restraints control module (14B321), Seat weight sensor module (14B422) |
| F2.21 | 15 | Digital Transmission Range (DTR) sensor (7F293) |
| F2.22 | 15 | Windshield washer relay, Rear wiper motor assembly (17764), Rear window washer pump motor (17404), Rear window wiper/washer switch (17A406), Integrated control panel (18C858), Electrochromatic inside mirror unit (17700), Instrument cluster (10849), Smart Junction Box (SJB) (14B476), Hot in Run or Ace |
| F2.23 | 30 | Wiper run/park relay, Wiper high/low relay, Windshield wiper motor (17500) |
| F2.24 | - | not used |
| F2.25 | 20 | Cigar lighter, front (15055) |
| F2.26 | 20 | Door lock relay, Door unlock relay, Driver door unlock relay, Liftgate un lock relay |
| F2.27 | 10 | Rear window defrost relay, Speed control servo (9C735), ABS control module (2C346), Brake shift interlock (3Z719), Traction control switch (2C355), Temperature blend door actuator (19E616), Function selector switch assembly (19B888) |
| F2.28 | 15 | Digital Transmission Range (DTR) sensor (7F293), Multifunction switch (13K359) |
| F2.29 | 20 | Power point (19N236) |
| F2.30 | 10 | Interior lamps relay, Battery saver relay, Luggage compartment lamp (13A756), Exterior rear view mirror switch (17B676), Pulse stretcher module, Power antenna module (19A018) |
| F2.31 | 10 | Remote Climate Control (RCC) module (18C612), Blower motor relay, Integrated control panel (18C858), Puddle lamp relay, Low charge protection switch |
| F2.32 | 10 | Instrument cluster (10849), Integrated control panel (18C858), Flexible fuel sensor module (14A069), Smart Junction Box (SJB) (14B476), Hot in Start or Run |
| F2.33 | 15 | Remote Climate Control (RCC) module (18C612), Instrument cluster (10849), Multifunction switch (13K359), Integrated control panel (18C858), Smart Junction Box (SJB) (14B476) B+ |
| F2.34 | 5 | Smart Junction Box (SJB) (14B476), Hot in Start |
| F2.35 | 10 | Main light switch (11654) to Illumination |
| F2.36 | 2 | PCM power relay |
| F2.37 | 25 | Autolamp headlamp relay, Multifunction switch (13K359), DRL |
| F2.38 | 15 | Data Link Connector (DLC) (14489), Horn relay |
| F2.39 | - | not used |
| F2.40 | - | not used |
| F2.41 | - | not used |
| F2.42 | - | not used |
