Relay Center Box 1

Relay center box 1 is located in the front left corner of engine compartment. See Fig 1.

Fig 1: Left Front Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

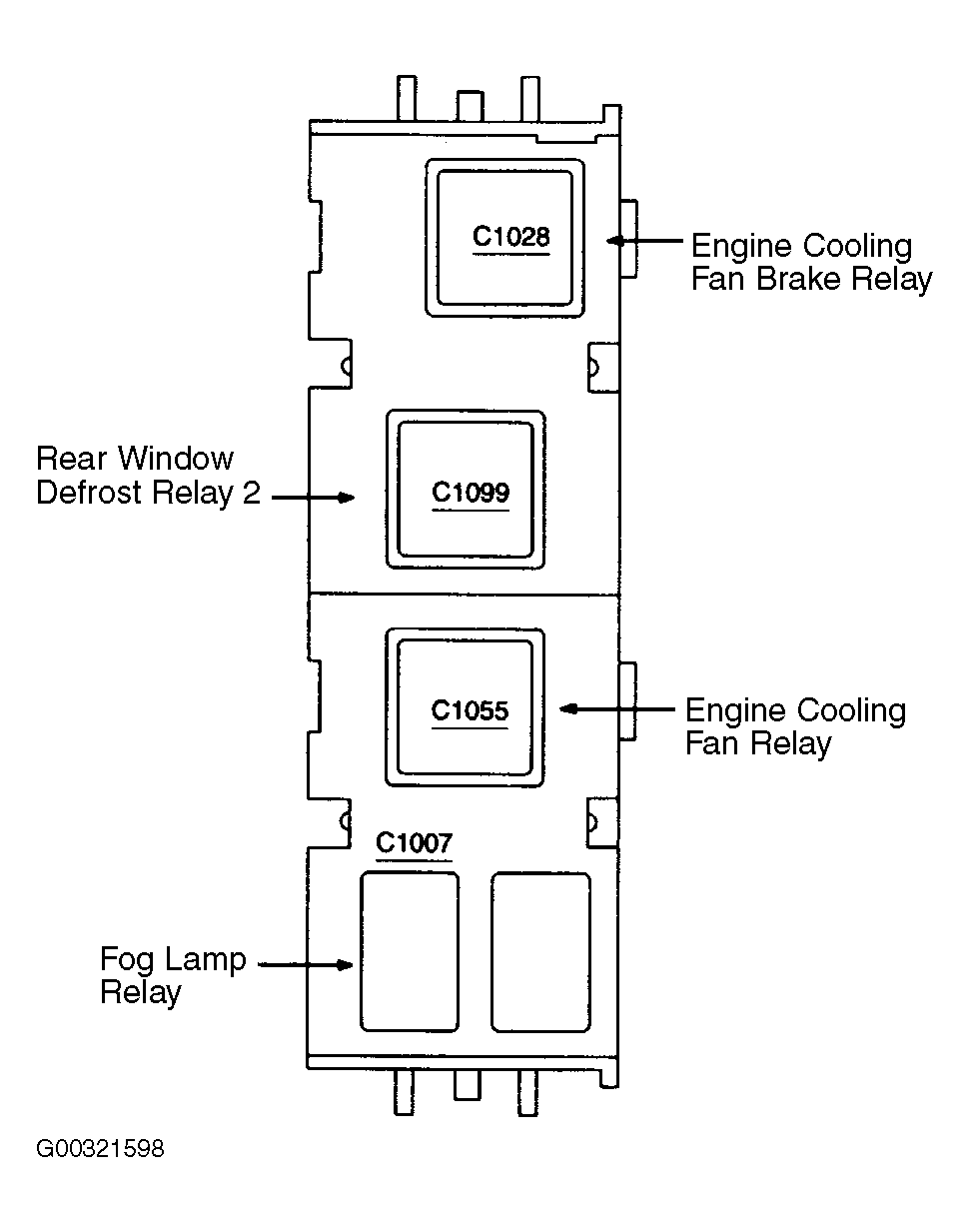

Fig 2: Identifying Relay Center Box 1 Components

Courtesy of FORD MOTOR CO.

RELAY CENTER BOX 1 RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C1007	Fog Lamp Relay
C1099	Rear Window Defrost Relay 2
C1028	Engine Cooling Fan Brake Relay
C1055	Engine Cooling Fan Relay
