Pinpoint Test E: No Communication With The Remote Climate Control Module - EATC

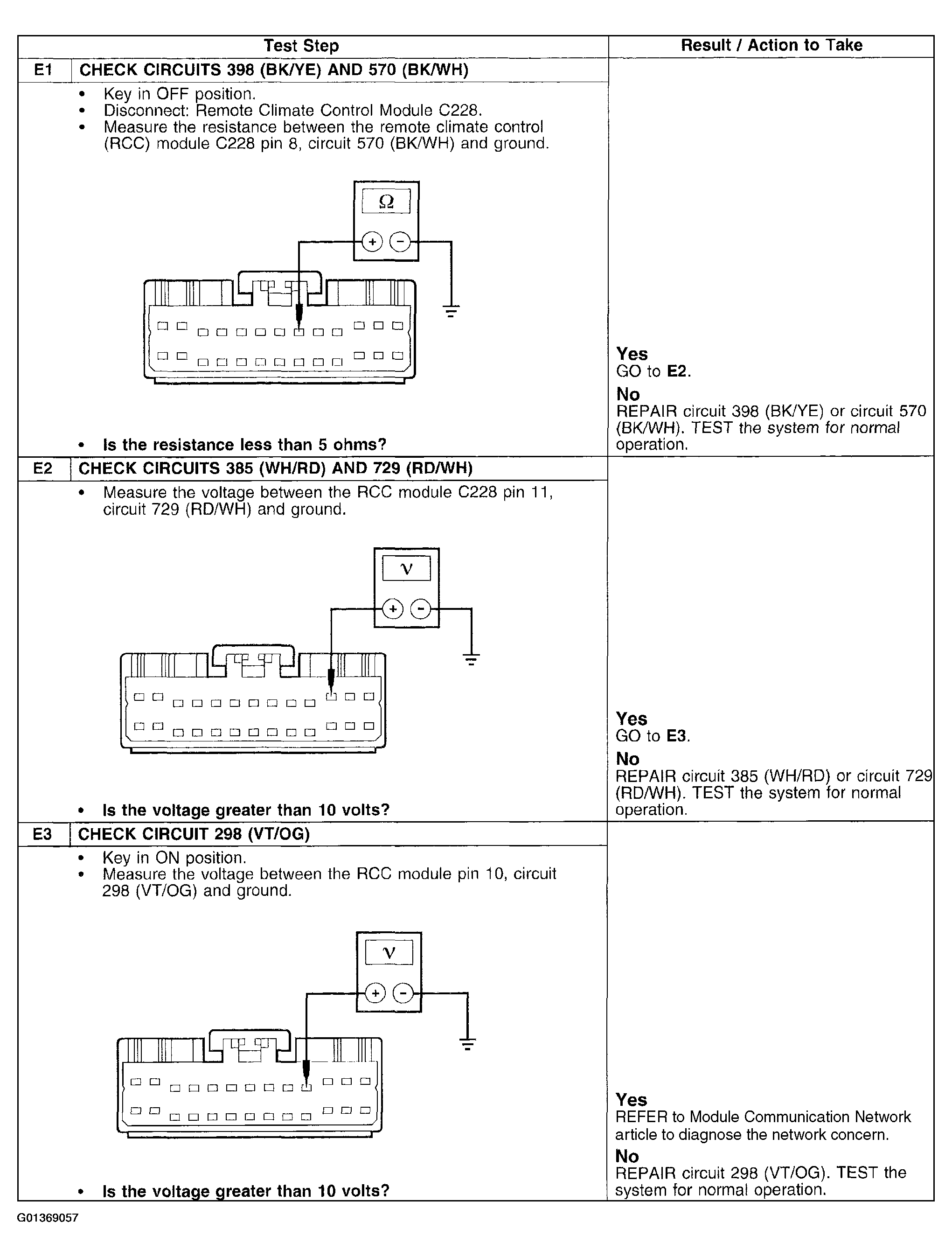

Fig 1: Pinpoint Test E: No Communication With Remote Climate Control Module - EATC (Step E1-E3)
G01369057Courtesy of FORD MOTOR CO.
