Electronic Automatic Temperature Control Vacuum Schematic

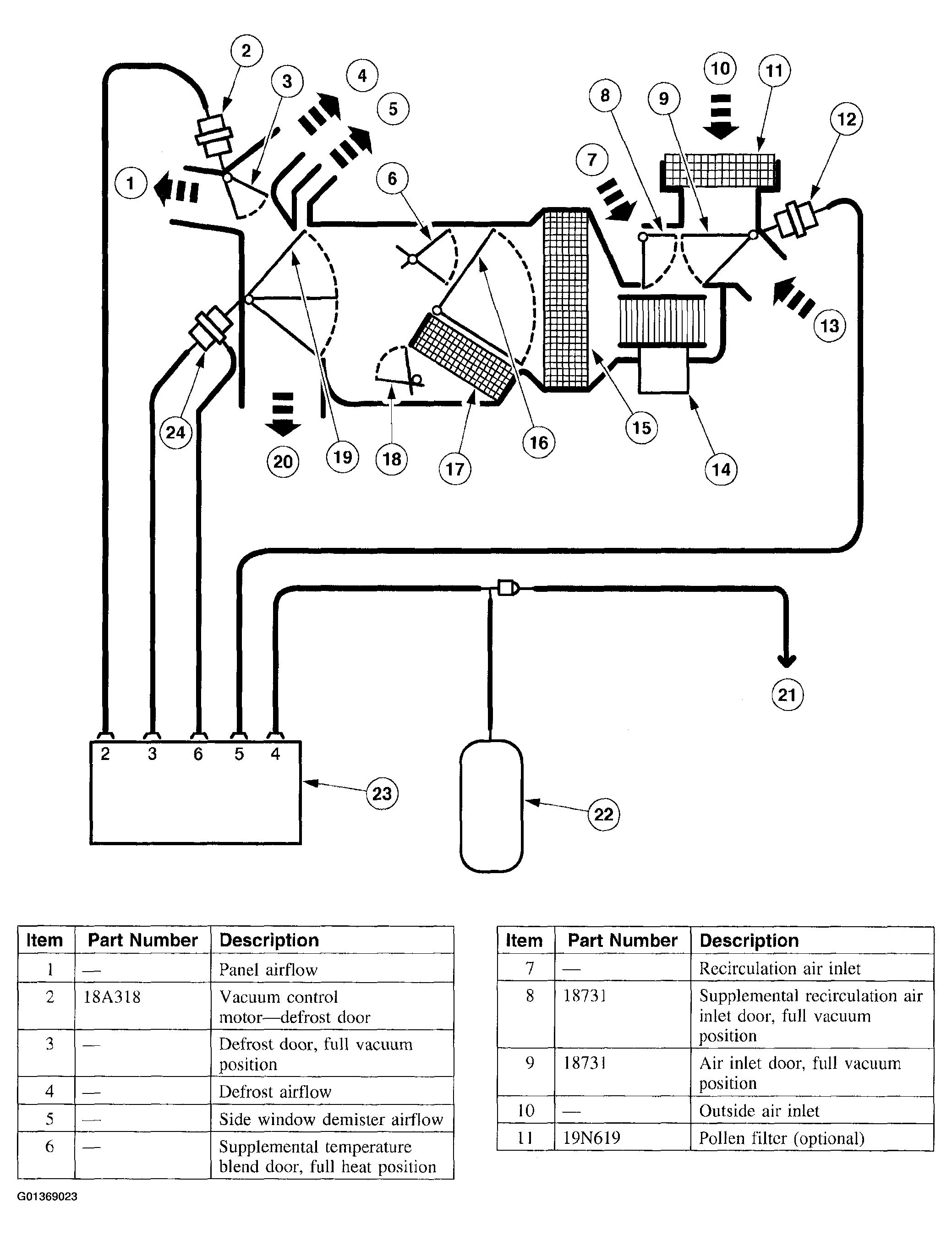

Fig 1: Electronic Automatic Temperature Control Vacuum Schematic Diagram (Items 1-11)

Courtesy of FORD MOTOR CO.

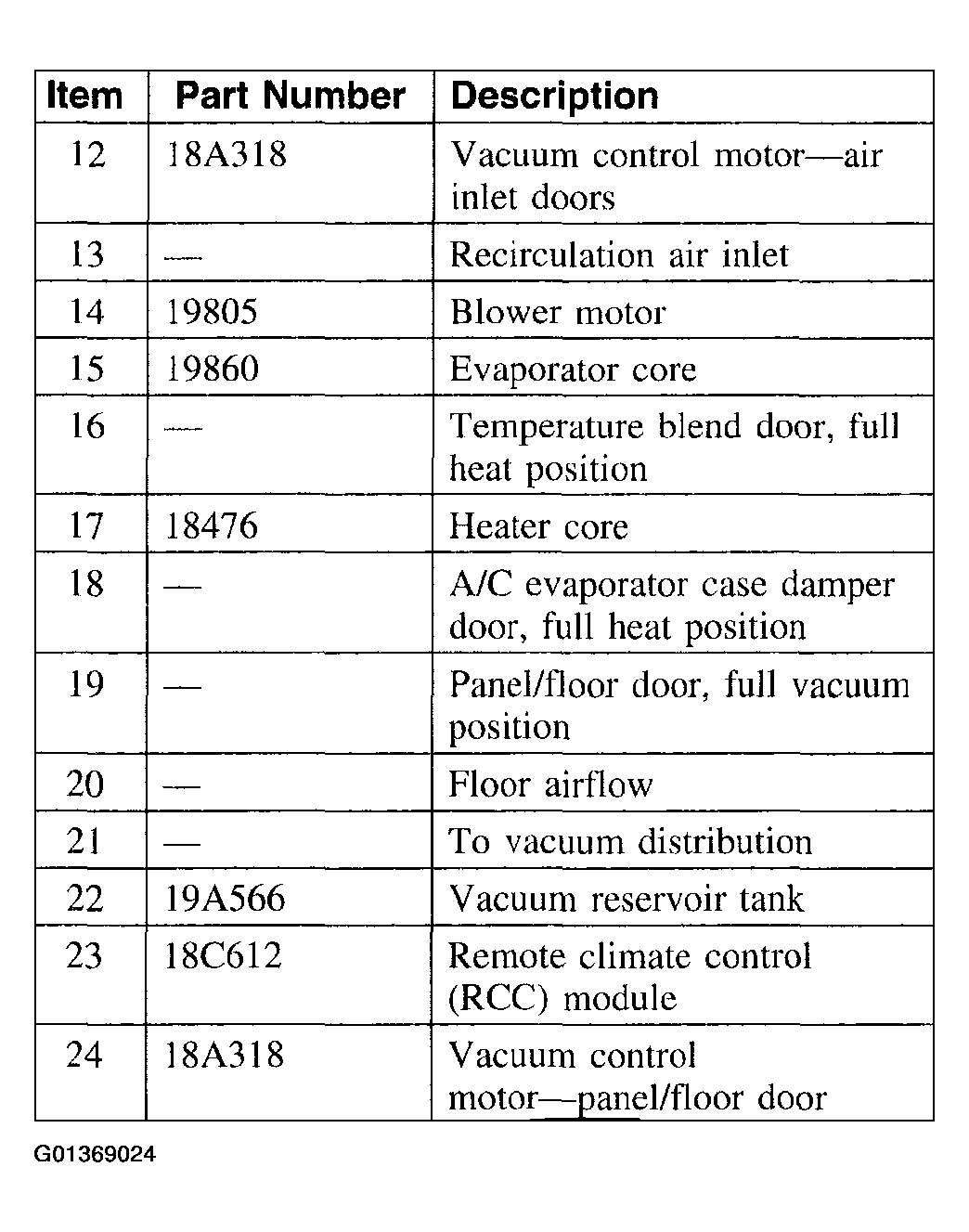

Fig 2: Electronic Automatic Temperature Control Vacuum Schematic Diagram (Items 12-24)

Courtesy of FORD MOTOR CO.
