Electronic Automatic Temperature Control Vacuum Connector End View

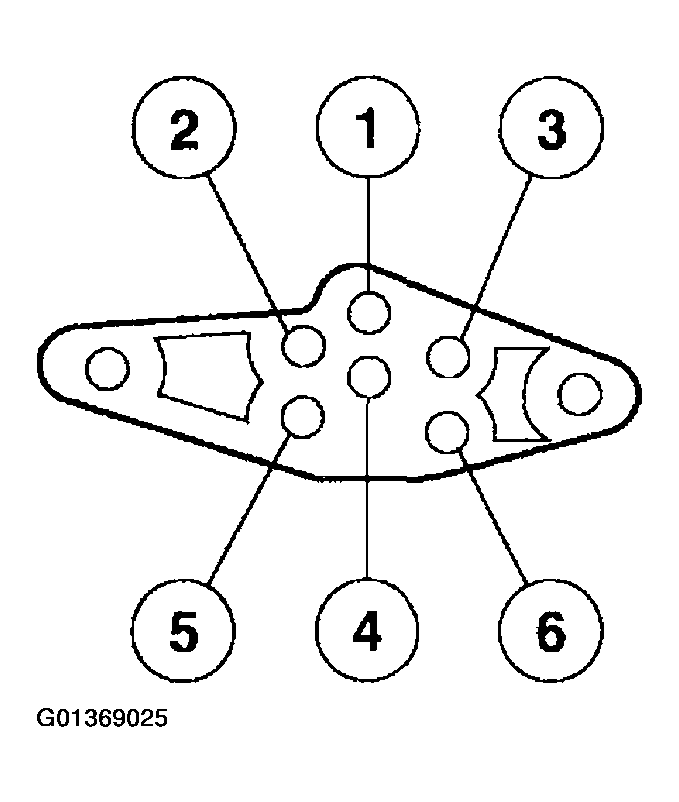

Fig 1: Electronic Automatic Temperature Control Vacuum Connector End View (1 Of 2)
G01369025Courtesy of FORD MOTOR CO.

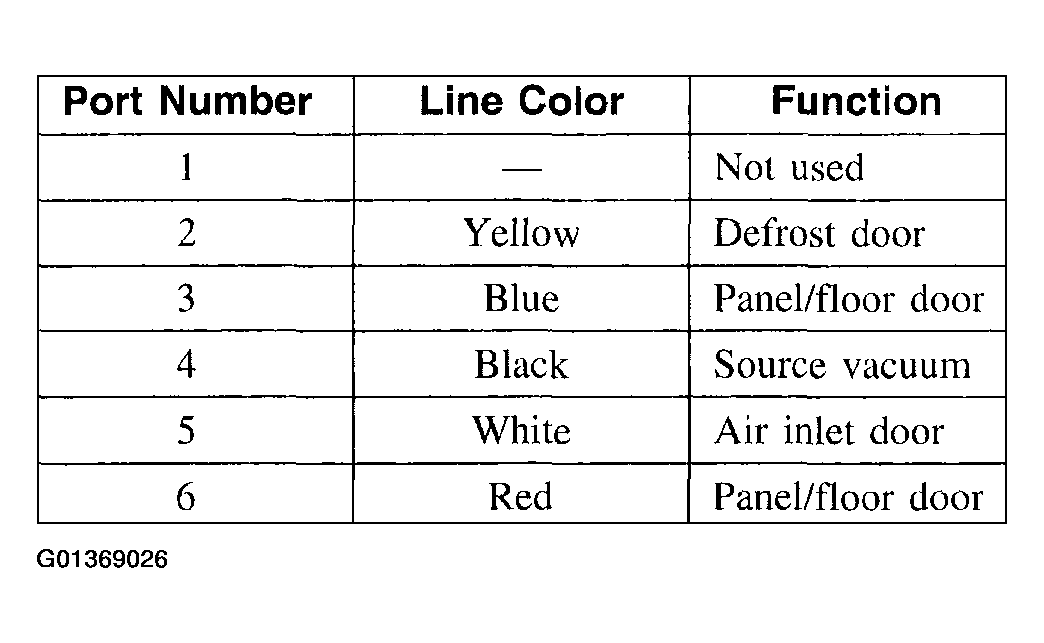

Fig 2: Electronic Automatic Temperature Control Vacuum Connector End View (2 Of 2)
G01369026Courtesy of FORD MOTOR CO.
