Climate Control System
>>
Electronic Automatic Temperature Control System Electrical Components
Electronic Automatic Temperature Control System Electrical Components

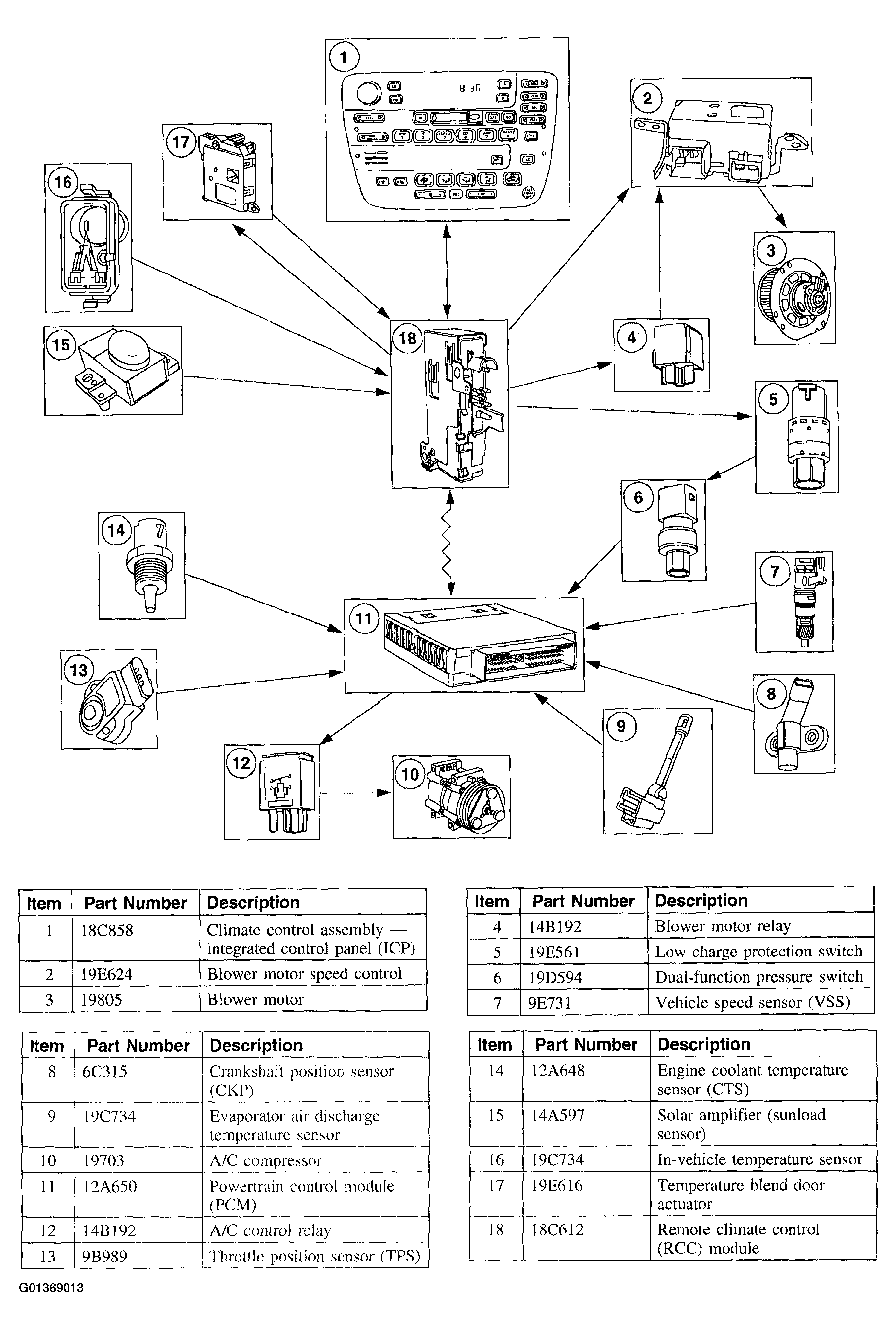

Fig 1: Identifying Electronic Automatic Temperature Control System Electrical Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
