Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On left front of engine compartment. See Figure . |

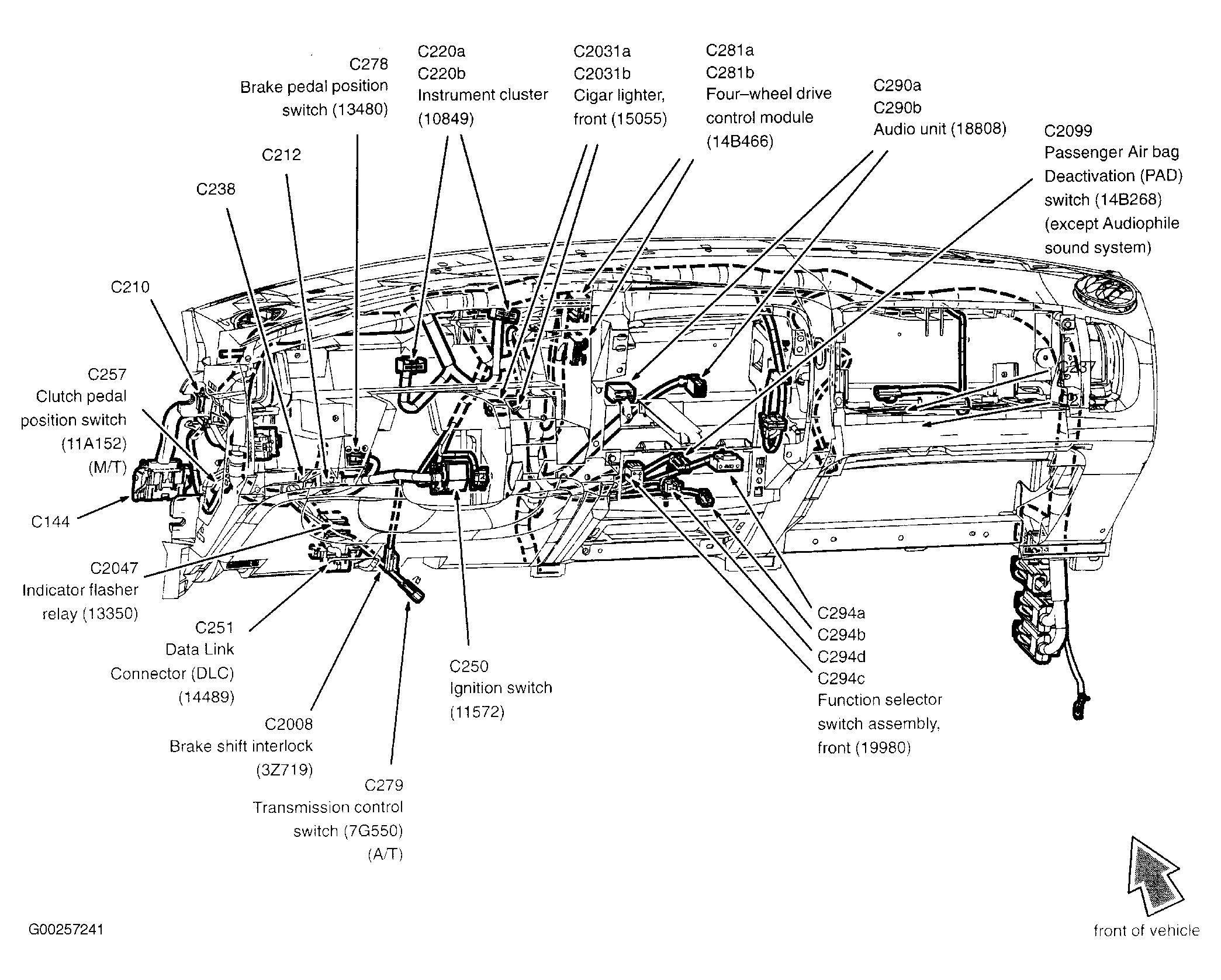

| Four-Wheel Drive Control Module | Behind left center of dash. See Figure . |
| Generic Electronic Module | Behind center of dash. |
| Instrument Panel Dimming Module | Behind left side of dash. See Figure . |

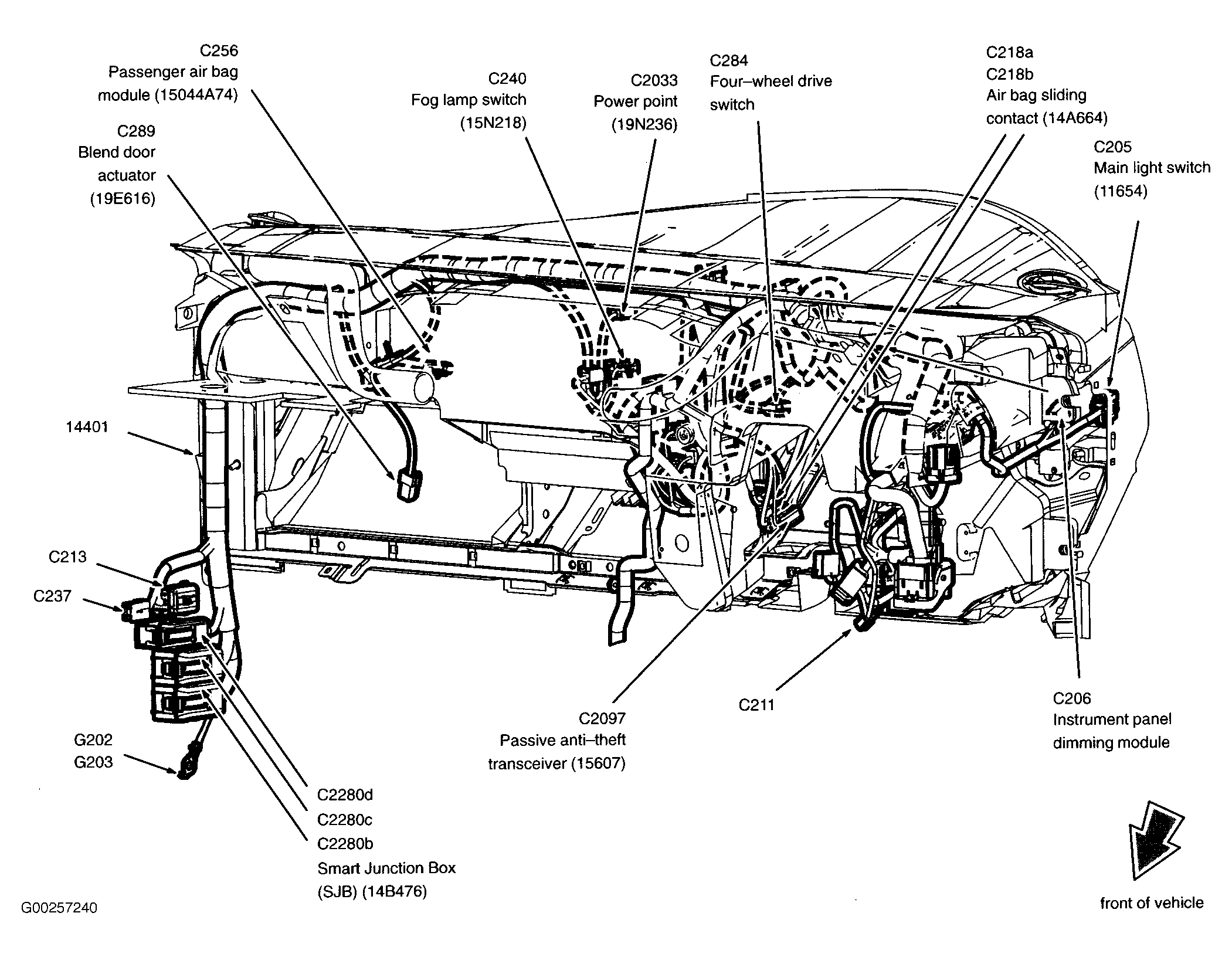

| Passenger Air Bag Module | Behind right side of dash. See Figure . |
| Passive Anti-Theft Transceiver | On bottom of steering column. See Figure . |

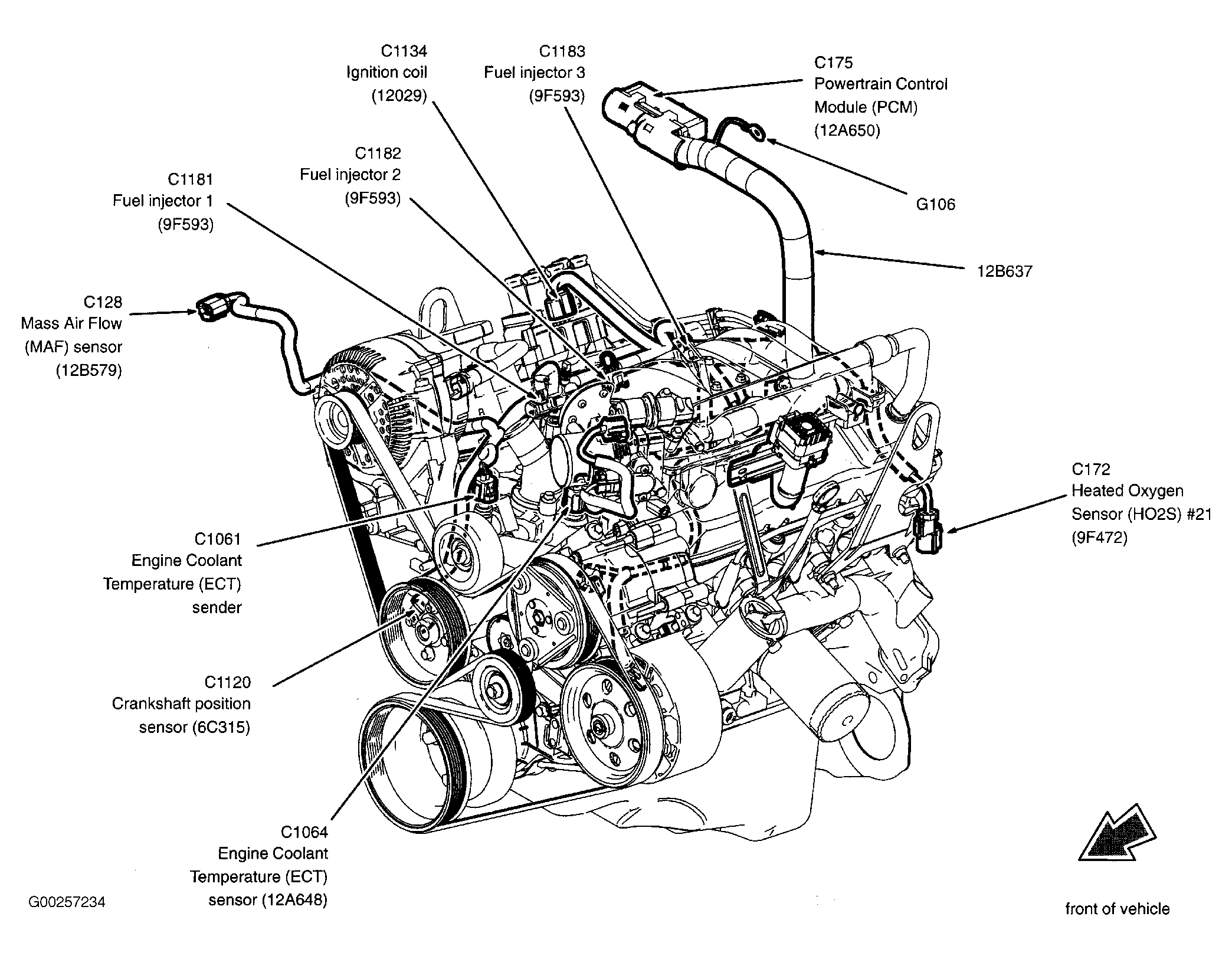

| Powertrain Control Module (PCM) (2.3L) | Right rear of engine compartment, through firewall. See Figure . |

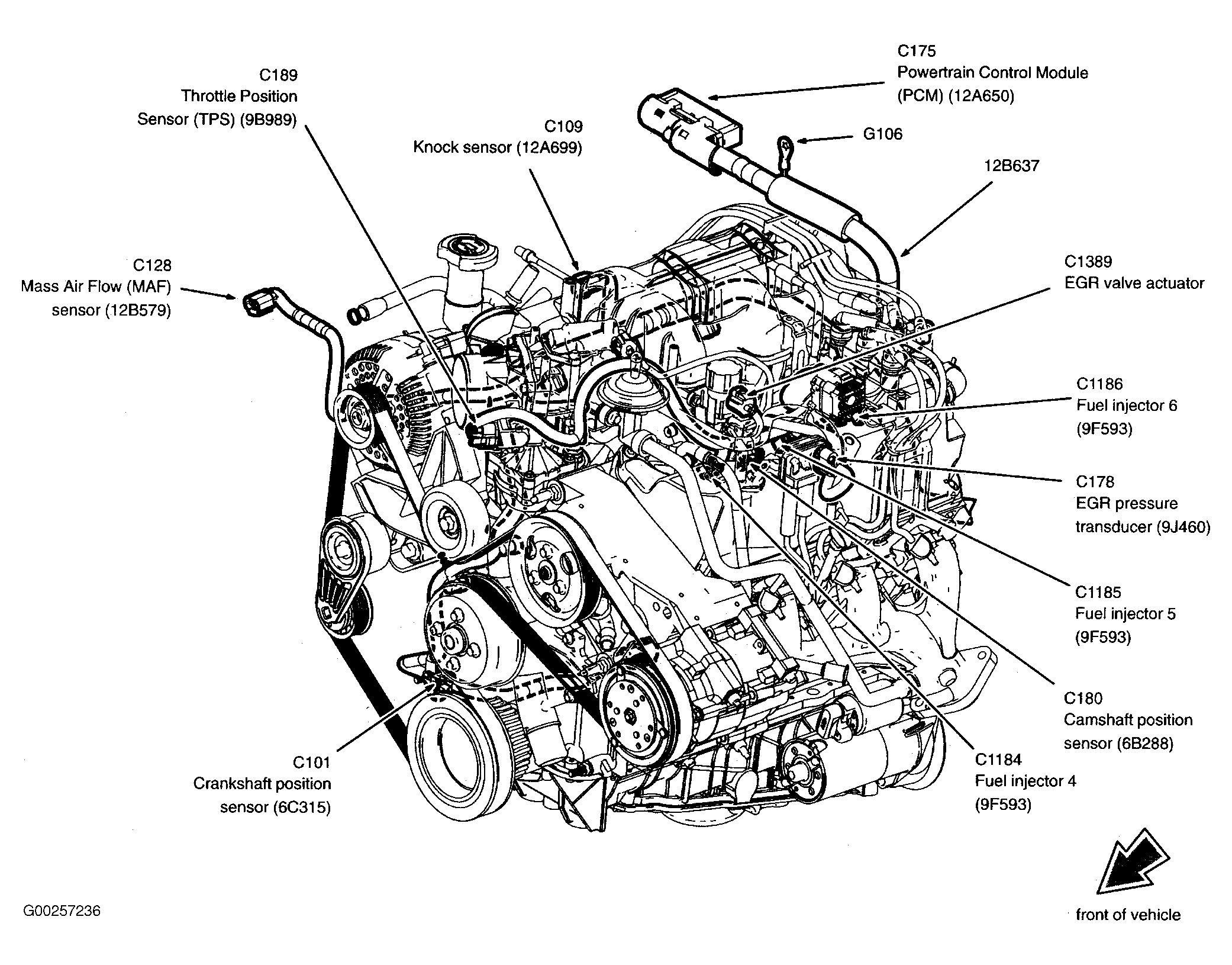

| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment, through firewall. See Figure . |

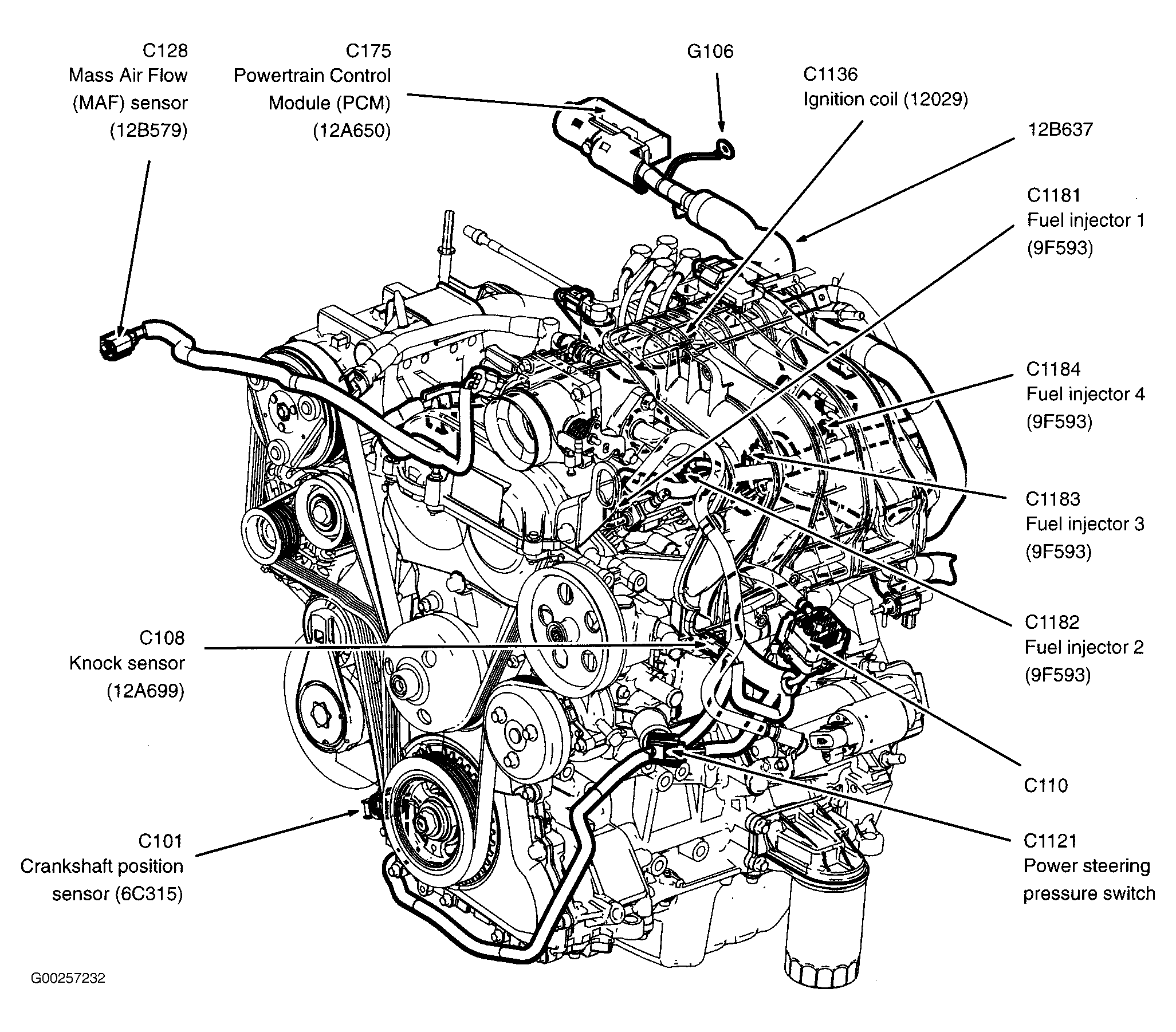

| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment, through firewall. See Figure . |

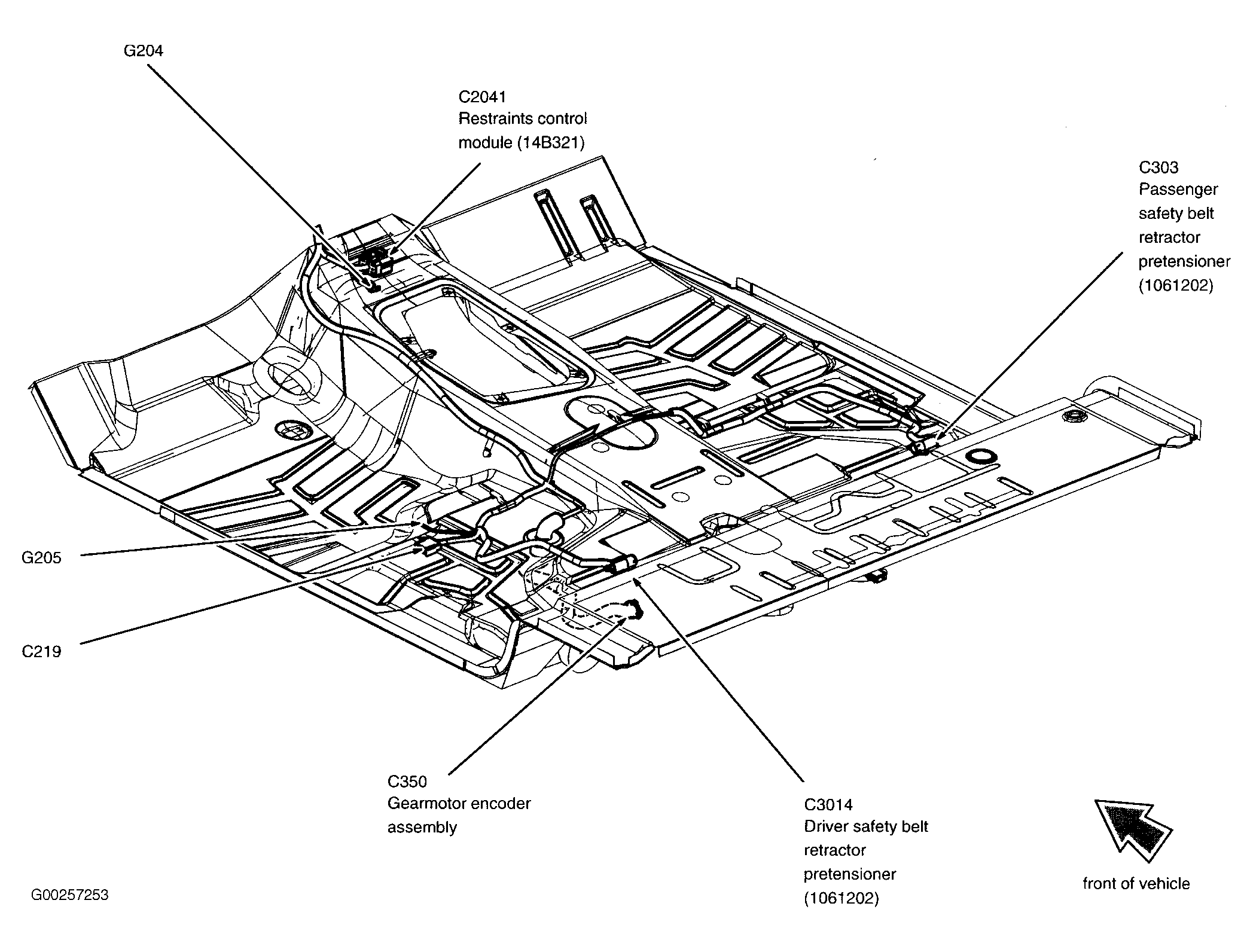

| Restraints Control Module | Under front of center console. See Figure . |
| Swirl Control Monitor (2.3L) | In rear of engine compartment. |
