Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

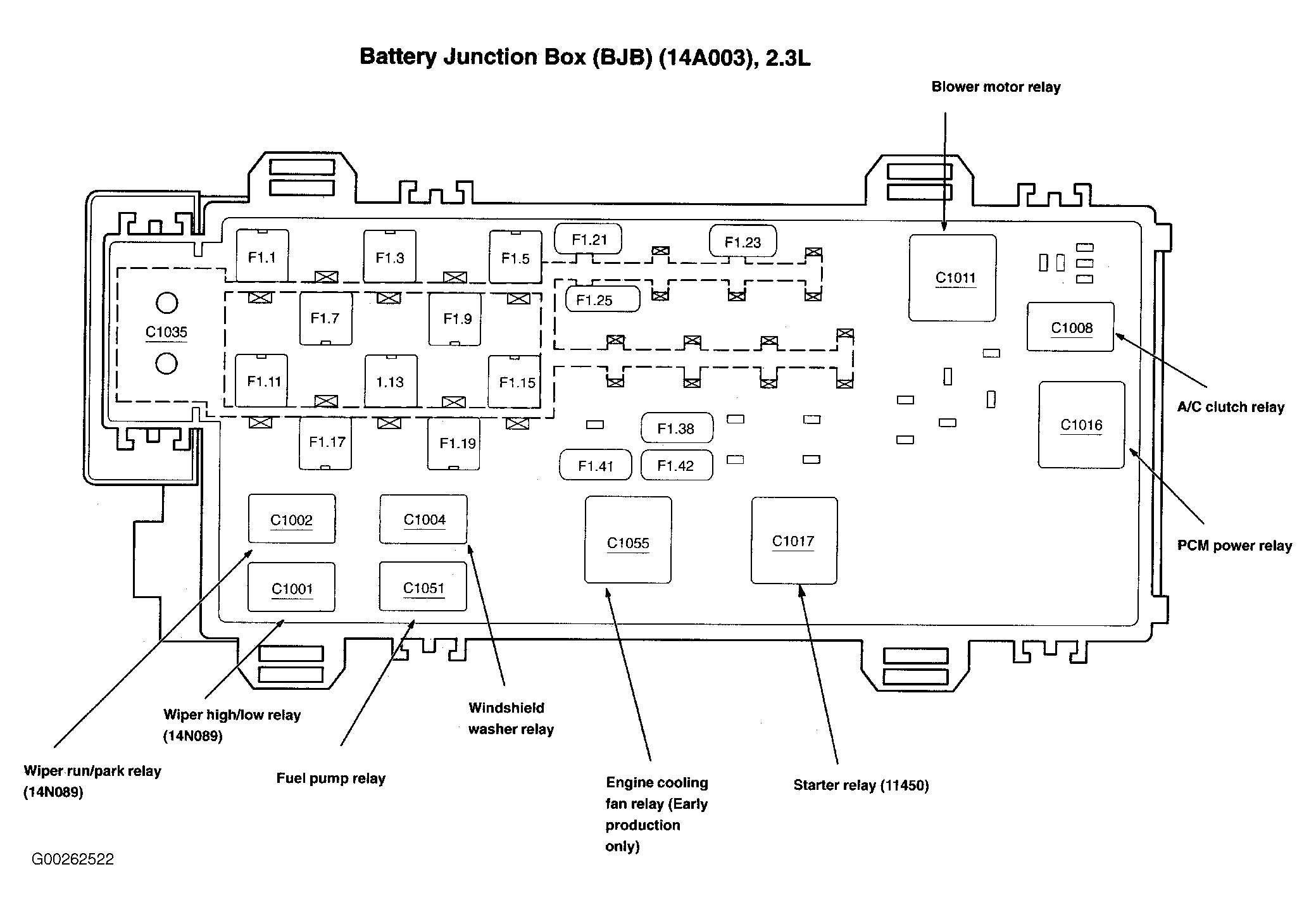

Fig 1: Battery Junction Box (BJB) (2.3L)

G00262522

Courtesy of FORD MOTOR CO.

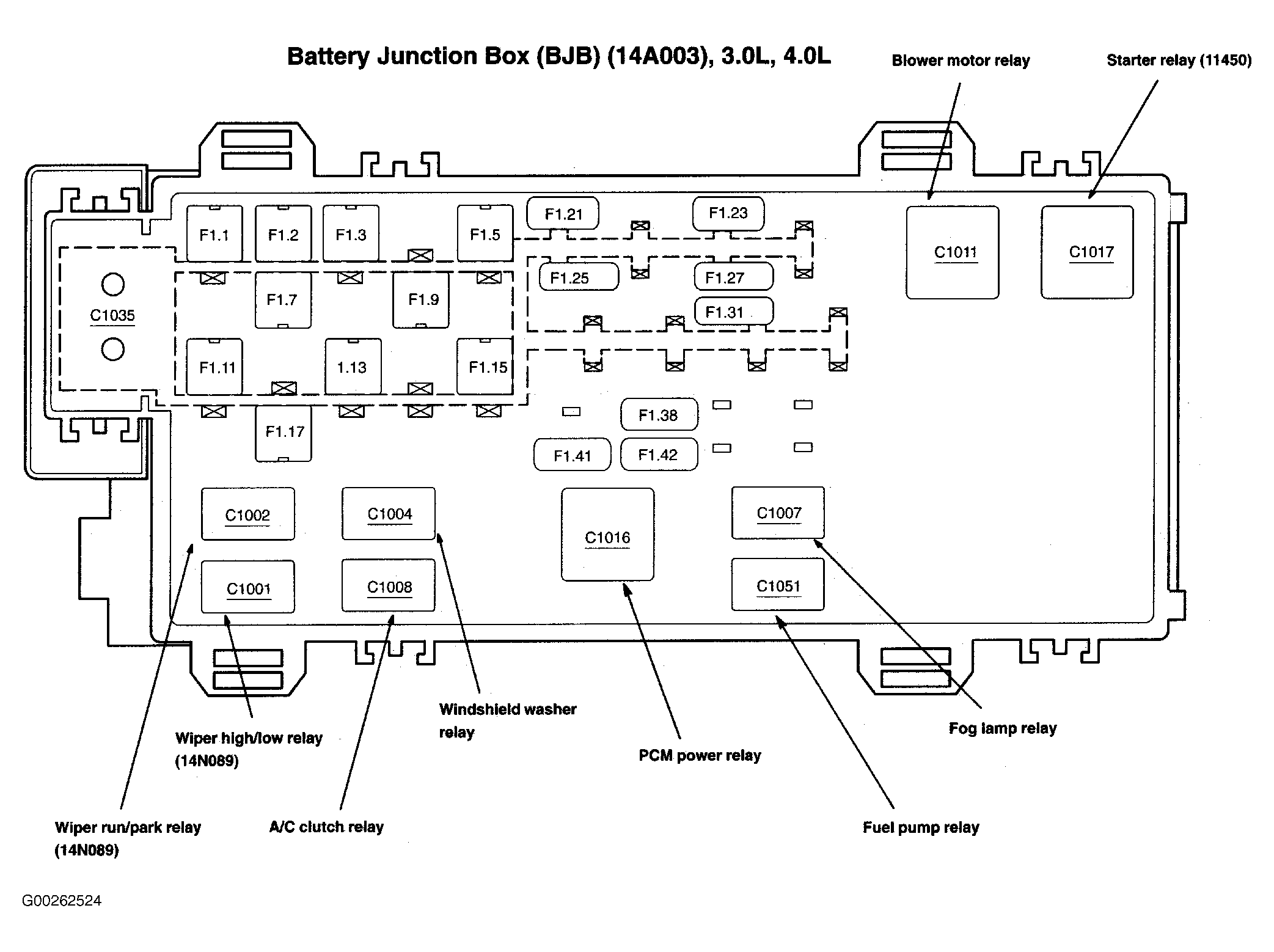

Fig 2: Battery Junction Box (BJB) (3.0L & 4.0L)

G00262524

Courtesy of FORD MOTOR CO.

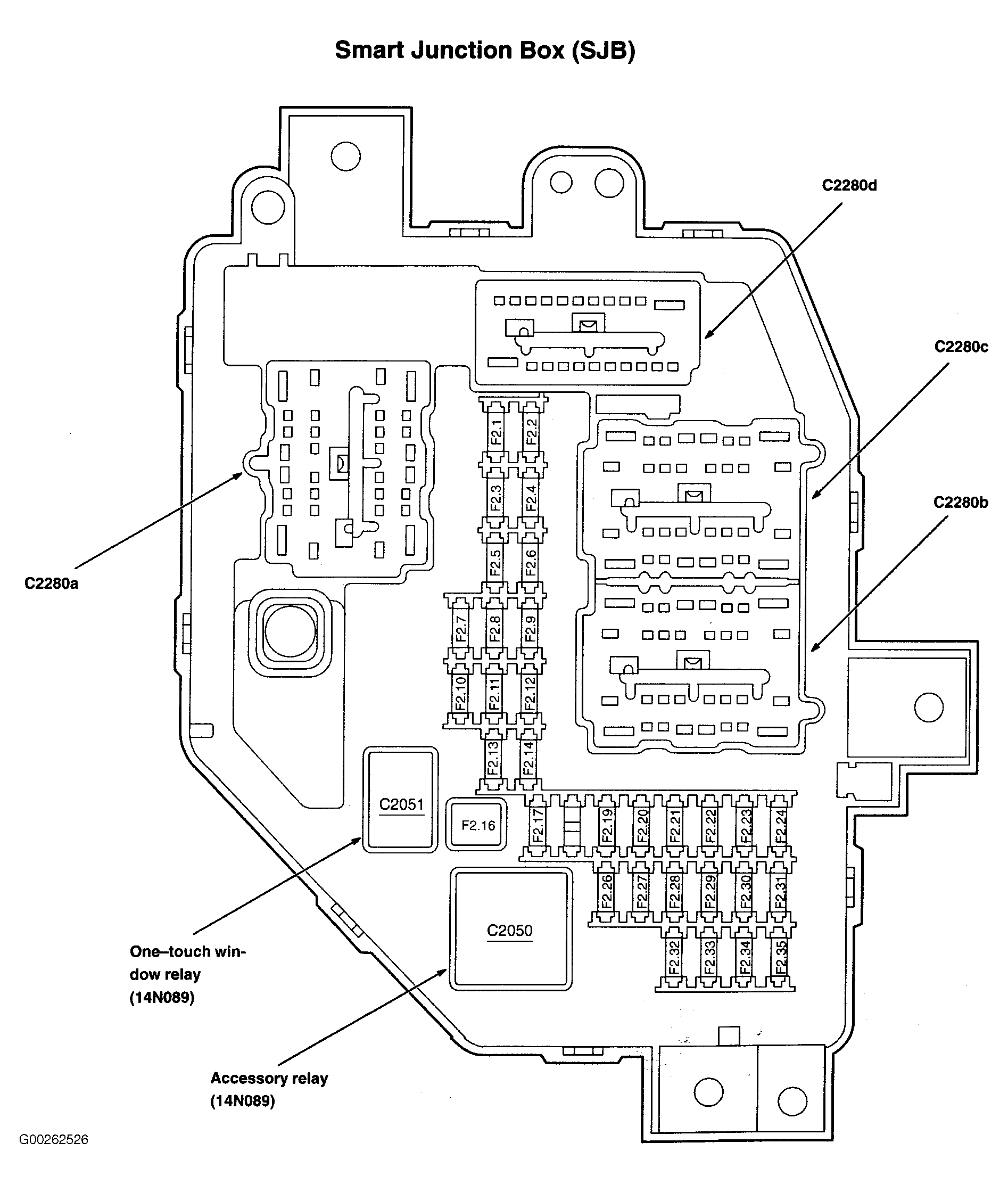

Fig 3: Smart Junction Box (SJB)

G00262526

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment

G00257230

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment

G00257231

Courtesy of FORD MOTOR CO.

Fig 6: Front Of Engine (2.3L)

G00257232

Courtesy of FORD MOTOR CO.

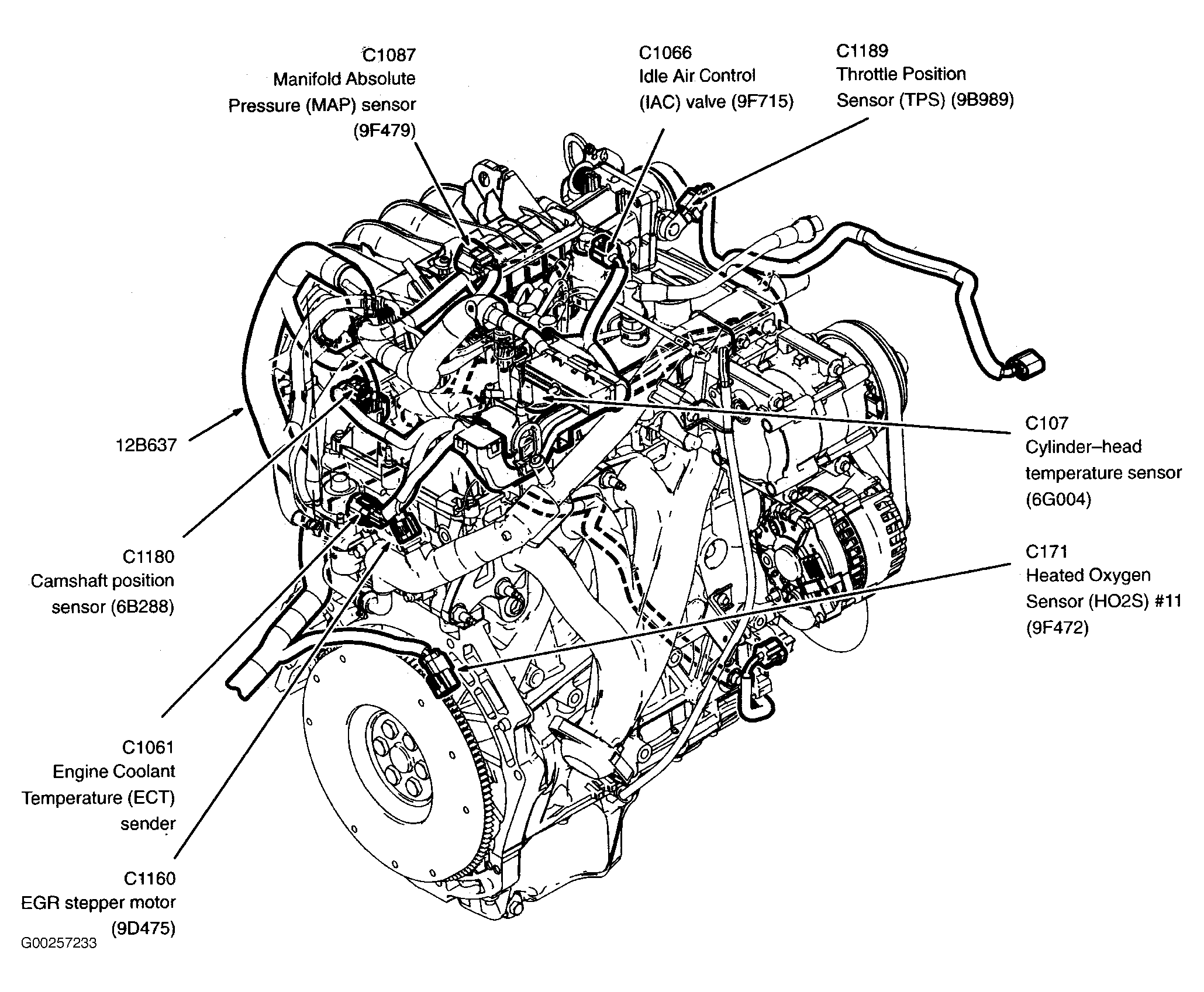

Fig 7: Rear Of Engine (2.3L)

G00257233

Courtesy of FORD MOTOR CO.

Fig 8: Front Of Engine (3.0L)

G00257234

Courtesy of FORD MOTOR CO.

Fig 9: Rear Of Engine (3.0L)

G00257235

Courtesy of FORD MOTOR CO.

Fig 10: Front Of Engine (4.0L)

G00257236

Courtesy of FORD MOTOR CO.

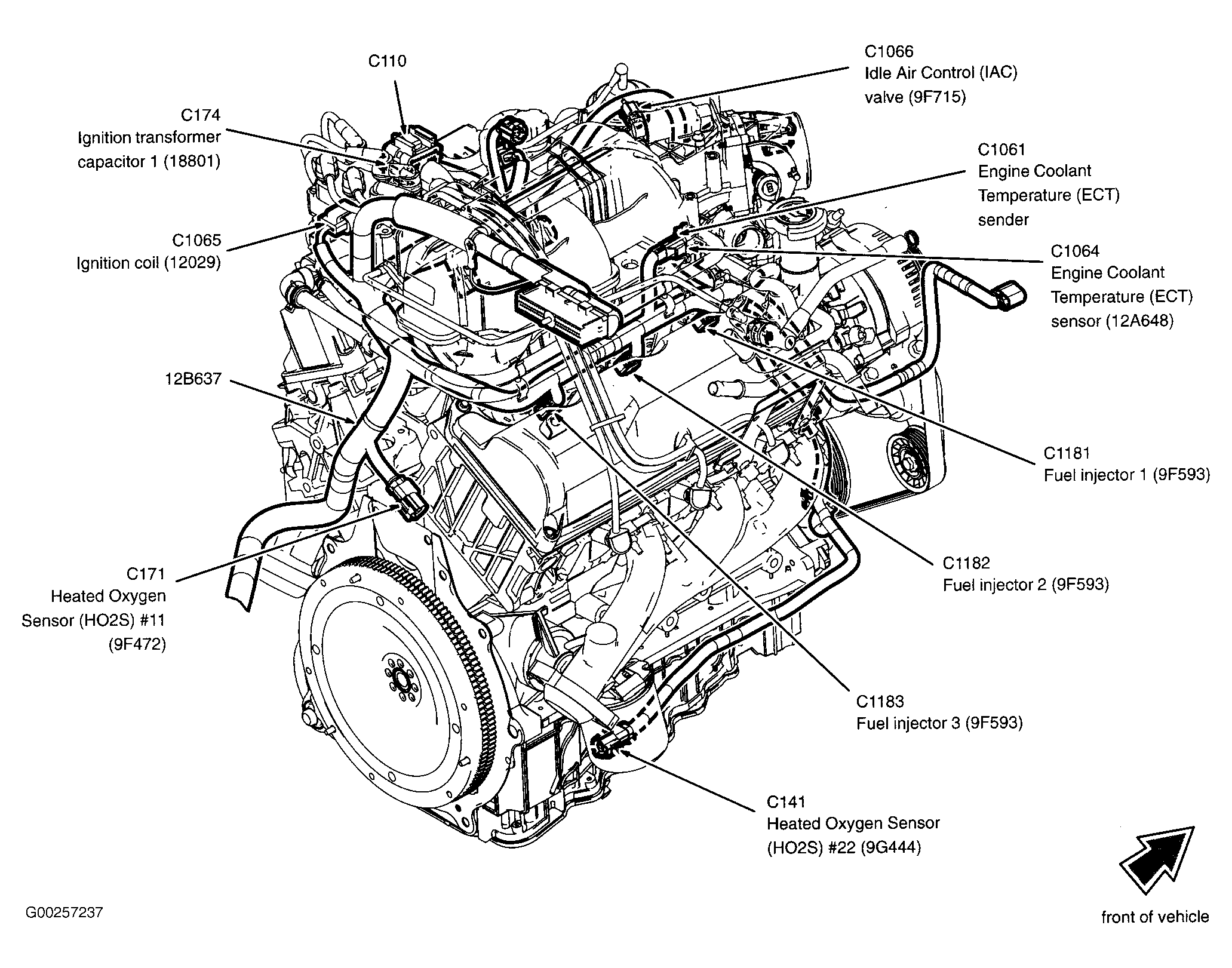

Fig 11: Rear Of Engine (4.0L)

G00257237

Courtesy of FORD MOTOR CO.

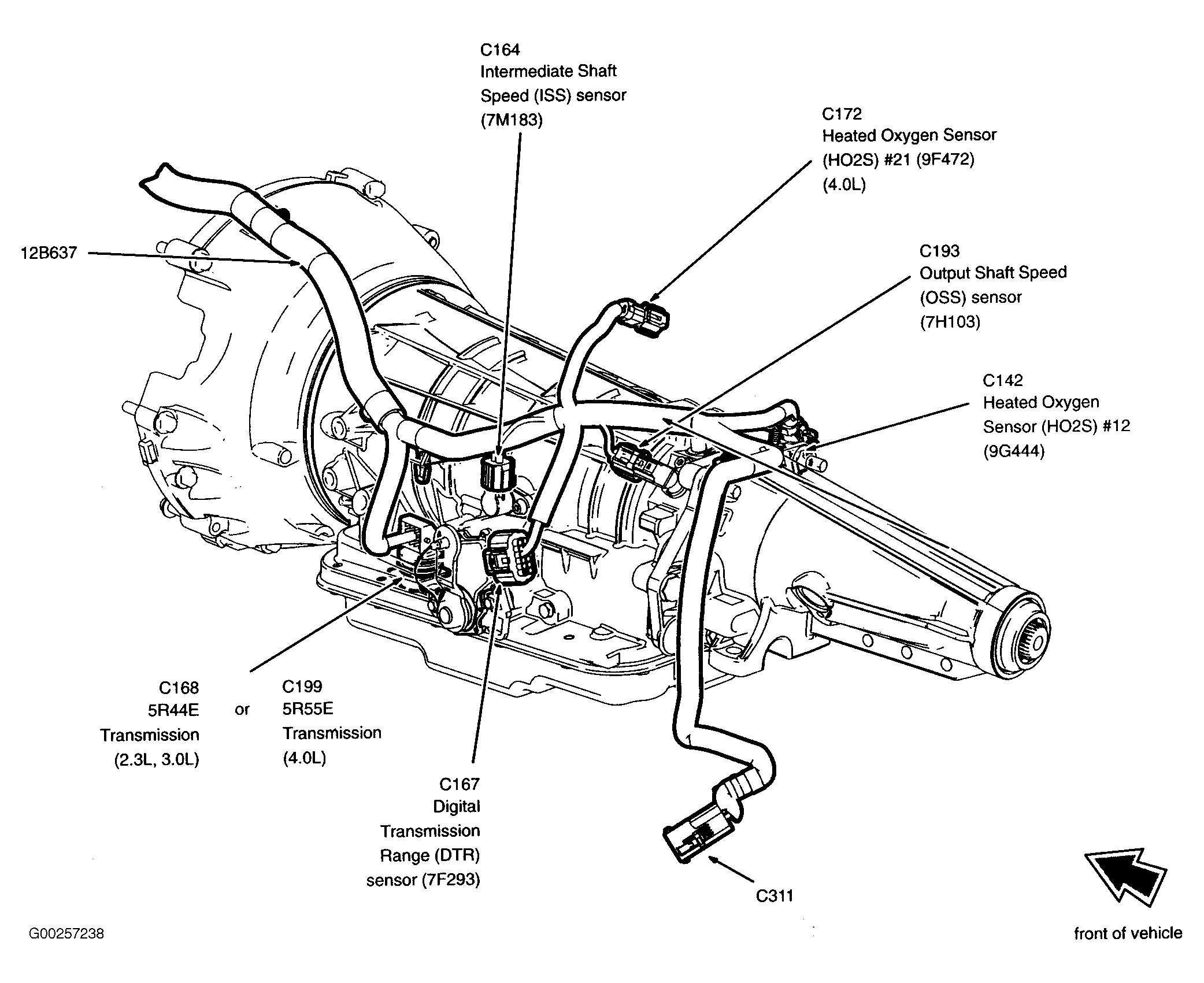

Fig 12: Transmission (A/T)

G00257238

Courtesy of FORD MOTOR CO.

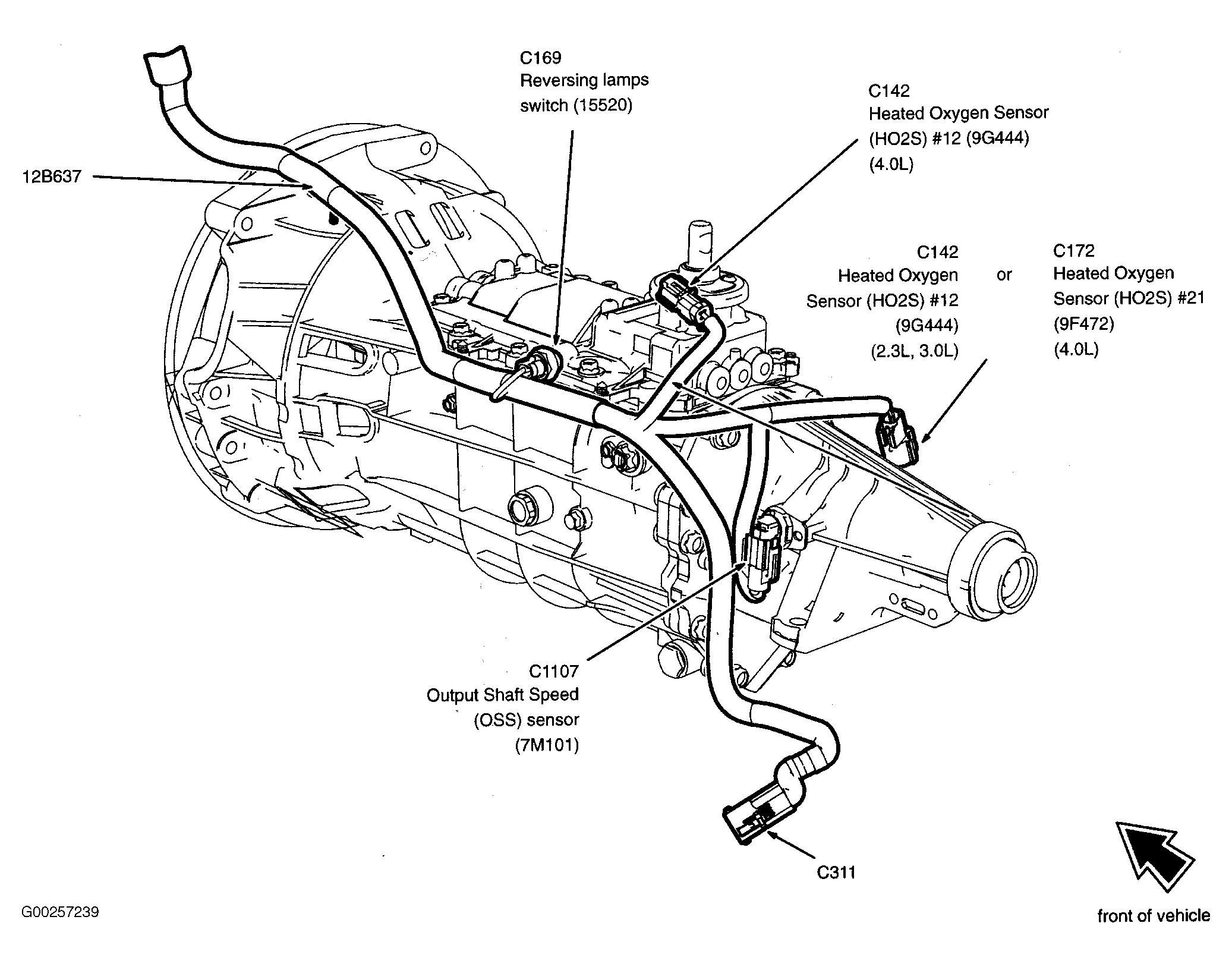

Fig 13: Transmission (M/T)

G00257239

Courtesy of FORD MOTOR CO.

Fig 14: Rear Of Dash

G00257240

Courtesy of FORD MOTOR CO.

Fig 15: Front Of Dash

G00257241

Courtesy of FORD MOTOR CO.

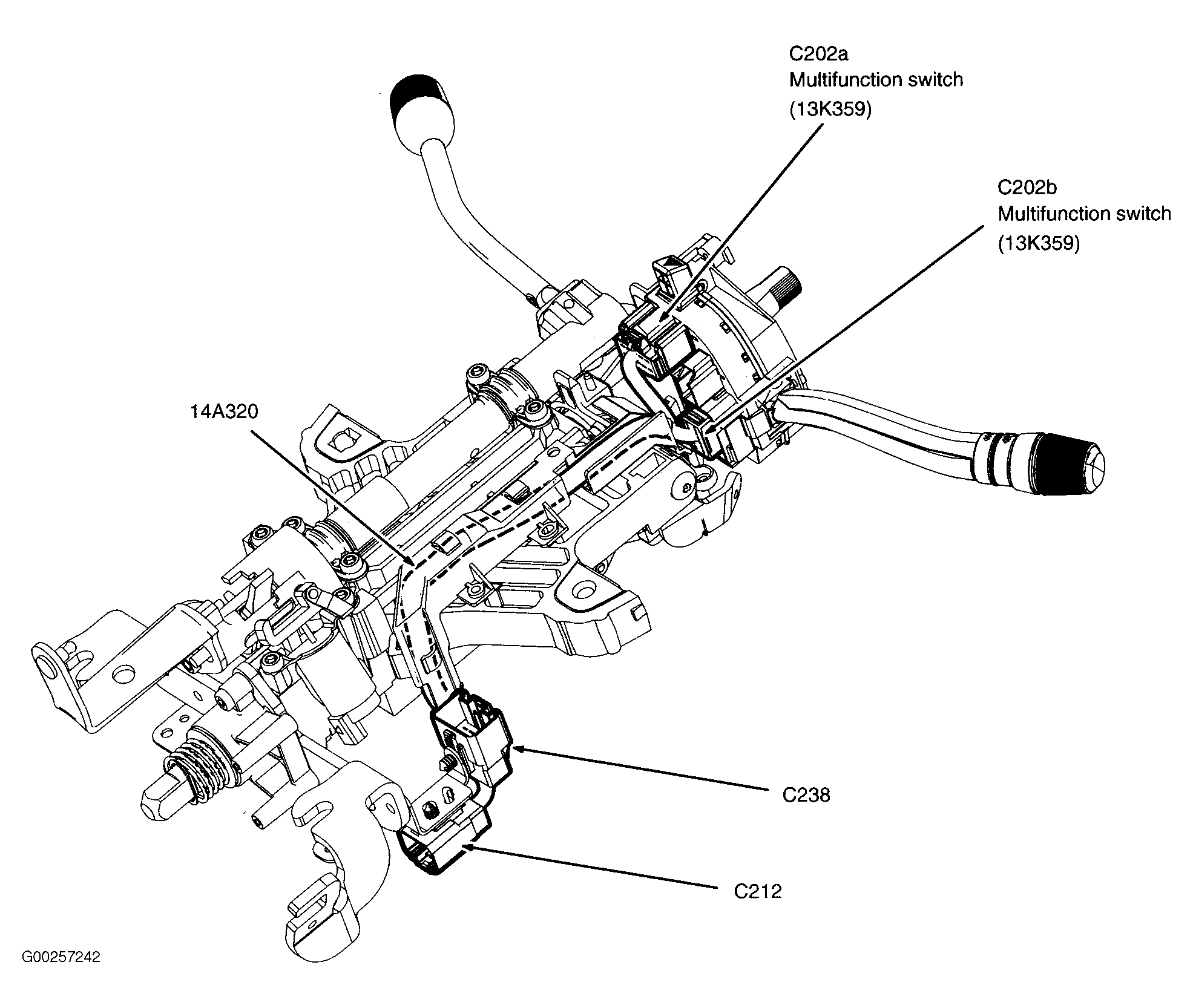

Fig 16: Steering Column

G00257242

Courtesy of FORD MOTOR CO.

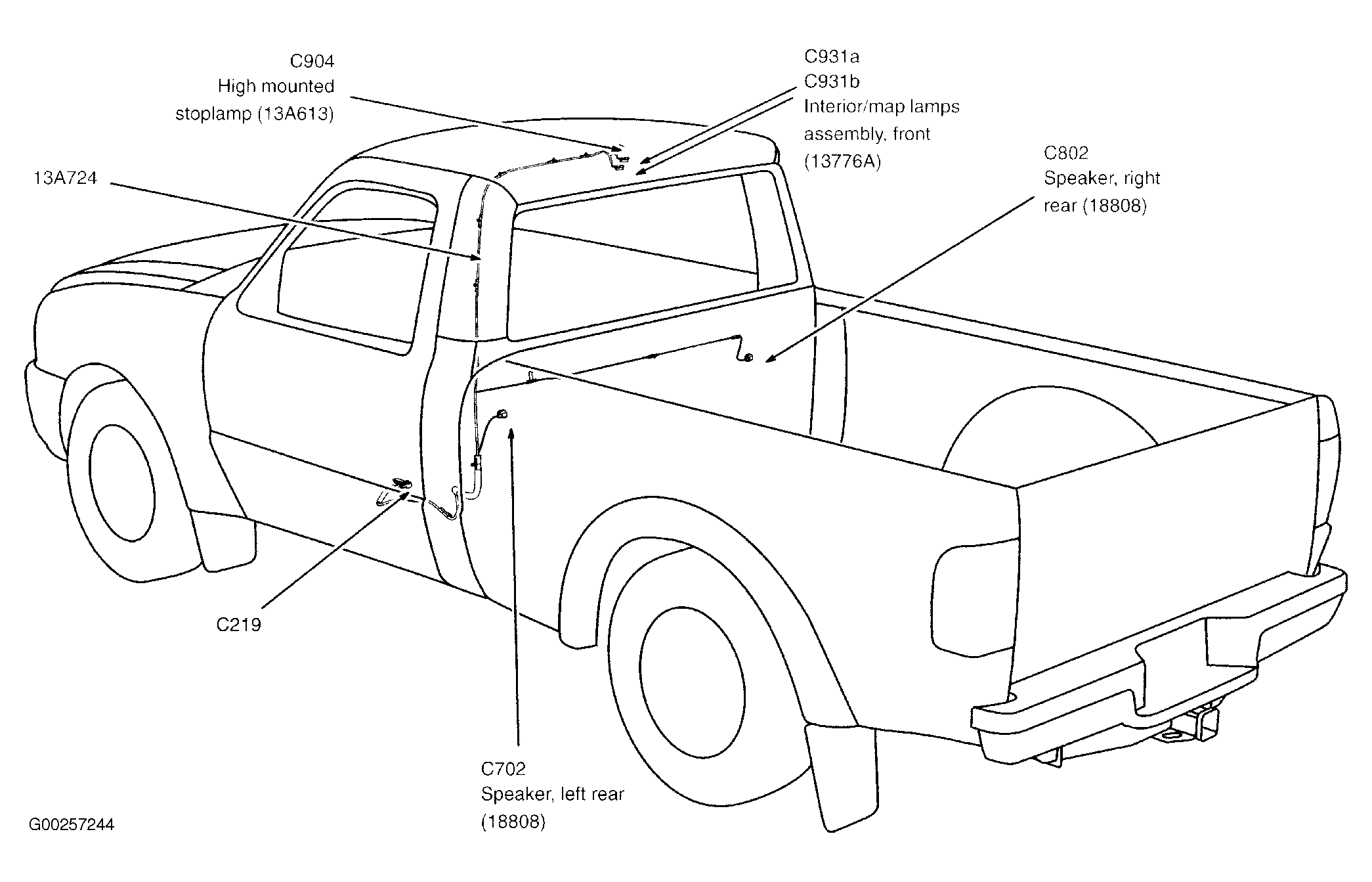

Fig 17: Left Side Of Vehicle (Regular Cab)

G00257244

Courtesy of FORD MOTOR CO.

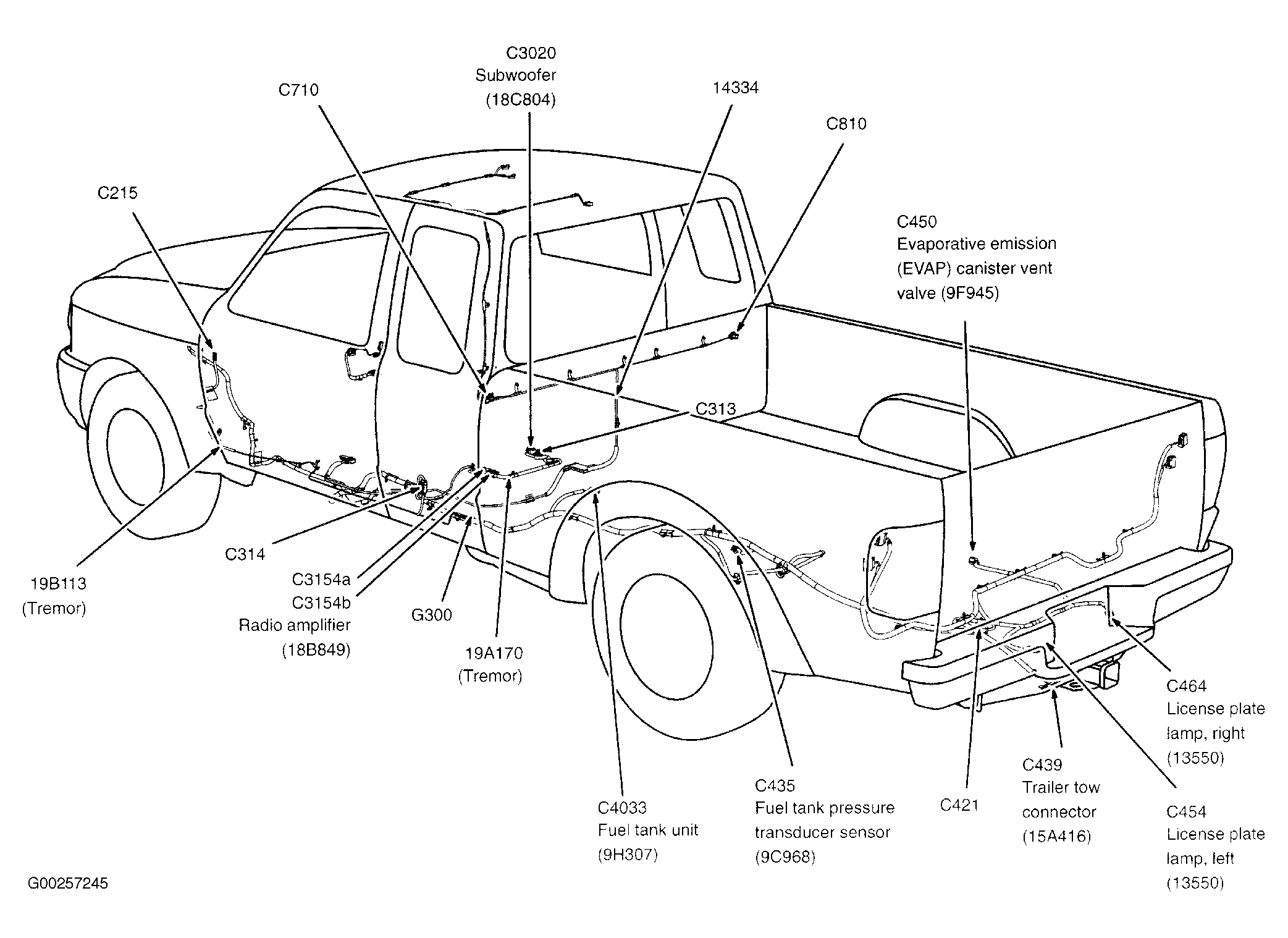

Fig 18: Left Side Of Vehicle (4 Door Super Cab)

G00257245

Courtesy of FORD MOTOR CO.

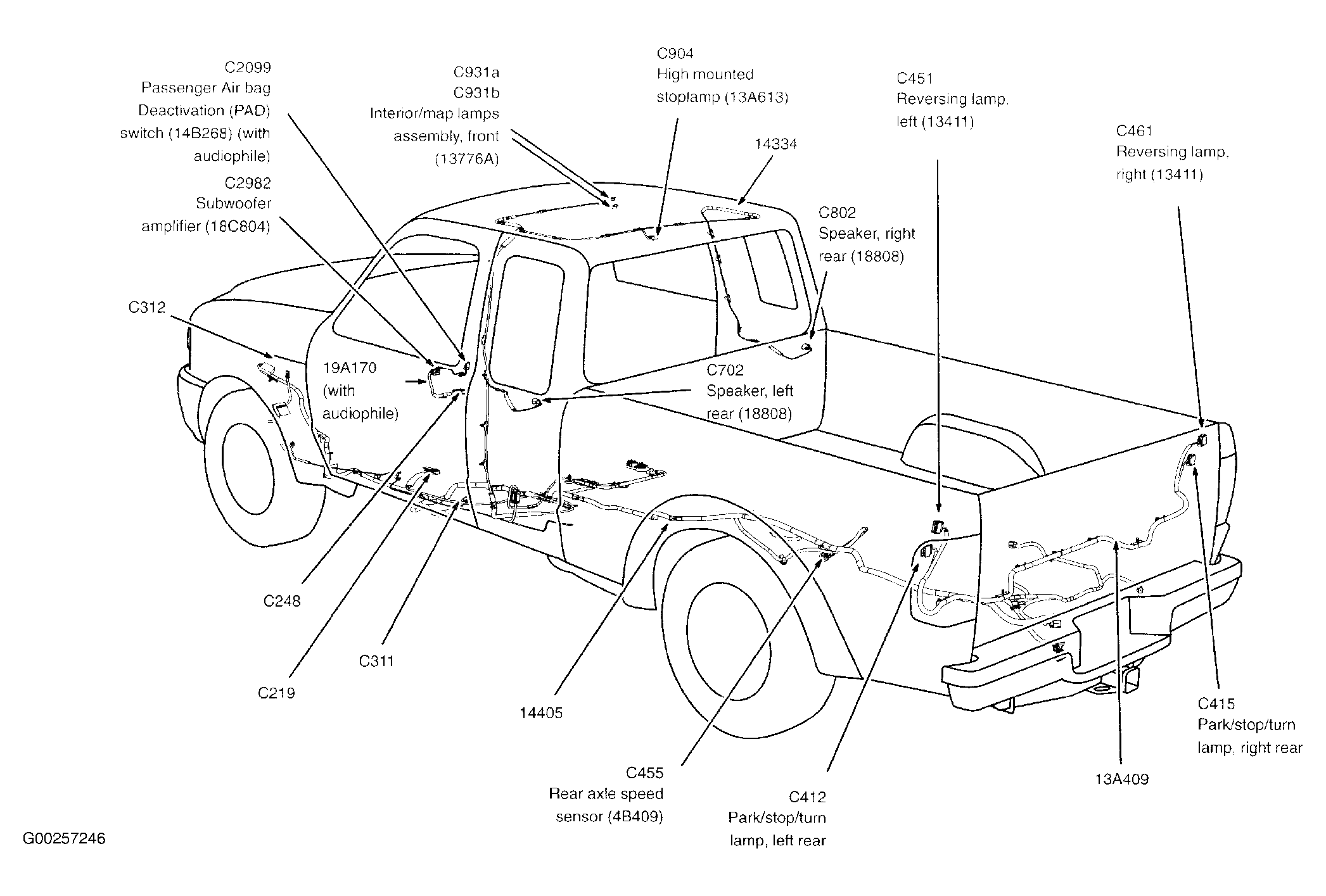

Fig 19: Left Side Of Vehicle (2 Door Super Cab)

G00257246

Courtesy of FORD MOTOR CO.

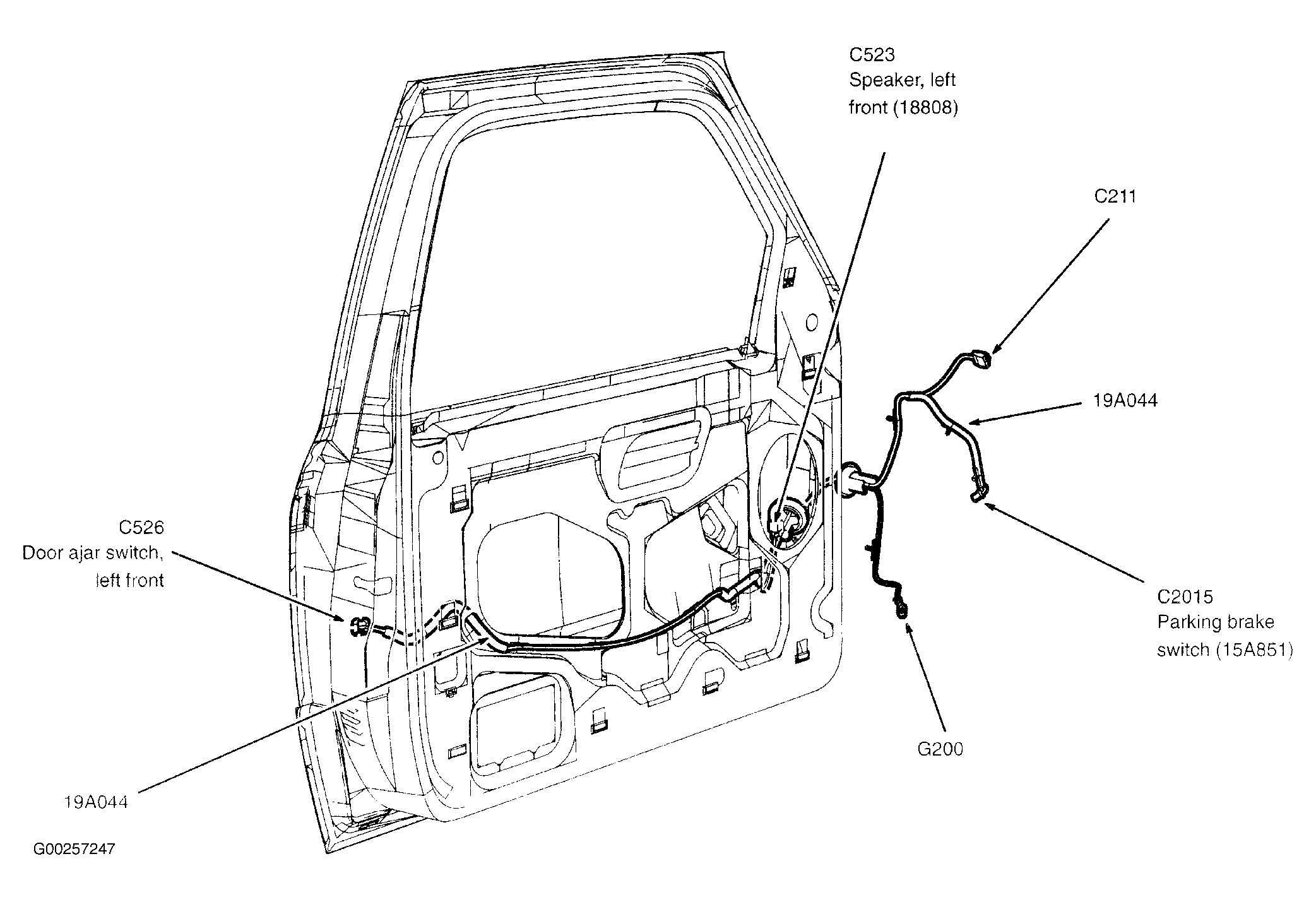

Fig 20: Left Front Door (W/O Power Equipment)

G00257247

Courtesy of FORD MOTOR CO.

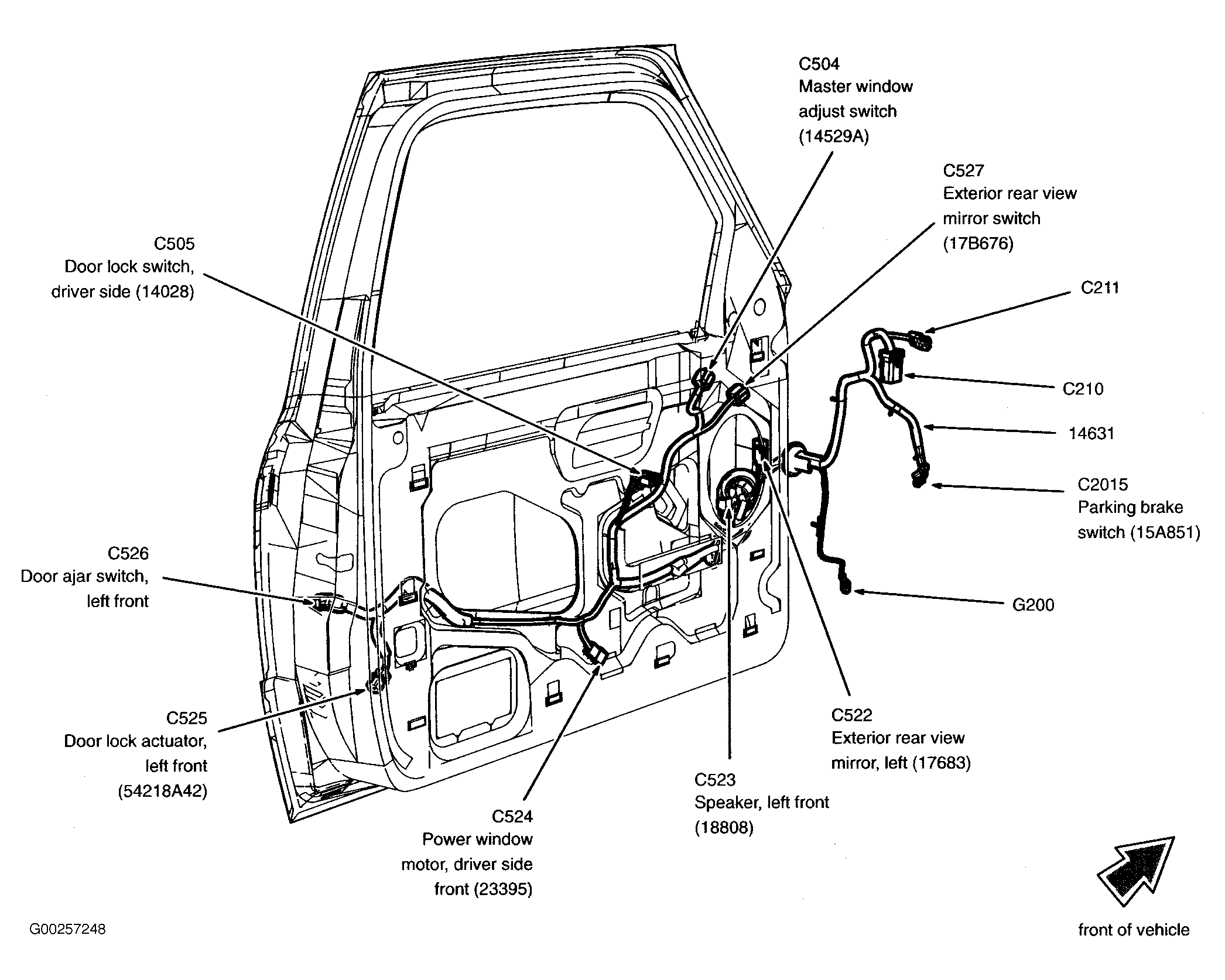

Fig 21: Left Front Door (W/Power Equipment)

G00257248

Courtesy of FORD MOTOR CO.

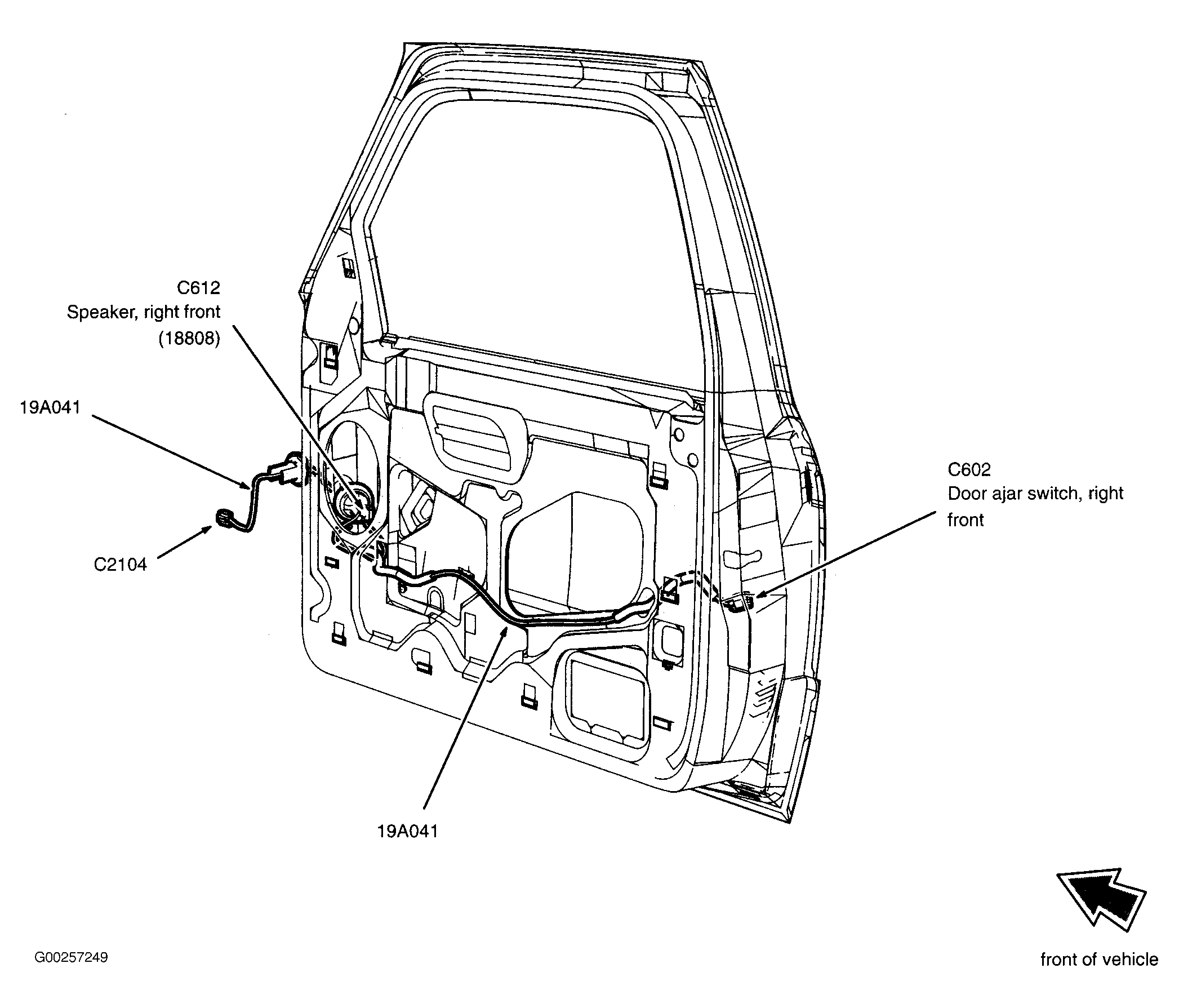

Fig 22: Right Front Door (W/O Power Equipment)

G00257249

Courtesy of FORD MOTOR CO.

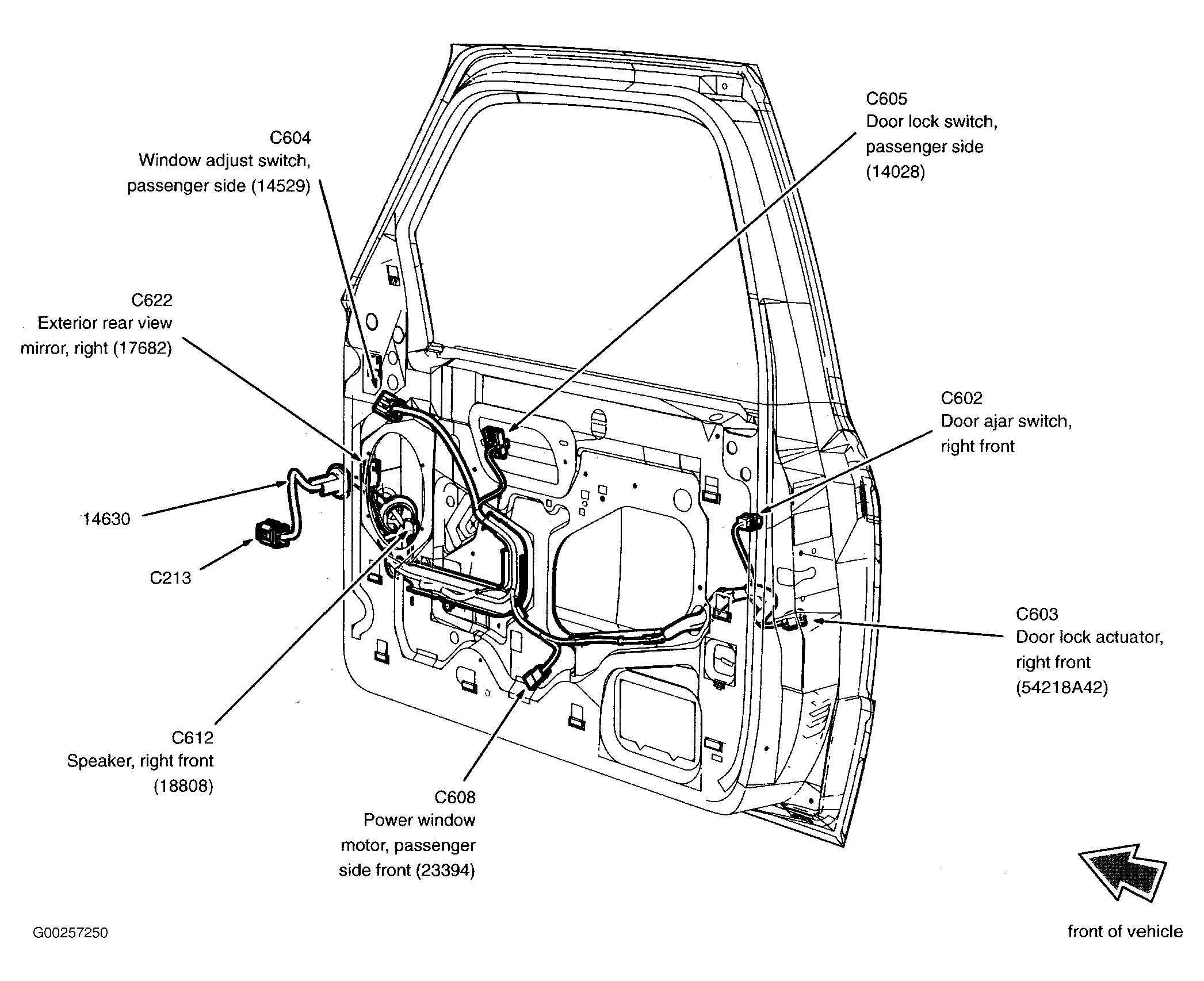

Fig 23: Right Front Door (W/Power Equipment)

G00257250

Courtesy of FORD MOTOR CO.

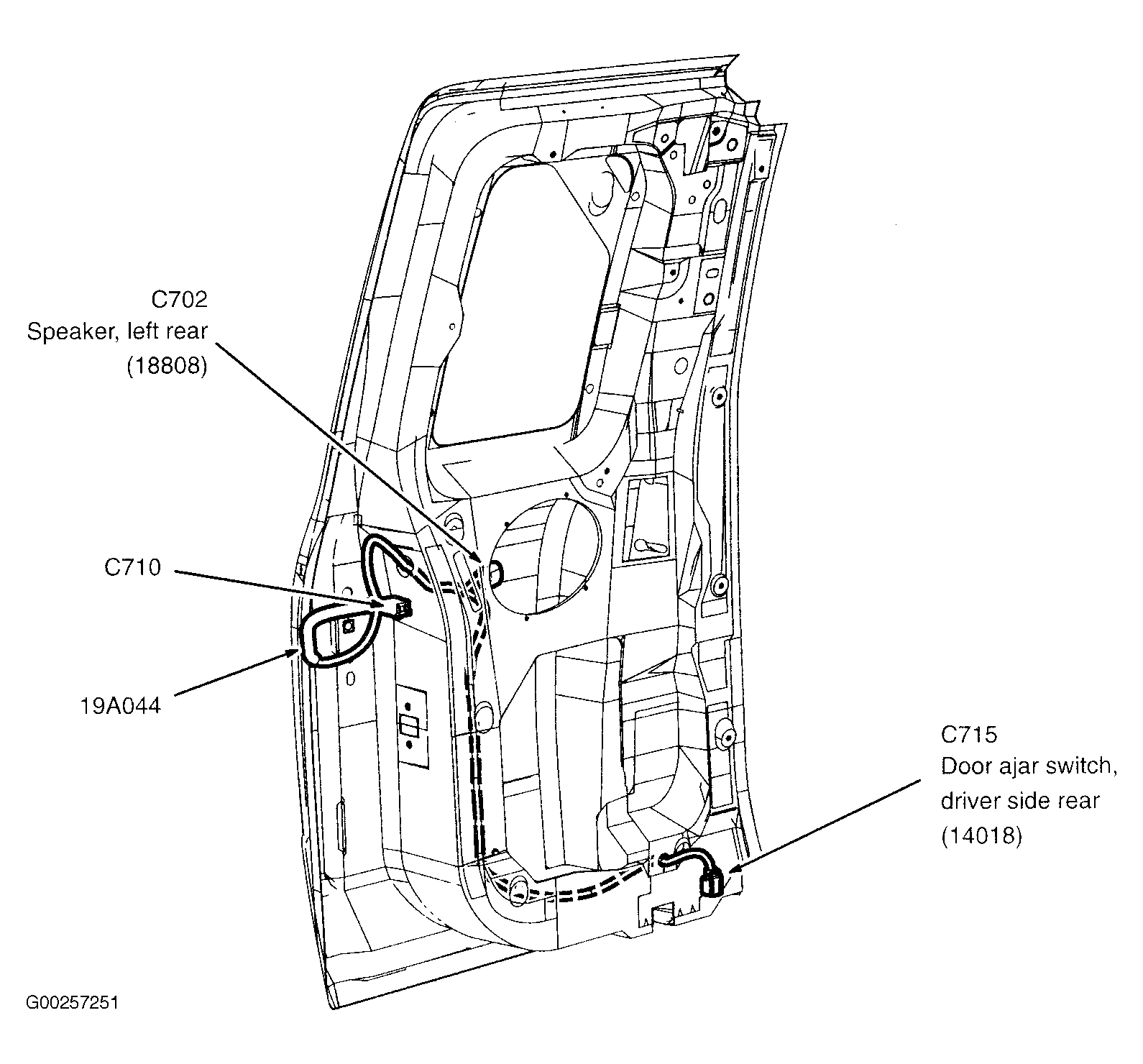

Fig 24: Left Rear Door

G00257251

Courtesy of FORD MOTOR CO.

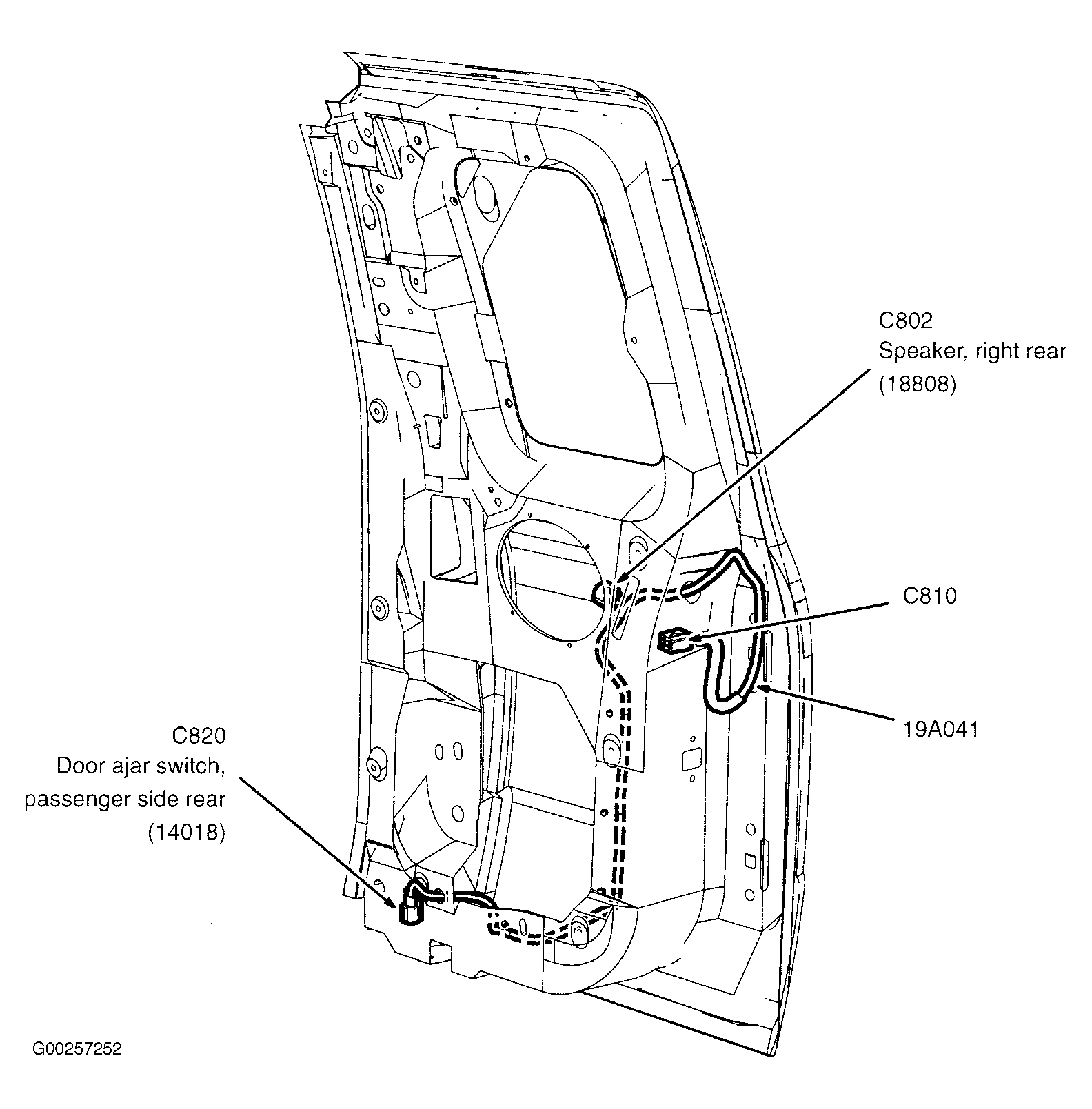

Fig 25: Right Rear Door

G00257252

Courtesy of FORD MOTOR CO.

Fig 26: Vehicle Floor

G00257253

Courtesy of FORD MOTOR CO.
