Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

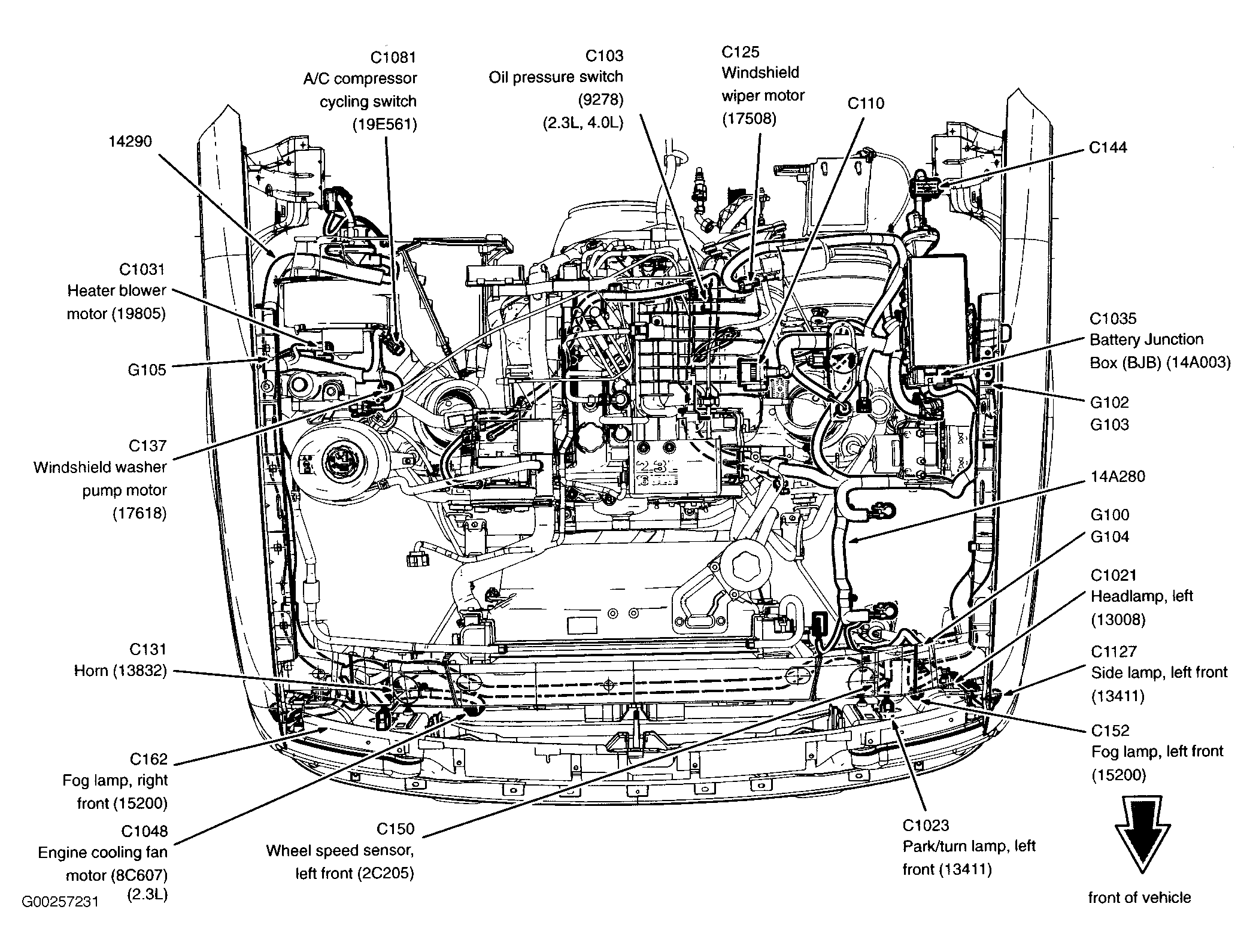

Battery Junction Box (BJB) At left rear side of engine compartment. See Figure .

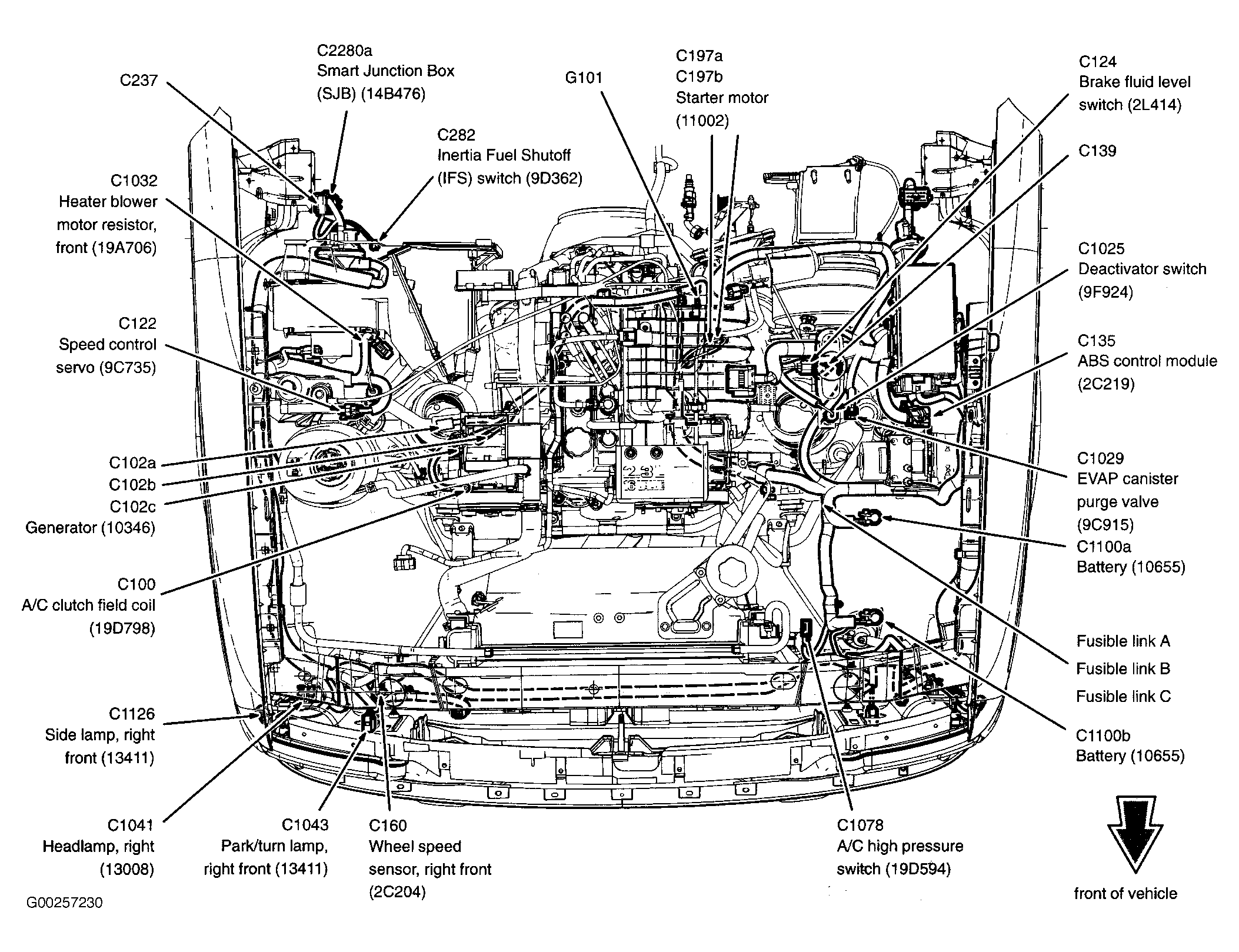

Smart Junction Box (SJB) Behind right side of dash. See Figure .
