Home >> Ford >> 2004 >> Mustang Mach 1, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Description And Operation >> Power Steering >> System View >> Steering System Components - 3.8L Engine

Steering System Components - 3.8L Engine

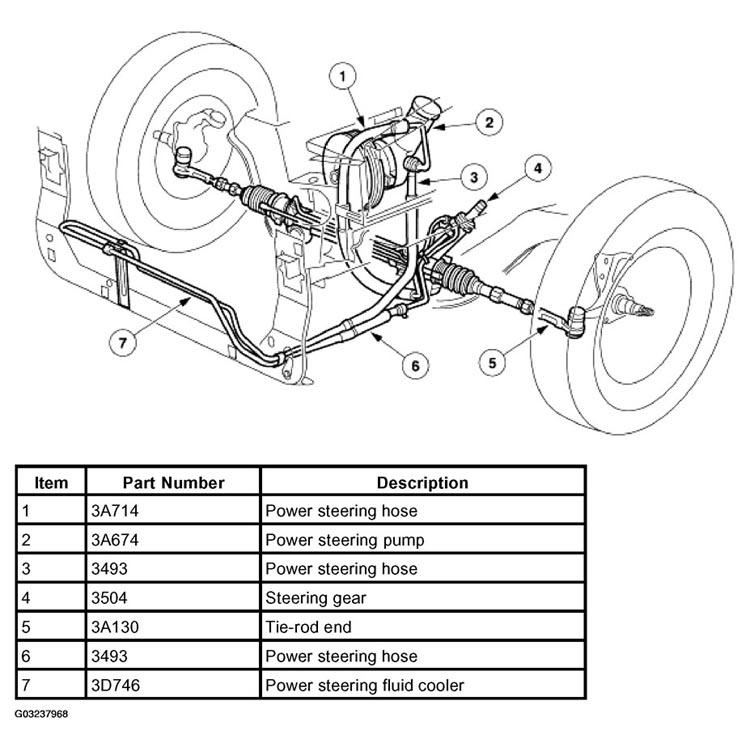

Fig 1: Identifying Steering System Components - 3.8L Engine

G03237968

Courtesy of FORD MOTOR CO.
