Push Rods - Inspection

    CAUTION: Do not attempt to straighten push rods.
  1. Check the ends of the push rods for nicks, grooves, roughness or excessive wear. Install new push rods as necessary. Refer to ENGINE- 3.8L & 3.9L for the procedure .
    • The push rods can be checked for straightness while they are installed in the engine by rotating them with the valve closed.
    • They also can be checked using a Dial Indicator with Bracketry.

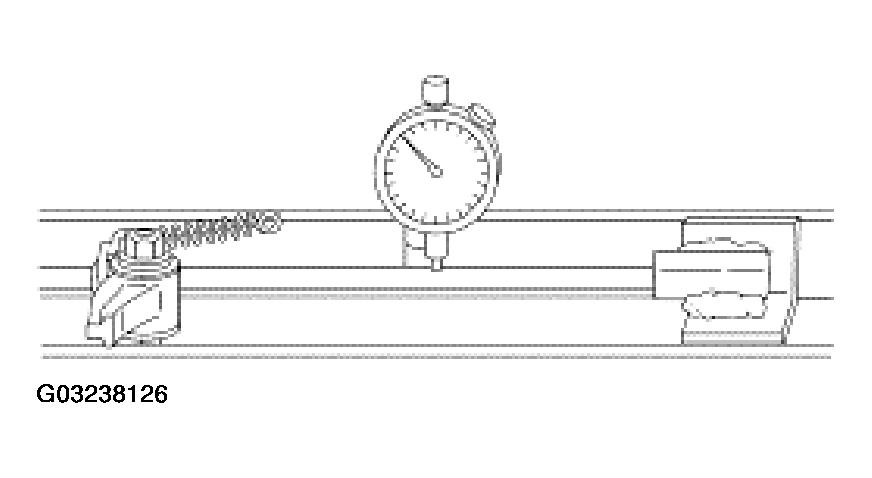

      Fig 1: Checking Push Rod Straightness
      G03238126Courtesy of FORD MOTOR CO.
  2. If the push rod is bent beyond specifications, install a new push rod. Refer to ENGINE- 3.8L & 3.9L for the procedure.
