Hydraulic Control Unit: Installation

    NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to BLEEDING BRAKE SYSTEM .

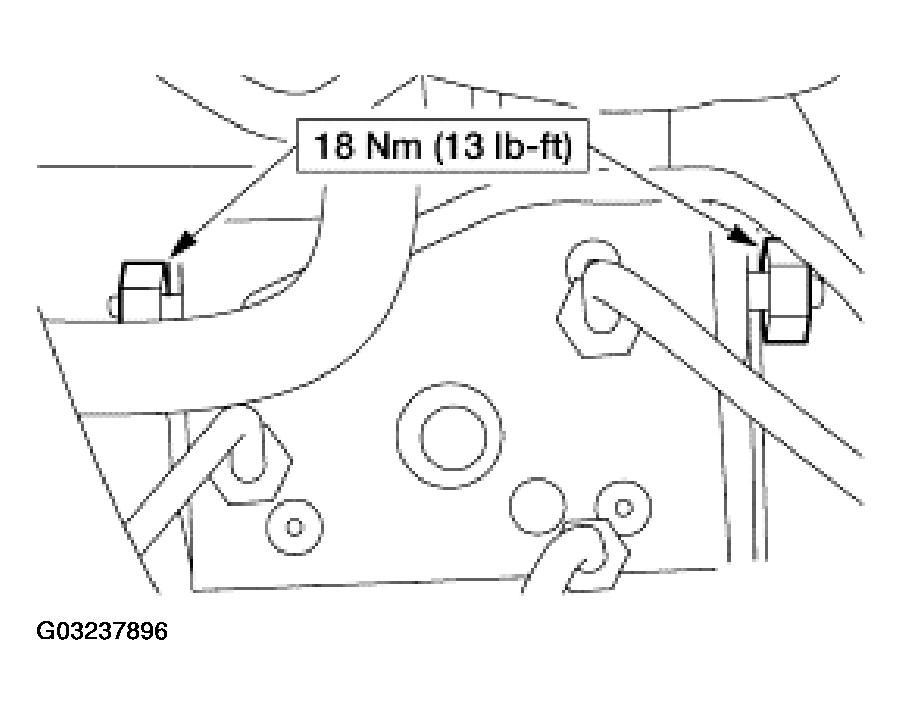

    Fig 1: Installing Hydraulic Control Unit (1 Of 2)
    G03237896Courtesy of FORD MOTOR CO.

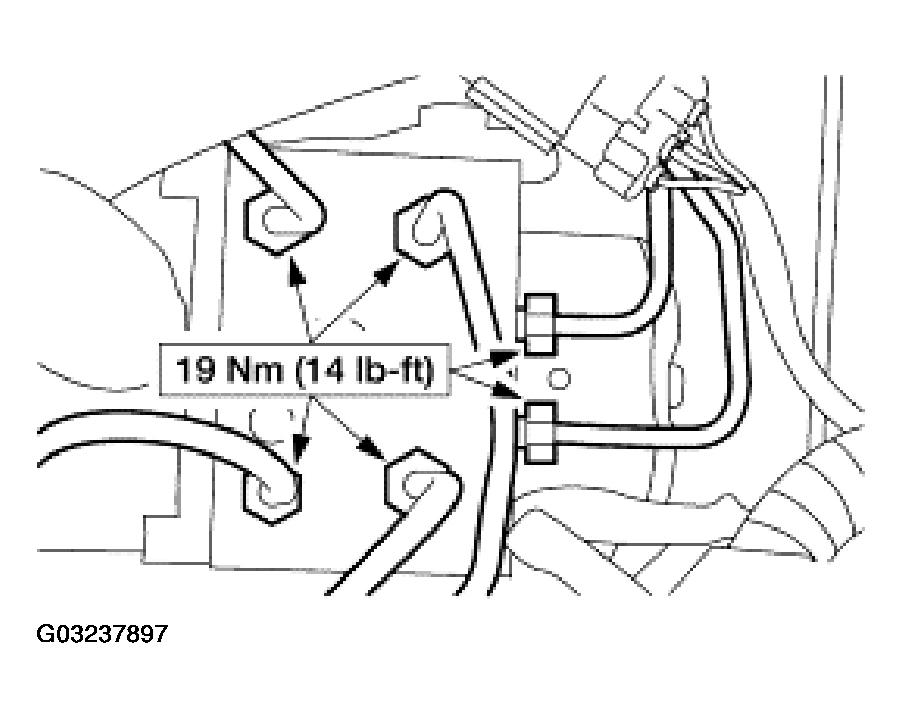

    Fig 2: Installing Hydraulic Control Unit (2 Of 2)
    G03237897Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
