Windshield Reseal

Material

All Vehicles

1. Remove the RH and LH windshield side garnish mouldings.
   • If equipped with a convertible top, remove the pin-type retainers.
     Fig 1: Removing RH And LH Windshield Side Garnish Mouldings (All Vehicles)

     Courtesy of FORD MOTOR CO.

Convertible

2. Remove the visor clip screws and the visor trim moulding.
   Fig 2: Removing Visor Clip Screws And Visor Trim Moulding (Convertible)

   Courtesy of FORD MOTOR CO.
3. Remove the screws and the LH and RH sun visors.
   • Disconnect the electrical connector(s).
     Fig 3: Removing Screws And LH And RH Sun Visors (Convertible)

     Courtesy of FORD MOTOR CO.

Coupe

4. Remove the LH and RH sun visors and clips
   • Remove the screws.
   • Remove the clips.
     Fig 4: Removing LH And RH Sun Visors And Clips (Coupe)

     Courtesy of FORD MOTOR CO.
5. Lower the front portion of the headliner and block with a suitable material.

All Vehicles

6. Remove the LH and RH windshield wiper pivot arms.
   1. Raise up on the pivot arms.
   2. Release the retainer tabs, and release the windshield wiper pivot arms.
      Fig 5: Removing LH And RH Windshield Wiper Pivot Arms (All Vehicles)

      Courtesy of FORD MOTOR CO.

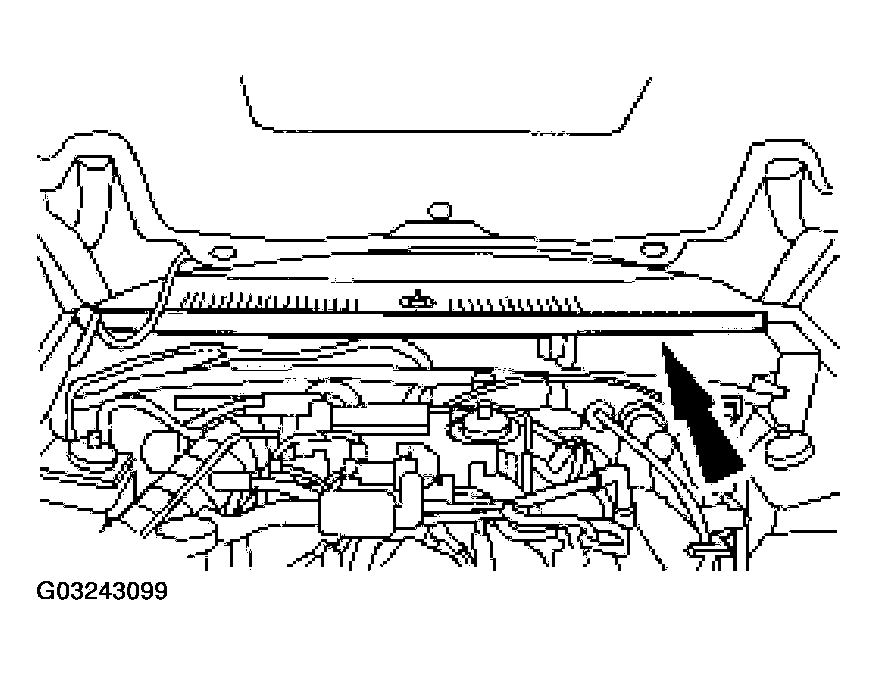

7. Remove the cowl grille weatherstrip.
   Fig 6: Removing Cowl Grille Weatherstrip (All Vehicles)

   Courtesy of FORD MOTOR CO.

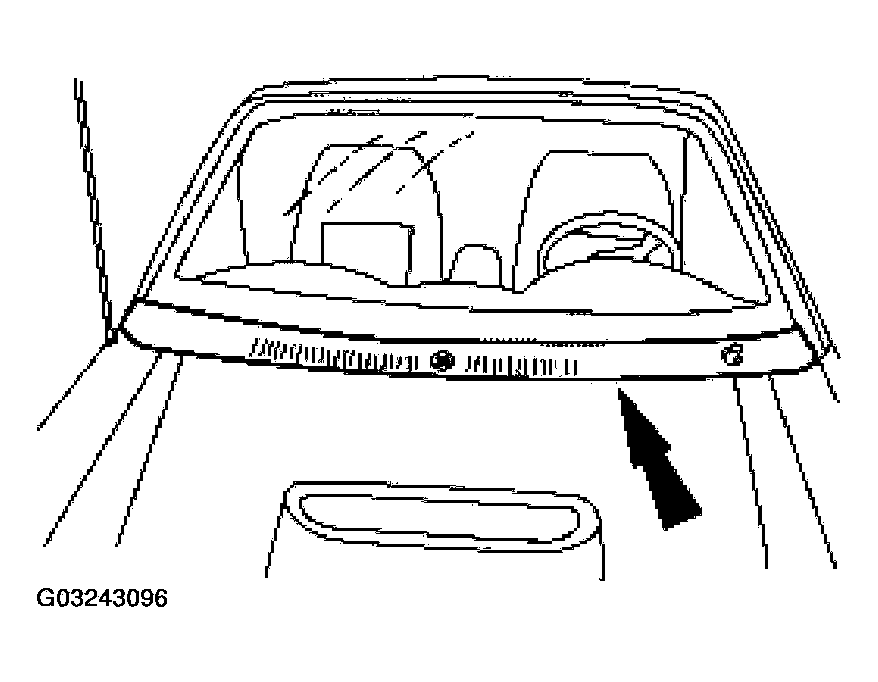

8. Remove the cowl grille.
   Fig 7: Removing Cowl Grille (All Vehicles)

   Courtesy of FORD MOTOR CO.
9. Clean the interior and exterior of the windshield glass surface with non-alcohol based glass cleaner.
10. Cut the urethane adhesive applicator tip to specification.
    Fig 8: Identifying Dimension For Cutting Urethane Adhesive Applicator

    Courtesy of FORD MOTOR CO.
NOTE: Use either a high-ratio, electric or battery-operated caulk gun that will apply the urethane with less effort and continuous bead.
NOTE: Make sure that all gaps in the urethane adhesive are smoothed into one continuous bead.
11. Apply urethane adhesive over top of the existing urethane adhesive.
    • Apply the urethane to the top and sides of the windshield from the interior of the vehicle.
    • Apply the urethane to the bottom of the windshield from the exterior of the vehicle.
NOTE: The urethane adhesive must cure for a minimum of 1 hour before testing for air or water leaks.
12. After the urethane has cured, check the windshield seal for air or water leaks through the urethane bead and add urethane adhesive as necessary.

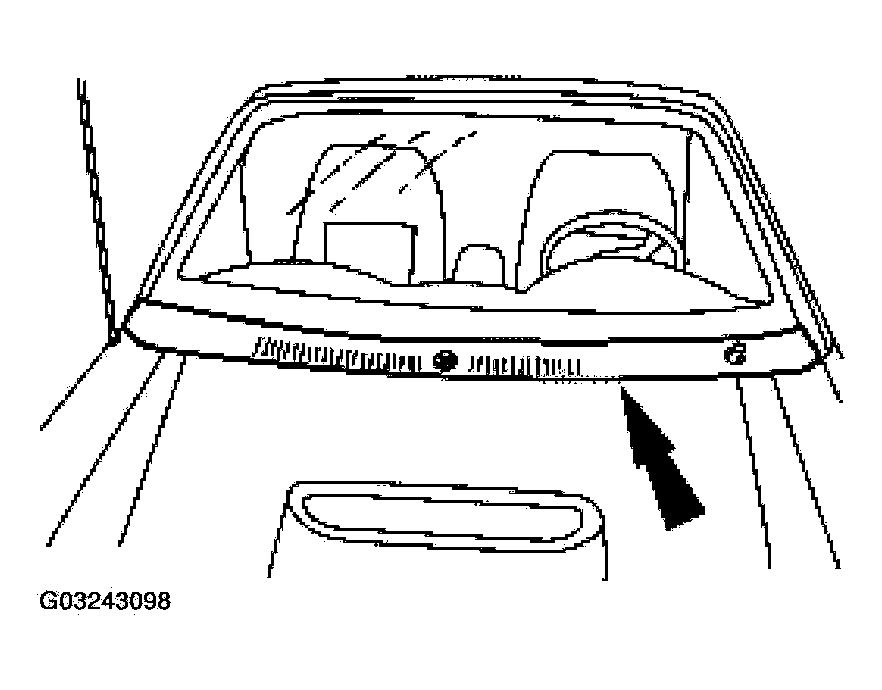

13. Install the cowl grille.
    Fig 9: Installing Cowl Grille (All Vehicles)

    Courtesy of FORD MOTOR CO.
14. Install the cowl grille weatherstrip.
    Fig 10: Installing Cowl Grille Weatherstrip (All Vehicles)

    Courtesy of FORD MOTOR CO.
15. Install the LH and RH windshield wiper pivot arms.

Coupe

16. Position the front portion of the headliner.
17. Position the LH and RH sun visors and clips and install the screws.
    Fig 11: Installing LH And RH Sun Visors And Clips (Coupe)

    Courtesy of FORD MOTOR CO.

Convertible

18. Position the LH and RH sun visors and install the screws.
    • Connect the electrical connector(s).
      Fig 12: Installing LH And RH Sun Visors (Convertible)

      Courtesy of FORD MOTOR CO.
19. Install the visor trim moulding and the visor clip screws.
    Fig 13: Installing Visor Trim Moulding And Visor Clip Screws (Convertible)

    Courtesy of FORD MOTOR CO.

All Vehicles

20. Install the RH and LH windshield side garnish moulding.
    • If equipped with a convertible top, install the pin-type retainers.
      Fig 14: Installing RH And LH Windshield Side Garnish Moulding (All Vehicles)

      Courtesy of FORD MOTOR CO.
21. Adjust the wiper blade and pivot arms as necessary. For additional information, refer to WIPERS AND WASHERS .
