Extension Housing Seal: Installation

    NOTE: When installing the new seal, make sure that the drain hole in the seal is in the 6 o'clock position.

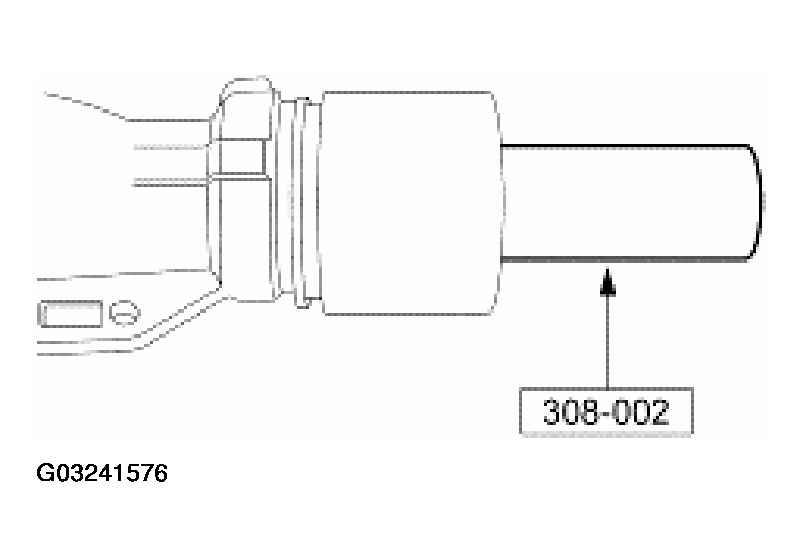

    Fig 1: Installing A New Extension Housing Seal
    G03241576Courtesy of FORD MOTOR CO.
  1. Using the special tool, install a new extension housing seal.
    2. NOTE: The output shaft and the driveshaft are a balanced assembly.
  2. Install the driveshaft.
    • Align all the index marks and position the driveshaft on the transmission.
    • Install the driveshaft.

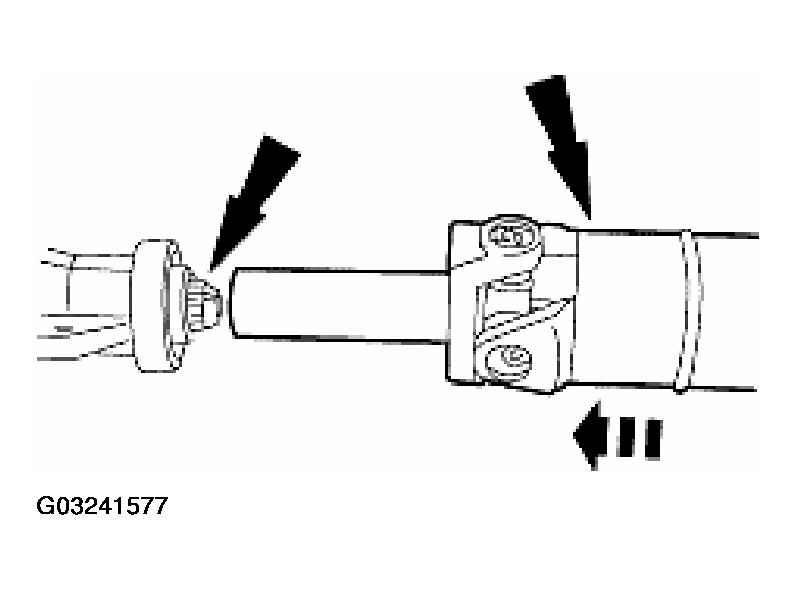

      Fig 2: Installing Driveshaft
      G03241577Courtesy of FORD MOTOR CO.
    3. NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

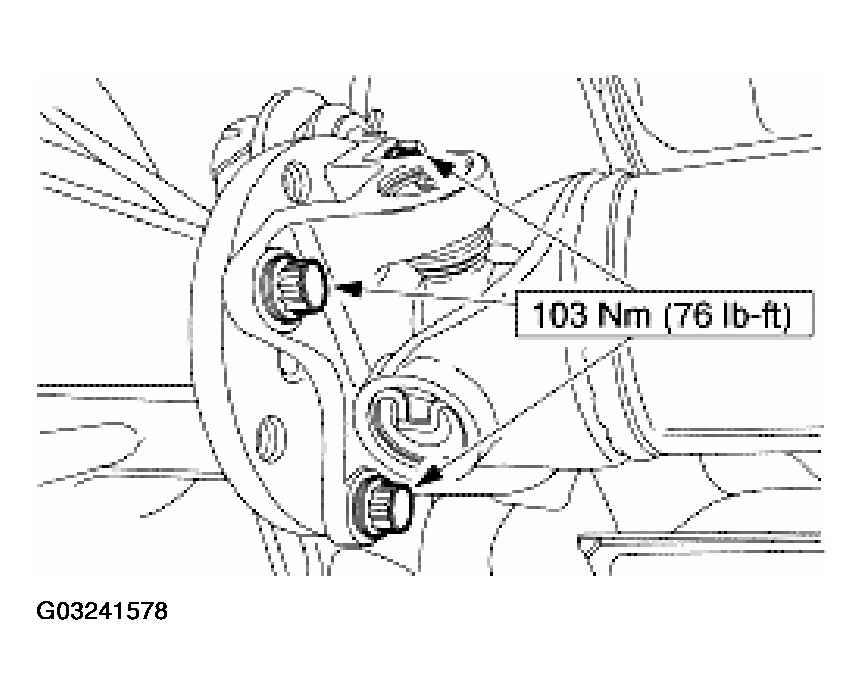

    Fig 3: Installing Driveshaft Yoke To Flange
    G03241578Courtesy of FORD MOTOR CO.
  3. Install the 4 retaining bolts.
  4. Check the level of the transmission fluid, add clean automatic transmission fluid as necessary.
