Brake Shift Interlock Actuator: Installation

  1. To install, reverse the removal procedure.

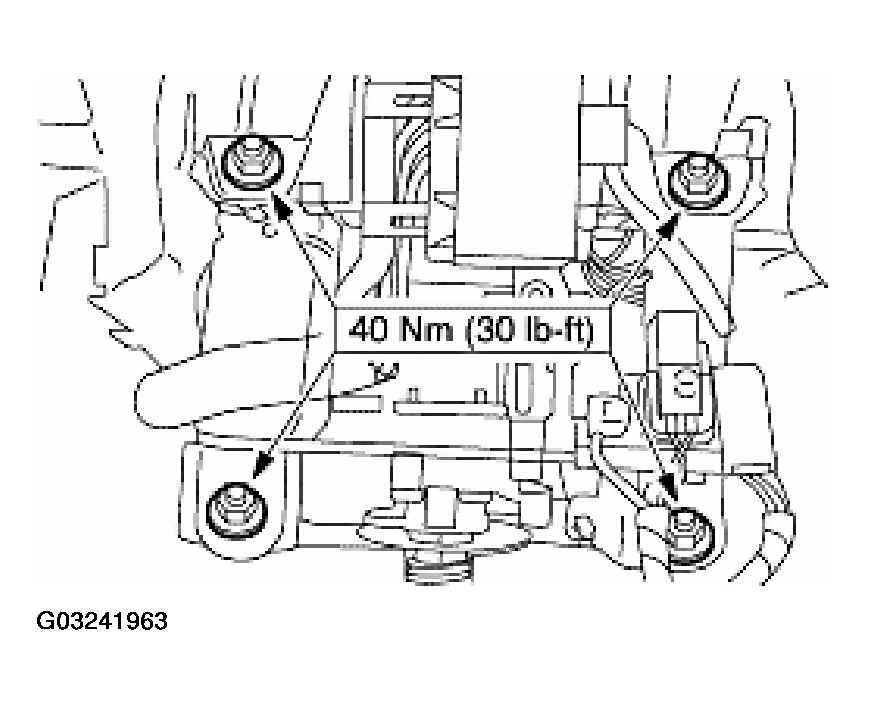

    Fig 1: Installing Steering Column Nuts
    G03241963Courtesy of FORD MOTOR CO.

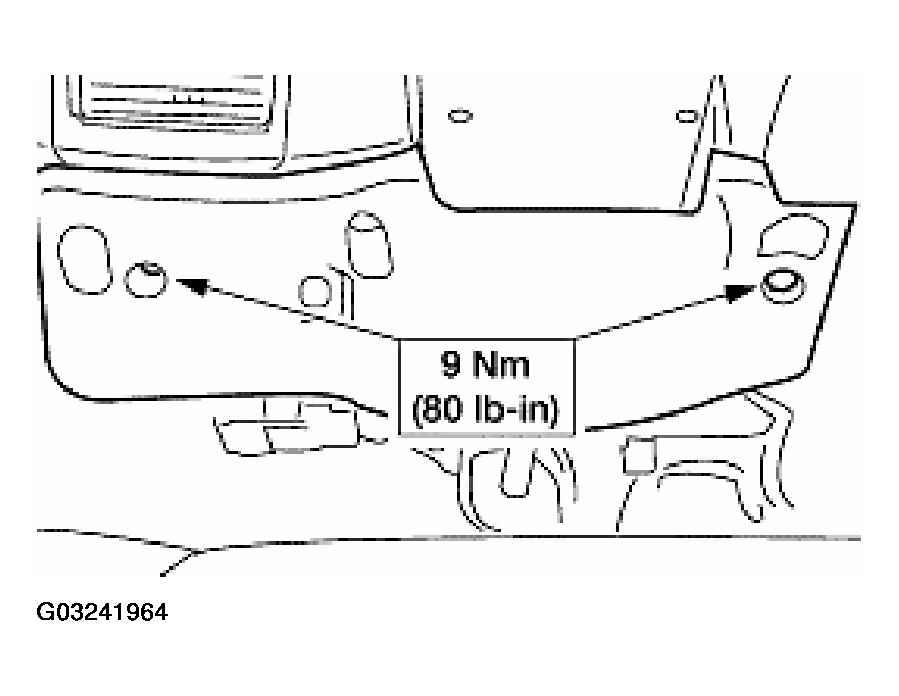

    Fig 2: Installing Instrument Panel Reinforcement
    G03241964Courtesy of FORD MOTOR CO.

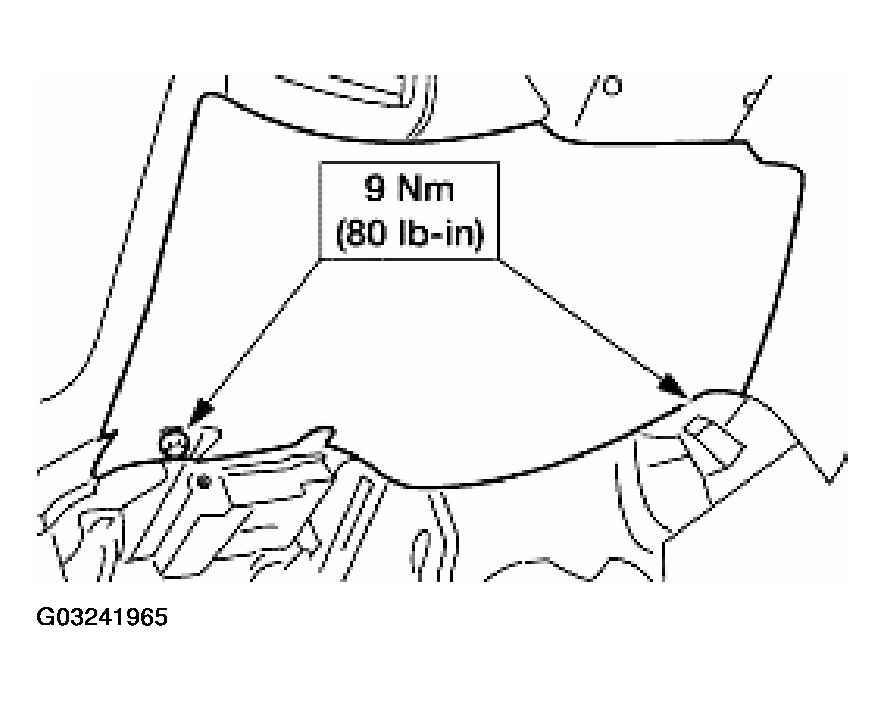

    Fig 3: Installing Instrument Panel Steering Column Cover
    G03241965Courtesy of FORD MOTOR CO.
