Steering System Components - 3.8L Engine (CII Power Steering Pump)

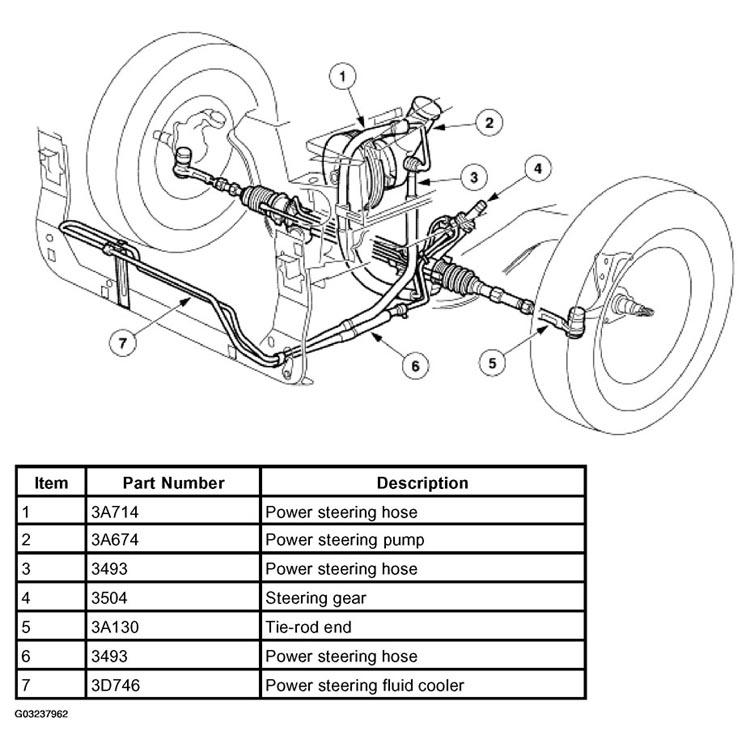

Fig 1: Identifying Steering System Components - 3.8L Engine - CII Power Steering Pump

G03237962

Courtesy of FORD MOTOR CO.
