Home >> Ford >> 2004 >> Mustang GT, 2D Coupe, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Accessories Control Systems >> Component Testing >> Component Testing >> MULTIFUNCTION Switch, Wiper/Washer Portion

MULTIFUNCTION Switch, Wiper/Washer Portion

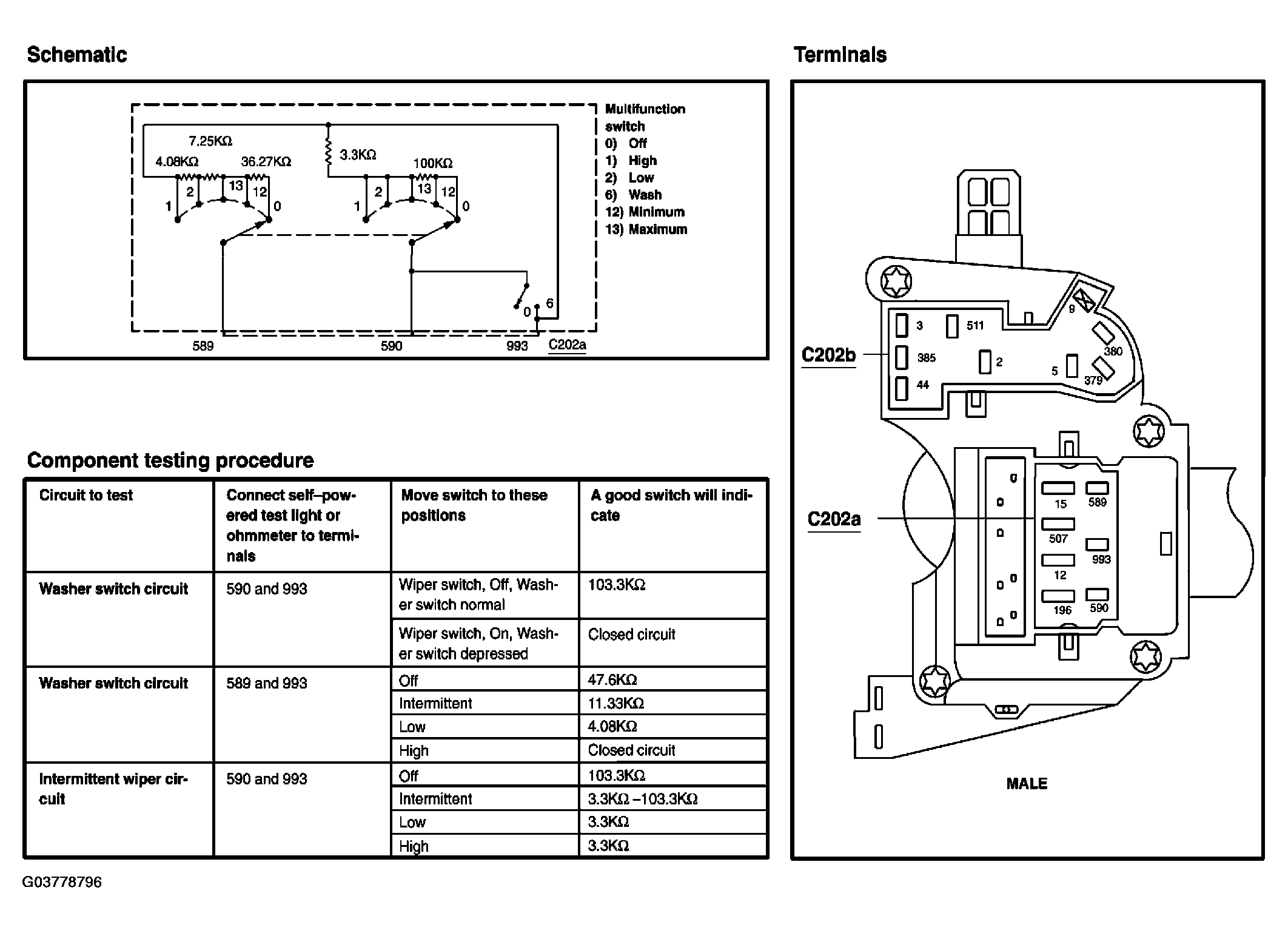

Fig 1: Testing Multifunction Switch, Wiper/Washer Portion

G03778796

Courtesy of FORD MOTOR CO.
