Overdrive Servo: Removal

  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
    2. NOTE: If the tool is not available, extreme care must be taken. Spring pressure will force overdrive servo piston assembly out of case. Case bore damage may result from trying to pry on overdrive servo internal retaining ring.

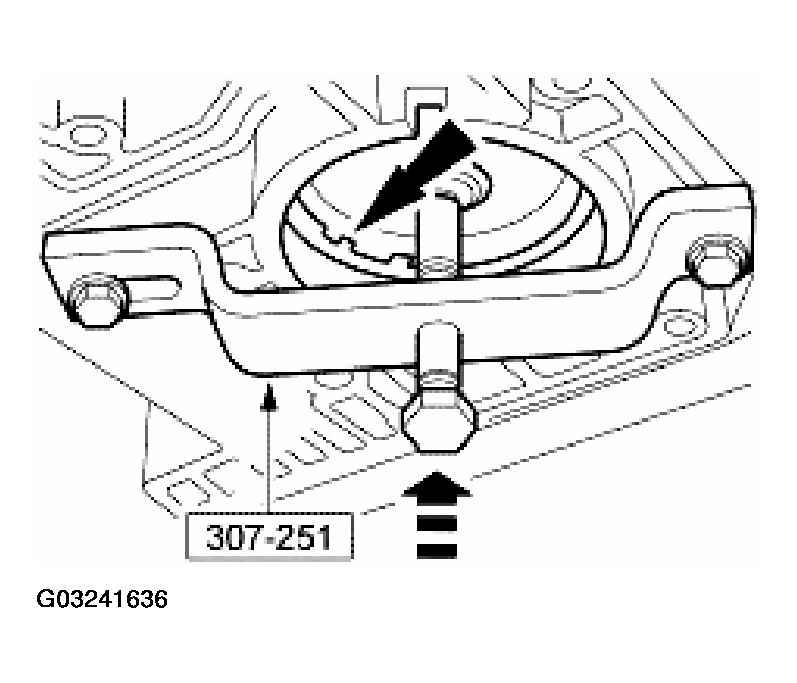

    Fig 1: Removing Overdrive Servo Retaining Ring
    G03241636Courtesy of FORD MOTOR CO.
  2. Using the special tool, compress the servo spring to remove the overdrive servo retaining ring.
  3. Remove the overdrive servo piston and return spring.

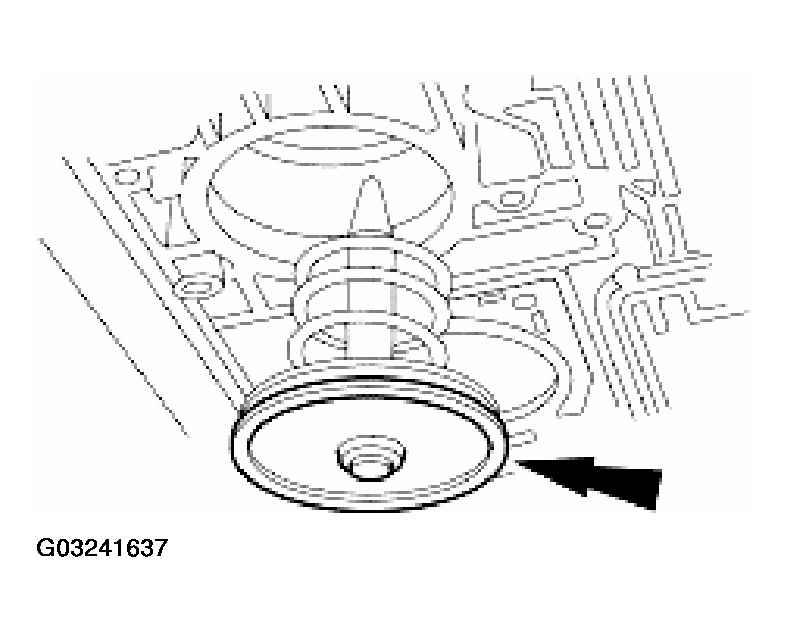

    Fig 2: Removing Overdrive Servo Piston And Return Spring
    G03241637Courtesy of FORD MOTOR CO.
