Brake Codes

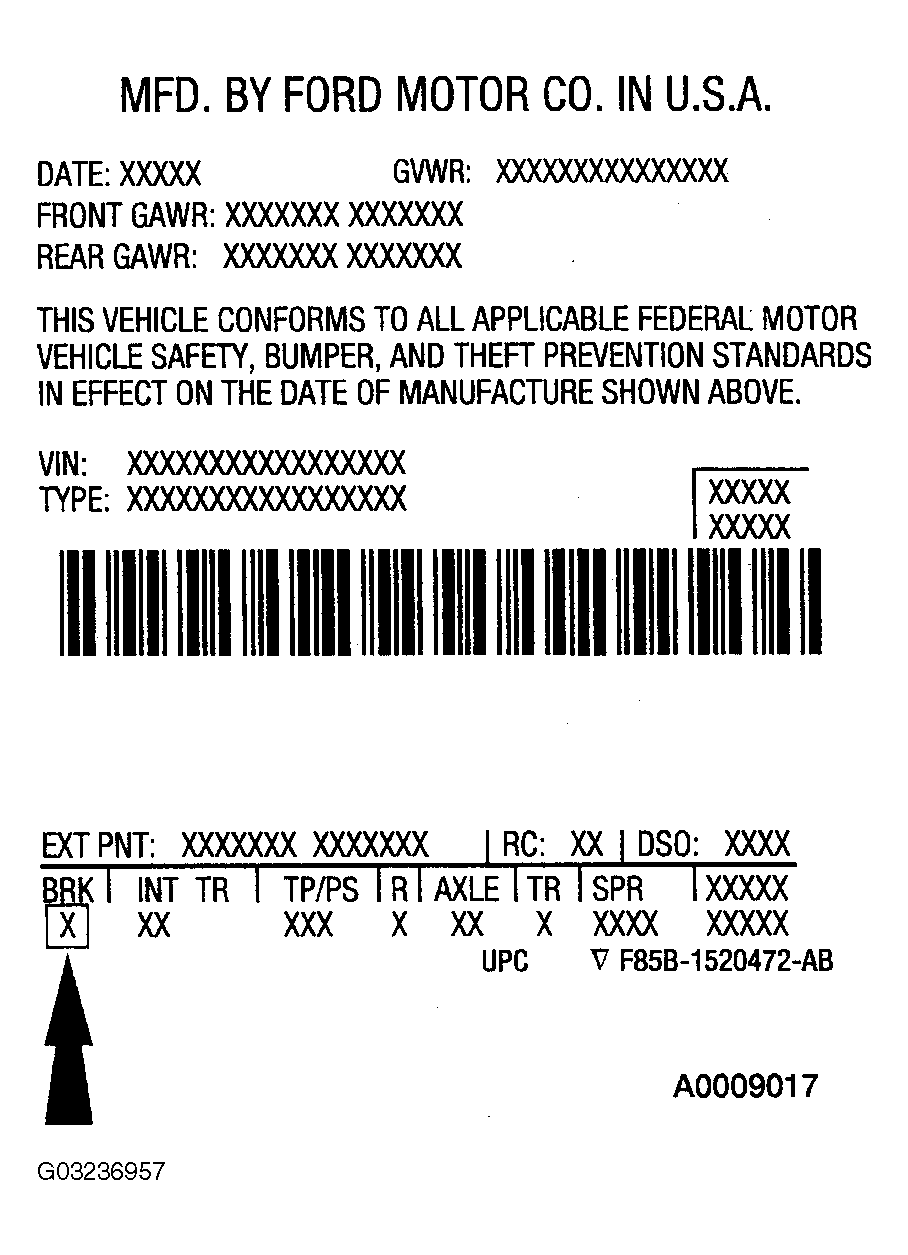

Fig 1: Locating Brake Codes

Courtesy of FORD MOTOR CO.

The brake type codes are:

• 2 - Four-wheel disc with anti -lock brake system (ABS)
• 3 - Traction control
• 5 - Four-wheel disc with anti -lock brake system (ABS) and traction control
