Component Testing

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

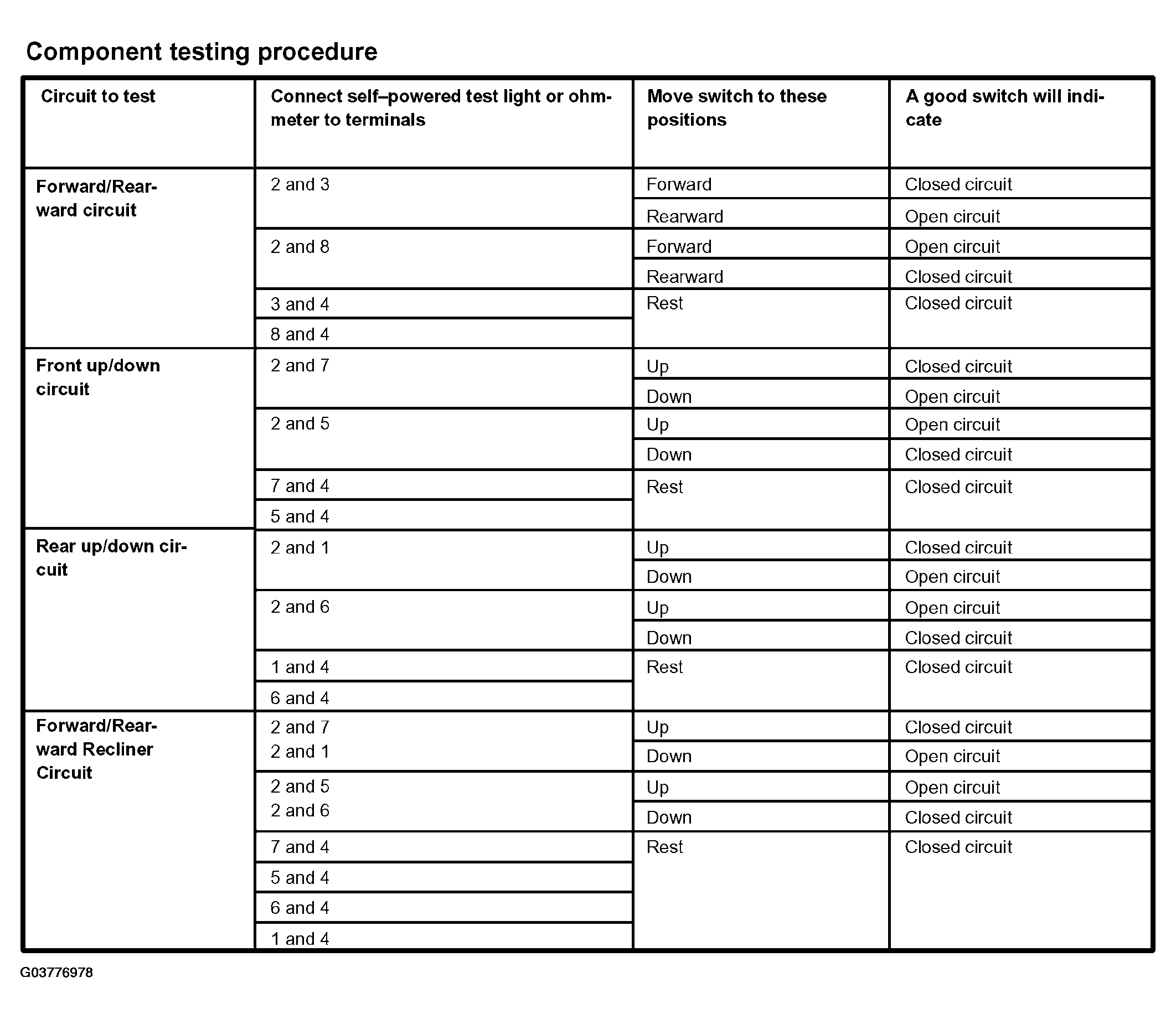

Fig 1: Testing Seat Adjust Switch, Driver Side Front (2 Of 2)
G03776978Courtesy of FORD MOTOR CO.
