Master Window/Door Lock/Unlock Switch, Coupe

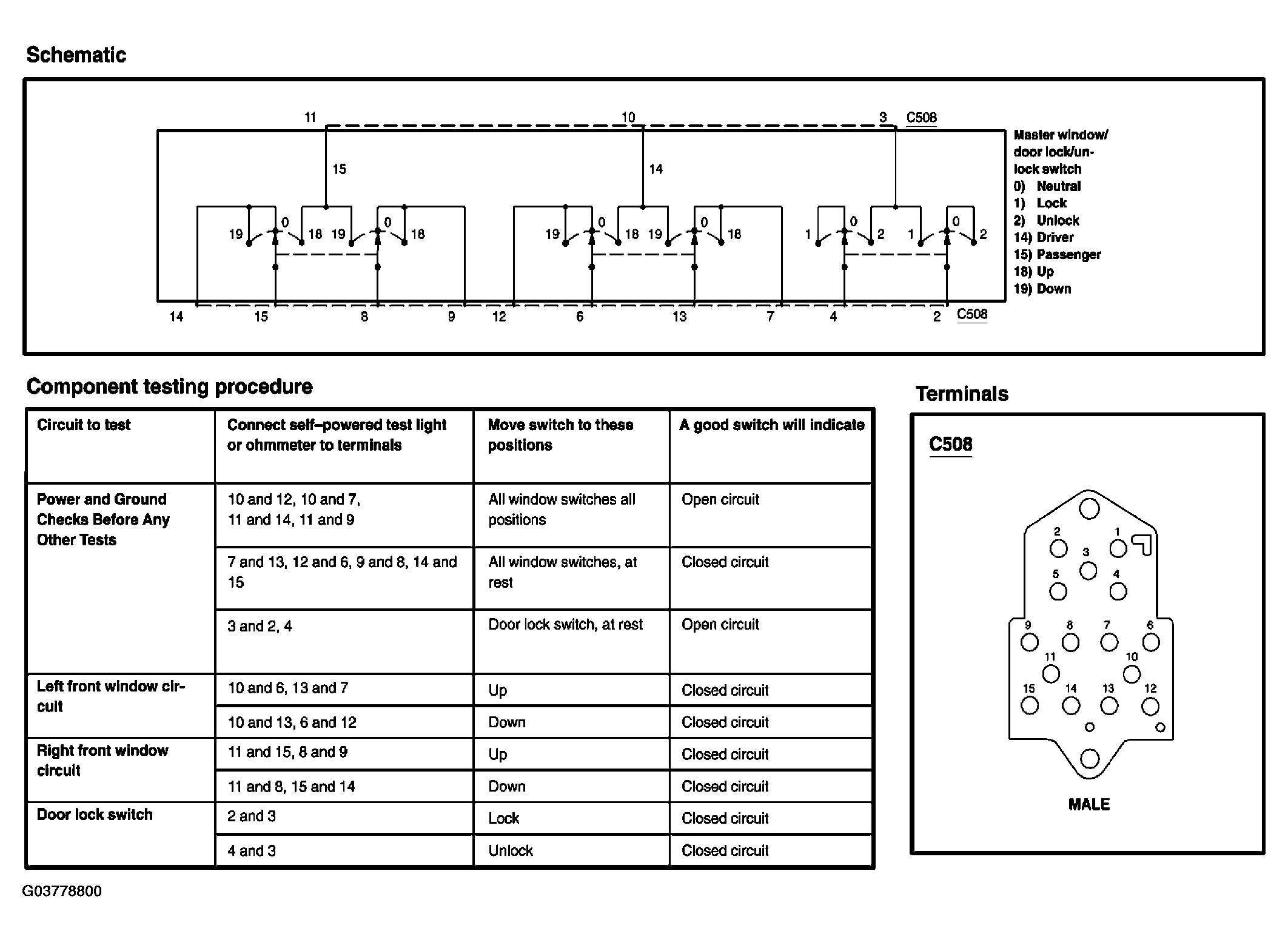

Fig 1: Testing Master Window/Door Lock/Unlock Switch, Coupe

G03778800

Courtesy of FORD MOTOR CO.
