Connecting Rod - Piston Pin Side Clearance

Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
- Refer to ENGINE- 3.8L & 3.9L or ENGINE- 4.6L (2V) or ENGINE- COBRA 4.6L (4V) or ENGINE - MACH1 4.6L (4V) for the procedure .
- If out of specification, install new components as necessary. Refer to ENGINE- 3.8L & 3.9L or ENGINE- 4.6L (2V) or ENGINE- COBRA 4.6L (4V) or ENGINE - MACH1 4.6L (4V) for the procedure .

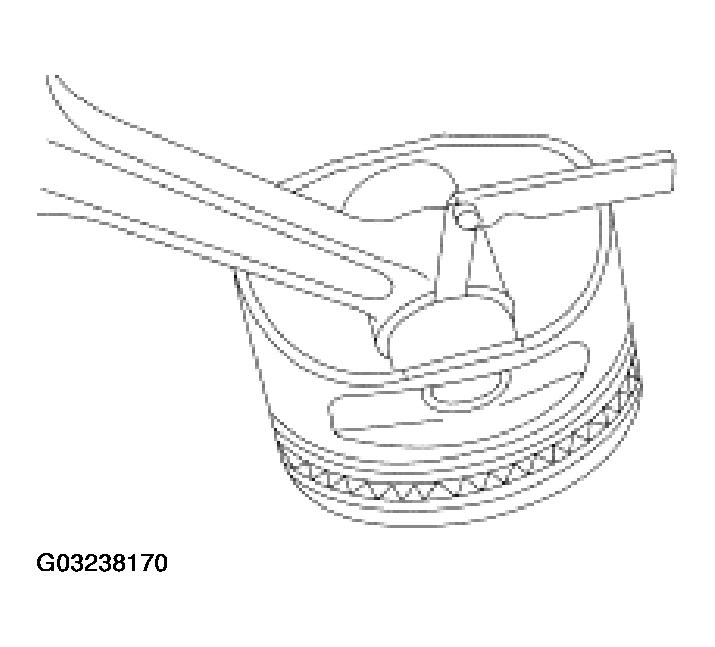

  Fig 1: Measuring Clearance Between Connecting Rod And Piston
  Courtesy of FORD MOTOR CO.
