Removal And Installation

  1. Remove the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  2. Remove the parts in the order indicated in the following illustration and table.

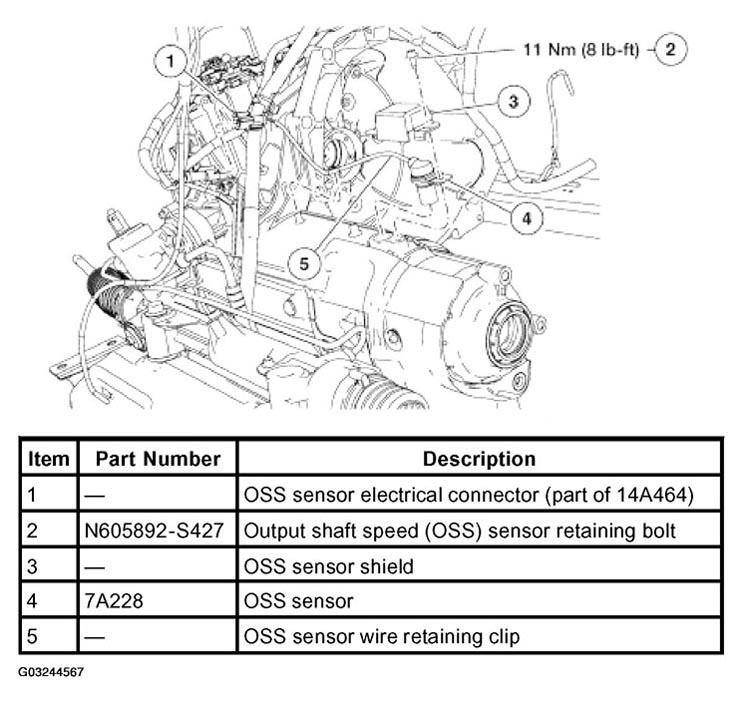

    Fig 1: Output Shaft Speed (OSS) Sensor Removal Sequence
    G03244567Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
