Coast Band Servo

    NOTE: Inspect the seals on the coast servo piston, rod and the cover for damage. If the seals are damaged a new piston, rod and the coast servo cover are installed as an assembly.
  1. Inspect the seals.

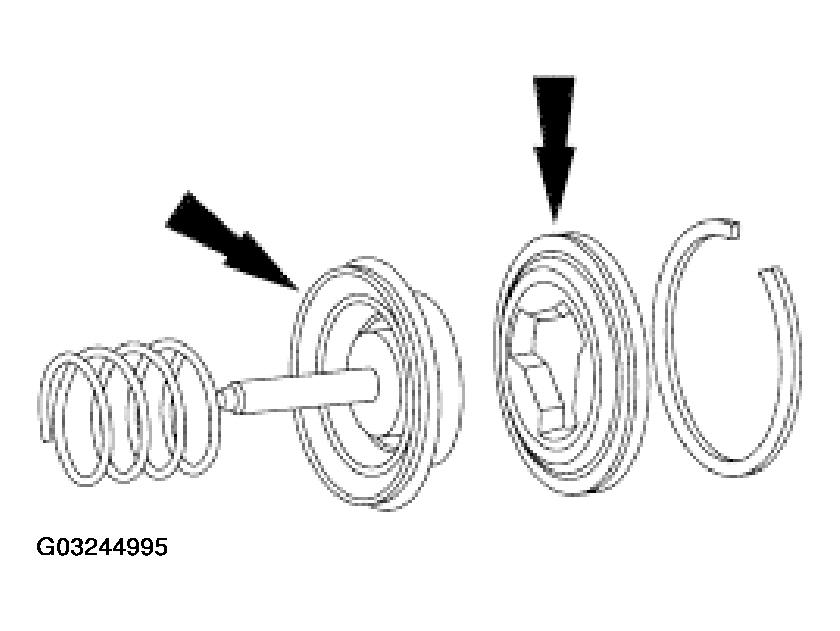

Fig 1: Inspecting Seals
G03244995Courtesy of FORD MOTOR CO.
