Home >> Ford >> 2004 >> Freestar SES >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Positive Crankcase Ventilation (PCV) Valve >> Notes

Positive Crankcase Ventilation (PCV) Valve: Notes

  1. Remove the parts in the order indicated in the following illustration.

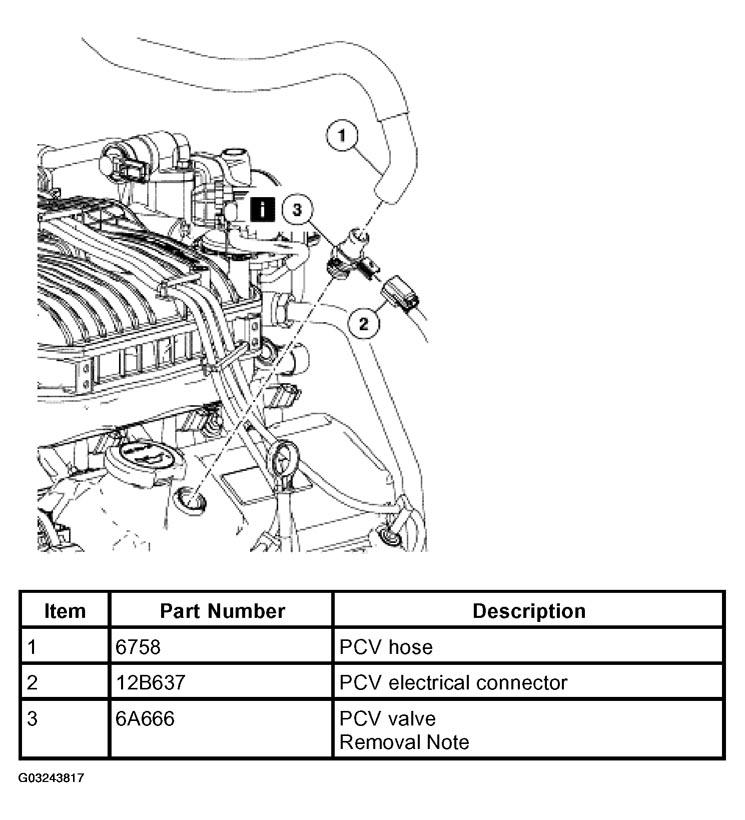

    Fig 1: PCV Valve Parts Removal Sequence
    G03243817Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
