Push Rods - Inspection

    CAUTION: Do not attempt to straighten push rods.

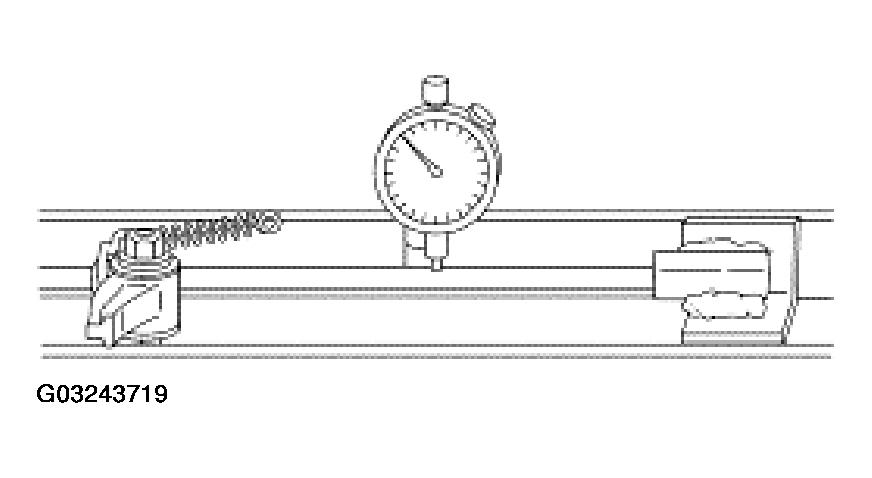

    Fig 1: Checking Ends Of Push Rods For Wear
    G03243719Courtesy of FORD MOTOR CO.
  1. Check the ends of the push rods for nicks, grooves, roughness or excessive wear. Install new push rods as necessary. Refer to the ENGINE - 3.9L & 4.2L for the procedure .
    • The push rods can be checked for straightness while they are installed in the engine by rotating them with the valve closed.
    • They also can be checked using a Dial Indicator with Bracketry.
  2. If the push rod is bent beyond specifications, install a new push rod. Refer to the ENGINE - 3.9L & 4.2L for the procedure .
