Engine - Upper Components

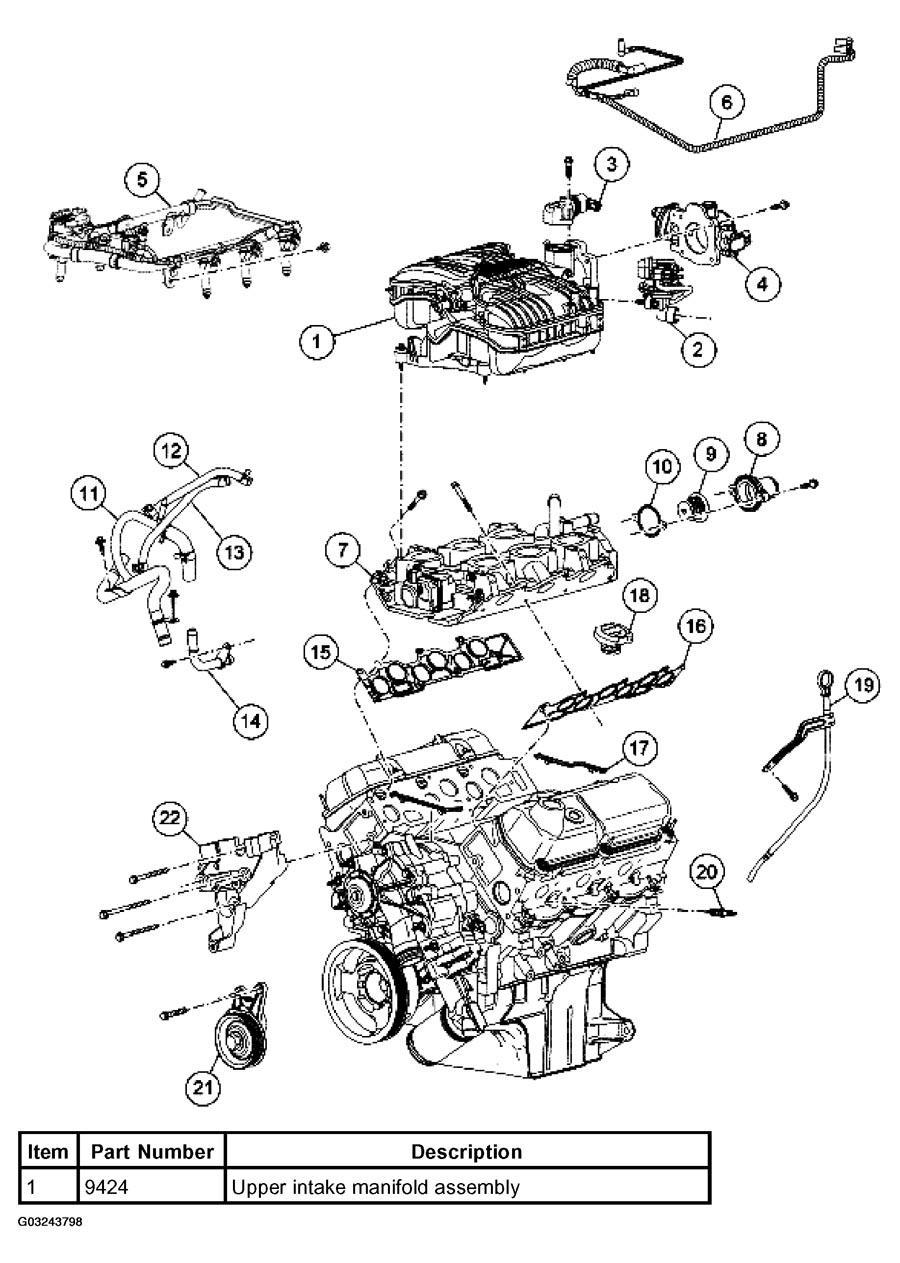

Fig 1: Identifying Engine - Upper Components (Item 1)

G03243798

Courtesy of FORD MOTOR CO.

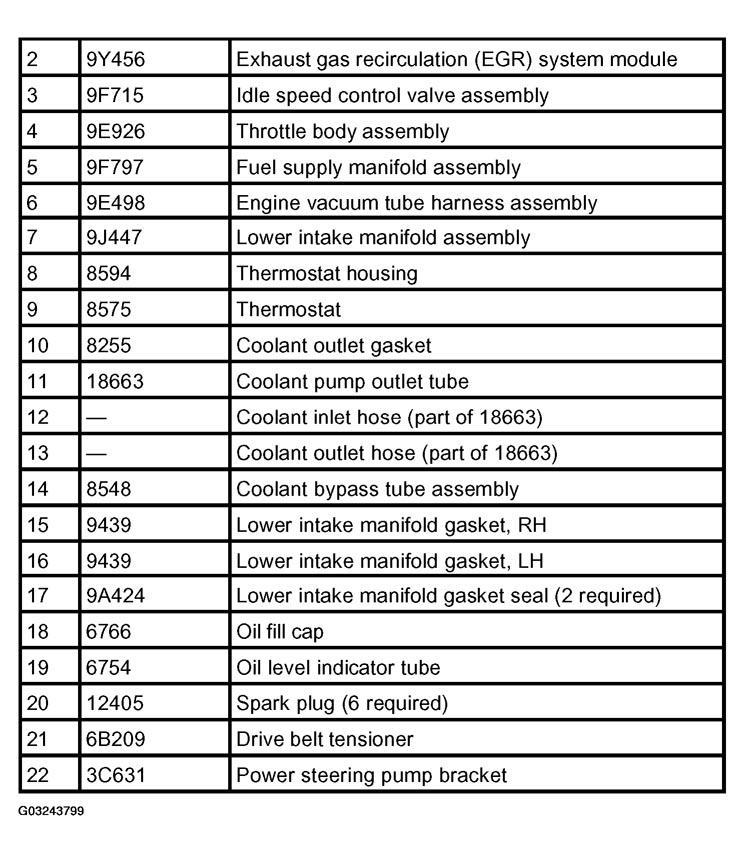

Fig 2: Identifying Engine - Upper Components (Items 2-22)

G03243799

Courtesy of FORD MOTOR CO.
