Removal And Installation: Notes

NOTE: Vehicles that are equipped with a trailer tow package will have this type of a cooling system.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

Parts	Steps
Auxiliary transmission fluid cooler	7-11
Transmission fluid cooler tubes	1-7

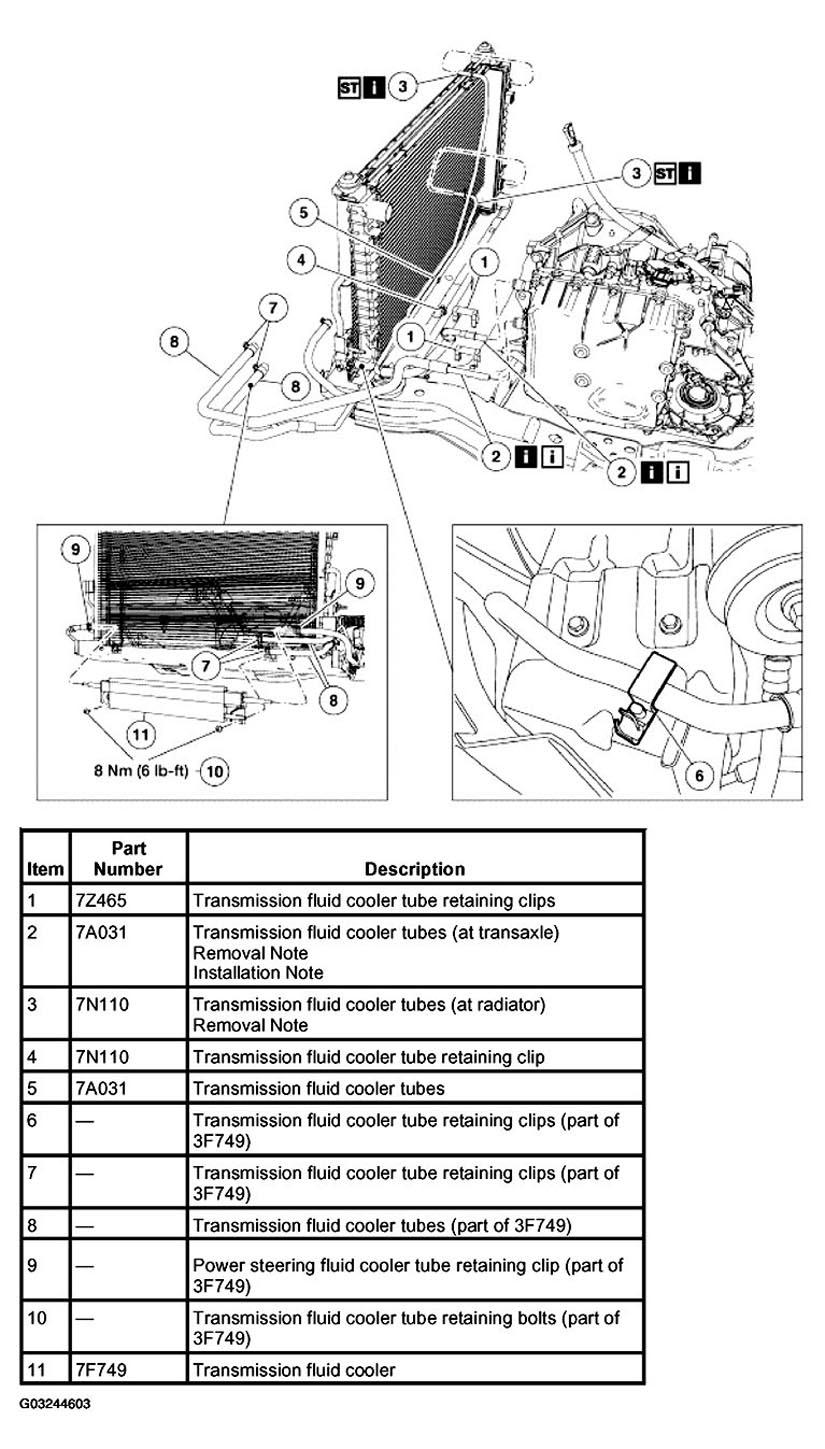

Fig 1: Auxiliary Transmission Fluid Cooler Removal Sequence

Courtesy of FORD MOTOR CO.
