Item 1: Shock Absorber-To-Upper Mount Nut Disassembly Note

  1. Remove the strut and spring assembly top shaft retaining nut.
    • Position a suitable pass-through socket wrench onto the strut shaft top retaining nut.
    • Place a 10-mm six point deep well socket on top of the strut shaft.
    • Remove the strut shaft while holding the retaining nut in place.

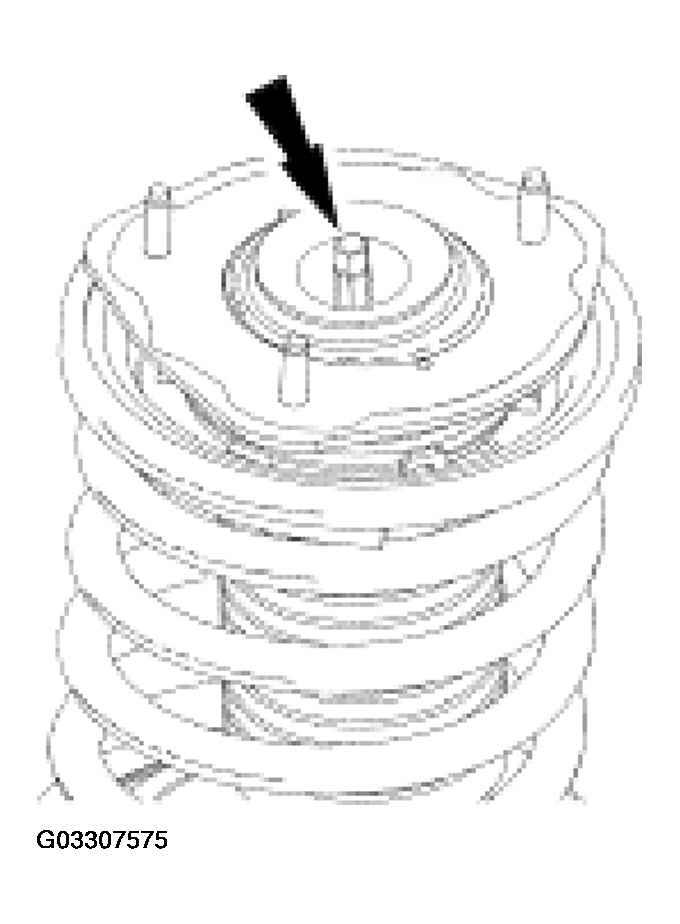

    Fig 1: Removing Strut And Spring Assembly Top Shaft Retaining Nut
    G03307575Courtesy of FORD MOTOR CO.
