Item 6: Spindle Tie-Rod Assembly Note

    CAUTION: To resist rotation and prevent damage to the steering gear during removal of the spindle tie-rods, center the steering gear and position the rack gear in a soft-jawed vice.
  1. Install the spindle tie-rod.

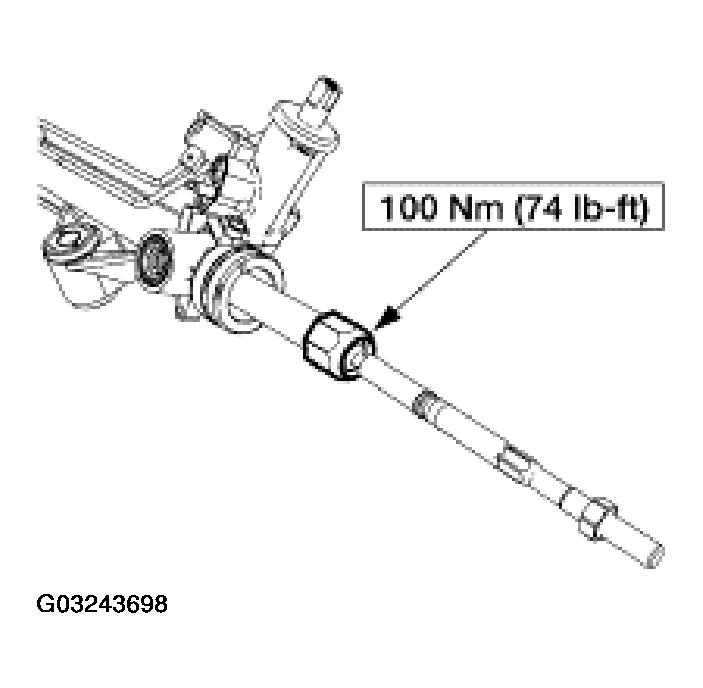

Fig 1: Installing Spindle Tie-Rod
G03243698Courtesy of FORD MOTOR CO.
