Front Ho2S Monitor

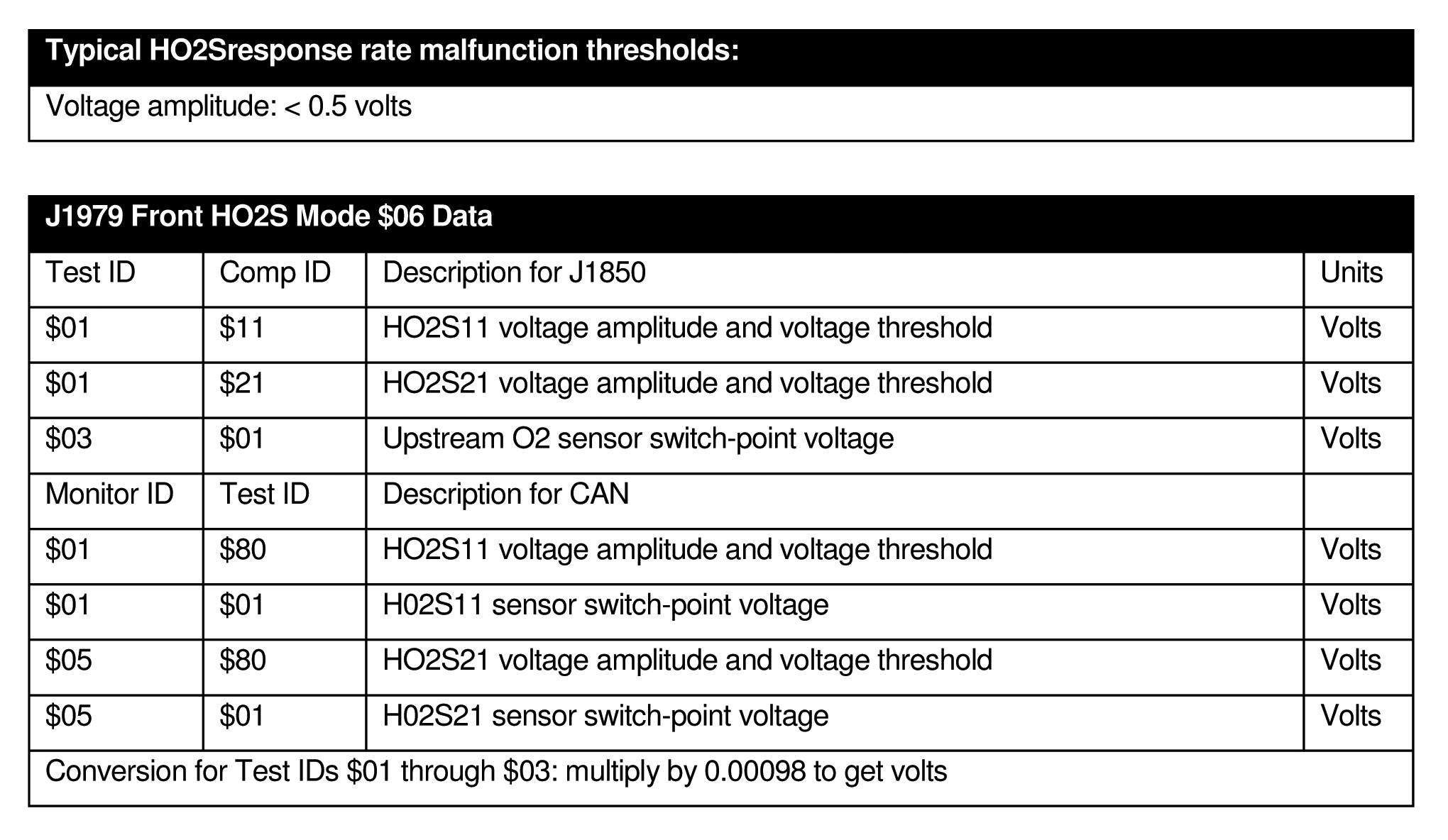

Fig 1: Mode $06 Data For Front HO2S Monitor

G00152300

Courtesy of FORD MOTOR CO.
