Fuel Pump Driver Module (FPDM)

  1. Remove the LH lower B-piller trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the parts in the order indicated in Fig 1.

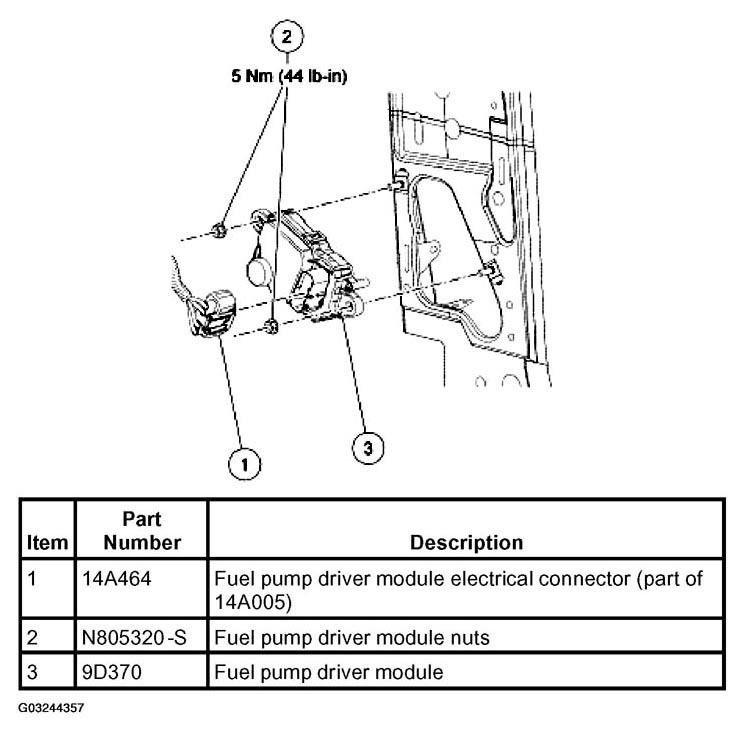

    Fig 1: Fuel Pump Driver Module (FPDM) Parts Removal Sequence
    G03244357Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
