Inertia Fuel Shutoff (IFS) Switch

  1. Remove the jack access cover on the RH side interior rear quarter trim panel.
  2. Remove the parts in the order indicated in the following illustration and table.

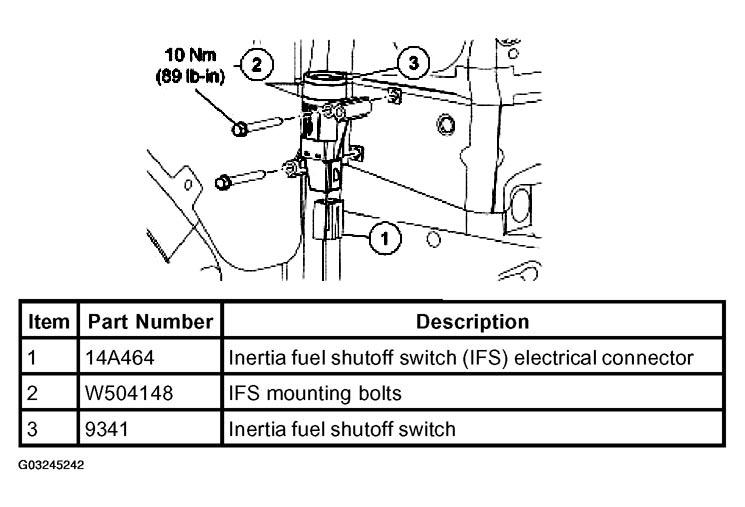

    Fig 1: Removing Inertia Fuel Shutoff (IFS) Switch
    G03245242Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
